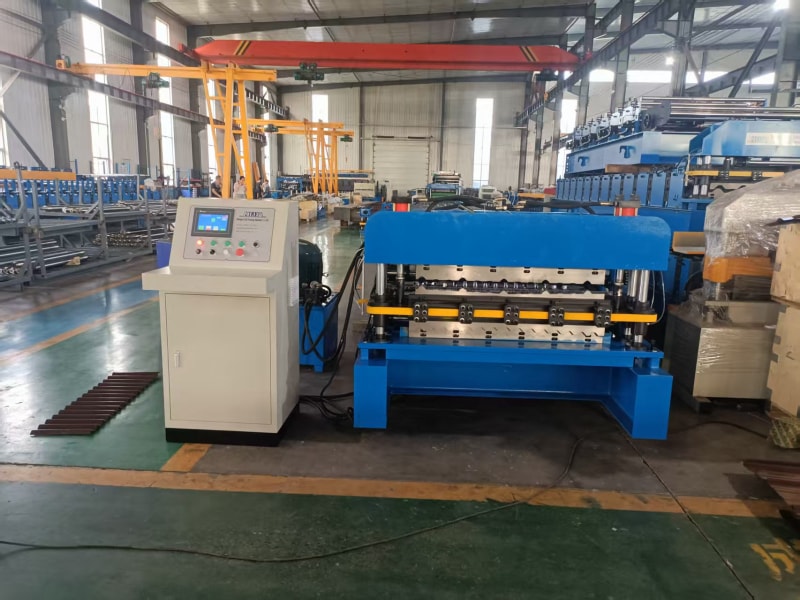

High Quality Double layer Ag Panel and Corrugated Profile Roofing Sheet Machine Sellls Well in Canada
Product Description：
This double layer roofing machine features flexible dual-profile production capability, enabling precise processing of two mainstream products: Ag panel and corrugated roof tiles. Specifically, Ag panels, with their regular profile and excellent structural stability, are suitable for rapid installation on large-area roofs and walls. Corrugated tiles, on the other hand, boast a smooth curved appearance and outstanding waterproof sealing performance, which can meet the dual requirements of aesthetics and functionality for different architectural styles. Both products are manufactured using high-quality color steel materials, offering excellent weather resistance and durability to adapt to Canada's diverse climatic conditions for a long time.
The color steel tile products produced by this equipment have a wide range of applications. They are not only the preferred building materials for roofs and walls of industrial buildings such as factories and warehouses, providing stable protection and high construction efficiency for the buildings; but also suitable for civil and public buildings including garages, gymnasiums, and exhibition centers. With their attractive appearance, light weight and high strength, these products help improve the overall quality and user experience of the buildings, providing reliable building material solutions for various construction projects.
The drawing profile of the finished products:
Product Attributes：
Steel Roof Sheet Double Layer Roll Forming Machine | ||
1.Formed Material | PPGI,GI,AI,GL | Thickness:0.3-0.8mm Width:1000mm/1250mm(As per profile drawing) |
2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） |
3.Main body | Roller station | 16+18 rows(As your requirement) |
Diameter of shaft | 80mm solid shaft | |
Material of rollers | 45# steel, hard chrome plated on the surface | |
Machine body frame | 350 H steel | |
Drive | Chain transmission | |
Dimension(L*W*H) | 10500*1600*1600(customize) | |
Weight | 11.5T | |
4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
5.Power | Motor Power | 5.5KW |
Hydraulic system power | 5.5KW | |
6.Voltage | 380V 50Hz 3Phase | As your requirement |
7.Control system | Electric Box | Customized(famous brand) |
Language | English(Support multiple languages) | |
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
8.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. |
Technical Advantages：
1. Fully Automatic Configuration with Zero Threshold for Easy Operation

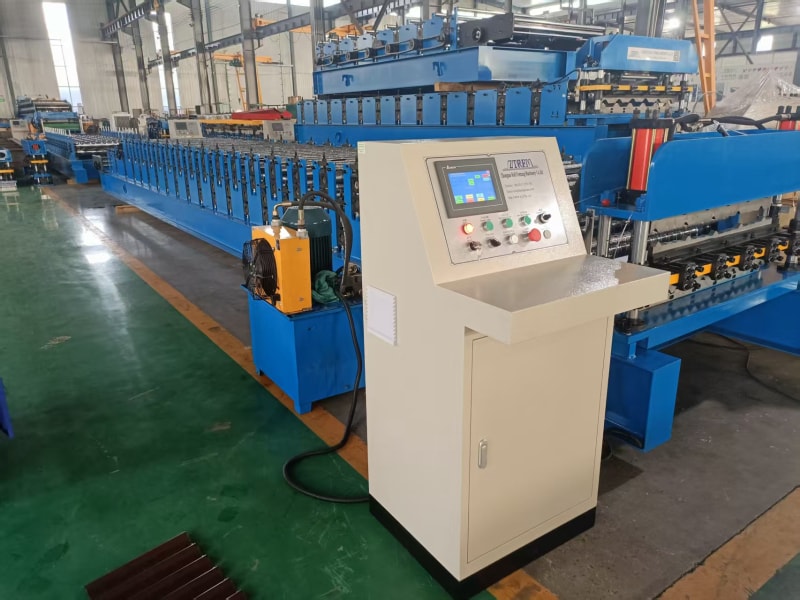

The equipment adopts a "full-process integrated design", with core components including an uncoiler, forming section, cutting device, PLC control system, hydraulic station and material receiving table, forming a complete fully automatic production line. No additional equipment is required to start production.
The uncoiler can stably hold the coil and automatically complete the uncoiling operation, avoiding the deviation and inefficiency caused by manual feeding;
The forming device relies on precision molds to ensure the consistent and accurate shape of color steel tiles, eliminating defective products;
The PLC control system, as the "intelligent brain", has pre-set mature production programs and does not require debugging by professional technicians;
Equipped with a high-efficiency hydraulic station and automatic cutting device, it can accurately control the length of plates according to requirements with minimal cutting error;
The final finished products are automatically sorted and stacked by the material receiving table, reducing manual handling links.
More thoughtfully, the equipment has an extremely low operation threshold: you only need to connect the main power cable and press the start button to start fully automatic production. Even workers operating it for the first time can get started in a short period of time, which greatly reduces the cost of staff training and the rate of operational errors.
2. Double-Layer & Dual-Profile Production for Flexible Adaptation to Diverse Needs

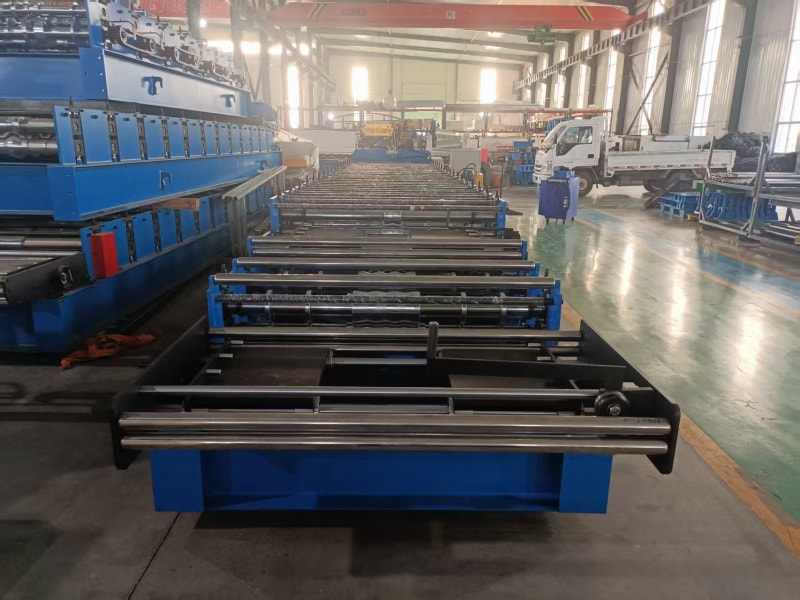

Different from the limitation of traditional single-layer equipment that "one machine produces one type of plate", this double-layer color steel roof tile equipment adopts an upper and lower double-layer independent working structure. It can produce two different types of roof panels simultaneously or separately, perfectly adapting to the needs of diverse orders.
Taking this configuration as an example, the upper layer of the equipment is specially designed for producing Ag panel (trapezoidal plates), which has a neat shape and high strength, suitable for large-area roof laying in factories, warehouses, etc.; the lower layer focuses on the production of corrugated plates. The curved texture not only has excellent waterproof performance, but also enhances the sense of hierarchy of the building's appearance, making it suitable for scenarios that require good appearance such as garages and gymnasiums.
Whether undertaking orders for two types of plates at the same time or flexibly switching production categories according to market demands, the equipment does not need to frequently replace molds or adjust the structure. It only requires simple parameter setting through the PLC system, which greatly shortens the order response time, enabling manufacturers to easily cope with changing market demands and improve their order-receiving capacity.
3. Space-Saving & Cost-Saving for More Practical Cost Reduction and Efficiency Improvement
For manufacturers with limited workshop space and pursuit of cost control, the "economic advantage" of this equipment is particularly prominent:
Space-saving: Traditionally, to produce two types of roof panels, two single-layer machines need to be purchased, occupying twice the workshop area; while this double-layer equipment only requires the floor space of one machine to achieve the production function of two machines. It is especially suitable for small and medium-sized workshops or enterprises that need to optimize space layout, indirectly saving the cost of workshop rental or expansion.
Cost-saving: In terms of direct costs, the purchase cost of one double-layer machine is much lower than that of two single-layer machines, and it also reduces the costs of equipment transportation, installation and later maintenance; in terms of indirect costs, the double-layer machine can share part of the power system and control system, with energy consumption about 20% lower than that of two single-layer machines. Long-term use can significantly reduce electricity expenses; at the same time, there is no need to hire additional workers to operate two machines, further reducing labor costs and helping manufacturers achieve "cost reduction and efficiency improvement".

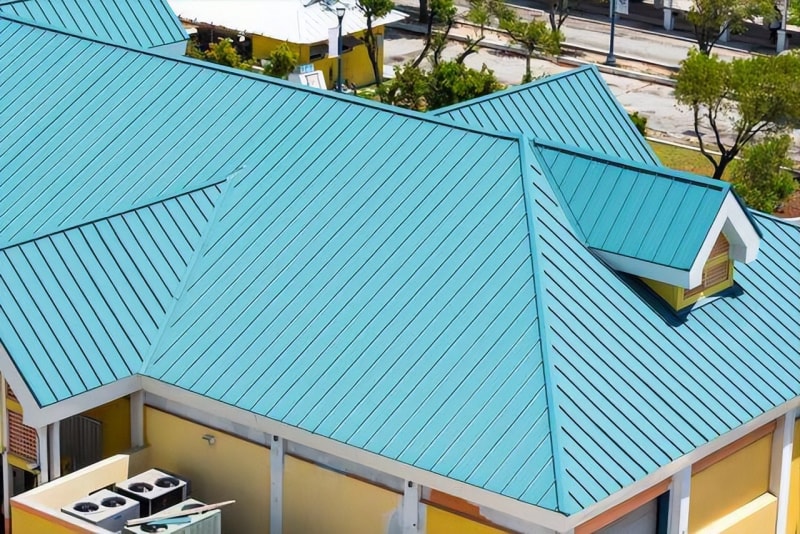

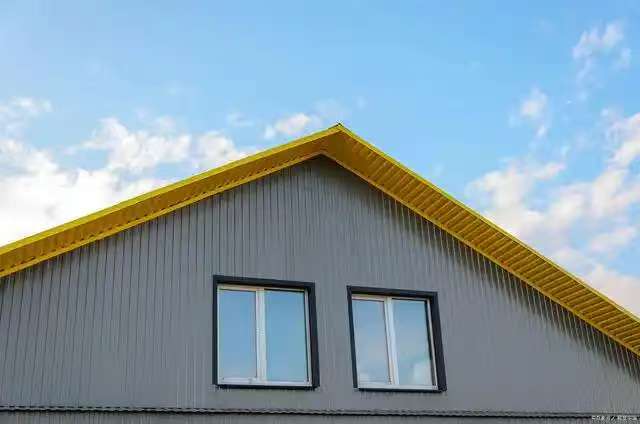

Application scenarios of the finished product:
1.Industrial and Warehousing Buildings: Such as factory workshops, logistics warehouses, large-scale production plants, etc. They can adapt to long-span roof structures, have both waterproof performance and wind load resistance, and meet the roof needs of industrial production and cargo storage.
2.Public Facility Buildings: Including farmers' markets, stadium stands, auxiliary buildings of exhibition halls, etc. The flatness of trapezoidal tiles and the aesthetics of arc tiles can be used in combination, taking into account both practical functions and visual effects, and adapting to the diverse needs of public spaces.
3.Civil and Commercial Auxiliary Buildings: For example, the roof of residential garage, the canopy at the entrance of commercial stores, the wing rooms of rural self-built houses, etc. They are easy to install and have moderate cost, can adapt to the roof size of small-scale buildings, and at the same time improve the neatness of the building appearance.
4.Transportation and Municipal Supporting Buildings: Such as the canopy of highway service areas, the roof of bus stop pavilions, the roof of municipal waste treatment stations, etc. They have strong weather resistance to cope with complex outdoor environments, and are easy for later maintenance, adapting to the frequently used public supporting scenarios.
