Brief introduction:

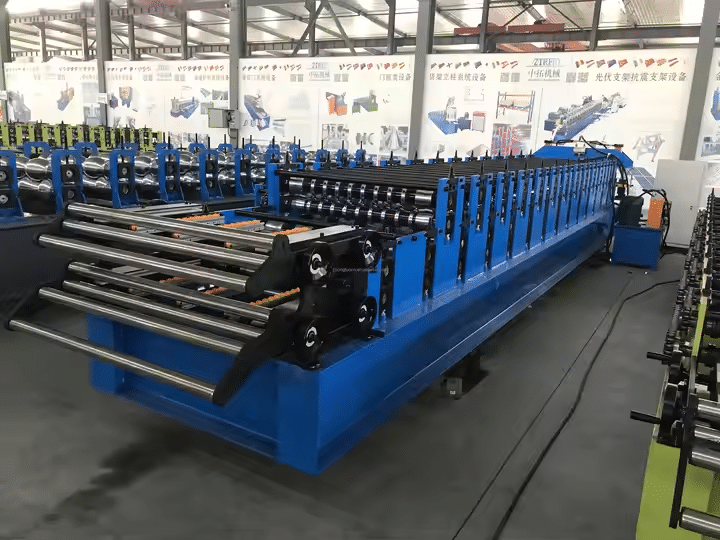

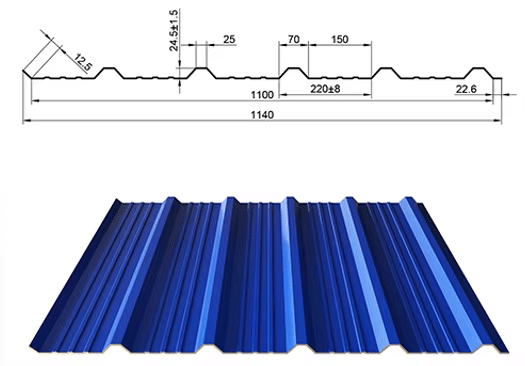

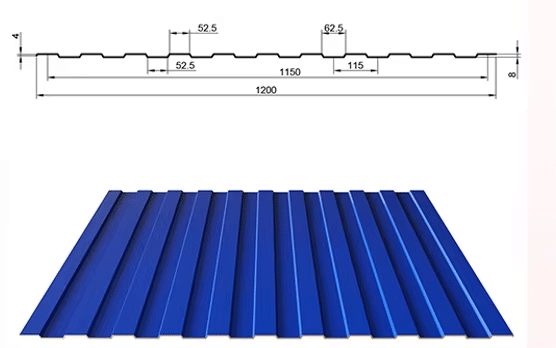

Double layer roofing sheet machine is designed to make the glazed tile and IBR by rolling forming machine in batch fully automatically.
Advantages: Pretty appearance, durable using and so on. By the double layer design, it can save cost and space for the manufacturing.
Application: It is widely used in many kinds of industrial factory, civilian buildings.
Work flow:

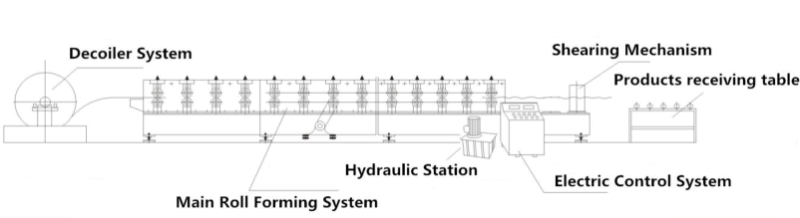

Machine components:
1.5T decoiler: 1set (optional configuration)

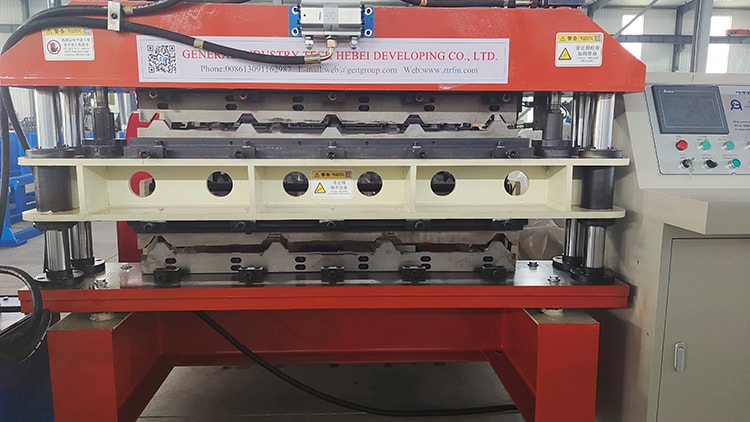

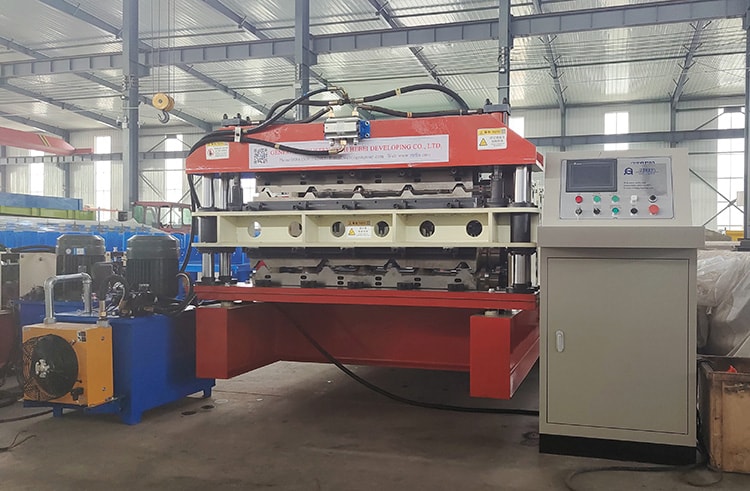

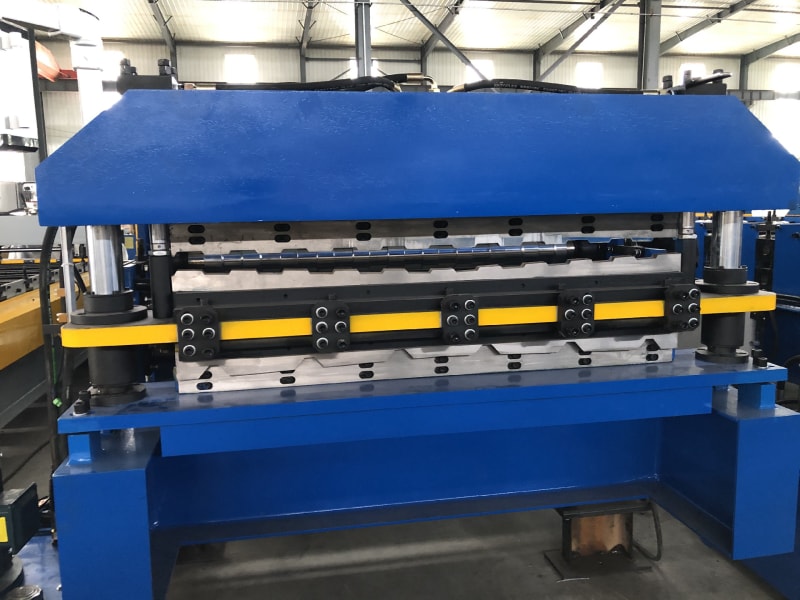

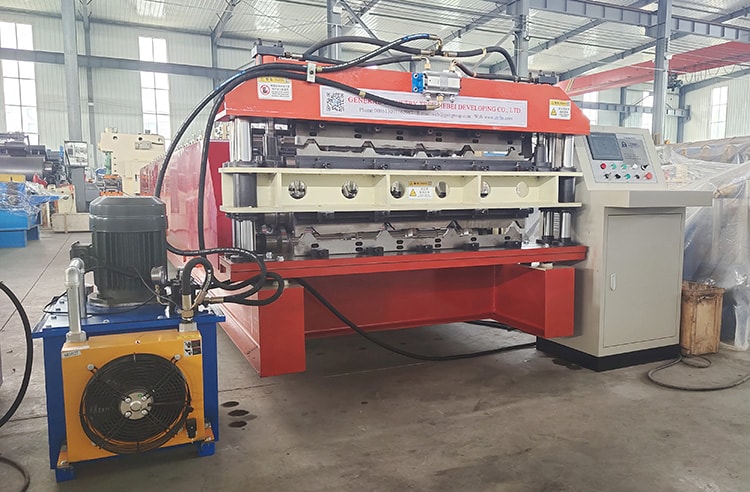

2.Main roll forming machine: 1set
3.Product run out table: 1set (optional configuration)

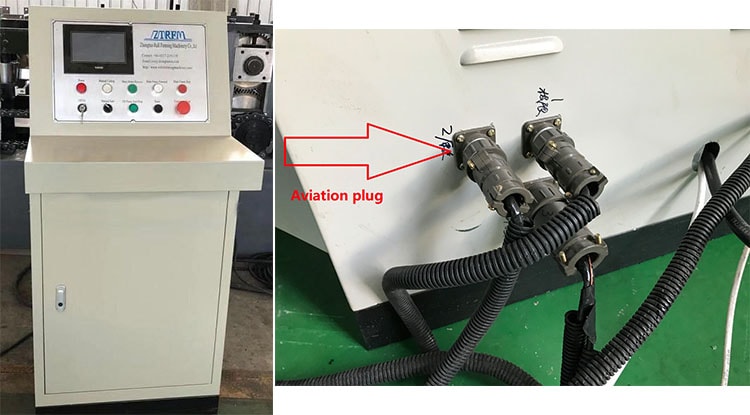

4.PLC control system: 1set

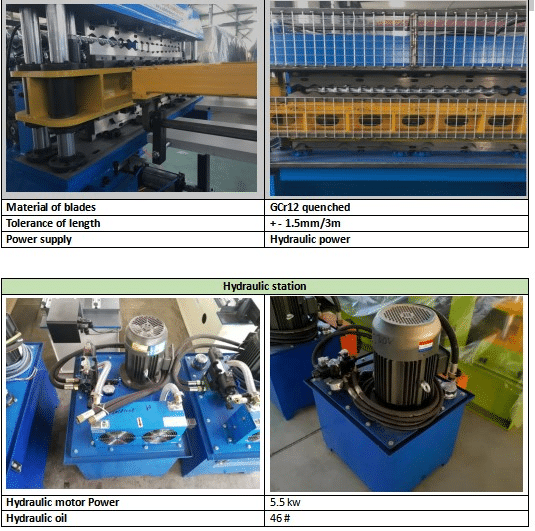

5.Hydraulic station: 1set
Technical details:
1.Raw material of the coil: G550 steel
2.Raw material thickness: 0.2-0.5mm
3.Feeding width: 1250mm
4.Length of the main part: about 10500*1850*1500 mm
5.Weight of main part: about 8.5T
6.Main power: 7.5kw
Machine parameters

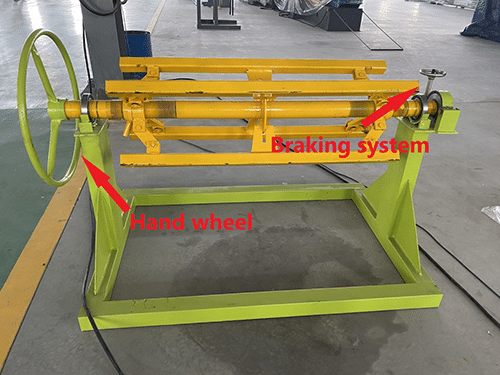

1.5T decoiler: 1set (optional configuration)
Max coil width: 1250mm
Coil inner diameter: 450-550mm
Power: 3kw

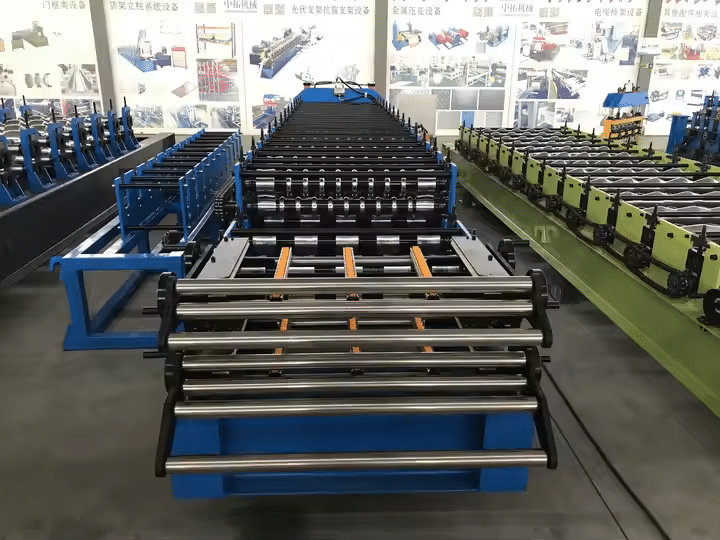

2.Main roll forming machine
Feed frame roller: Stainless Steel
Machine base structure: 350H steel welded
Machine architecture: Middle plate
Drive mode: Chain drive
Roller station numbers: Up layer:20 rows Down layer:24 rows
Rollers material: 45# steelSurface hard chromium plating
Shaft diameters: Φ 80mm
Shaft material: 45# steel
Motor power: 7.5kw
Forming speed: 0-20m per minute
Power: 380v 50hz 3PhaseOr as customer request
3.Cutting system
4.PLC control system
Language: Chinese and English or as customized
Voltage: 380V 50Hz 3 Phase (as customer request)
Coder: ENC-1-1-1T-24 from South Korea
Operating panel: Touching screen and button together
Brand of PLC: Delta (Taiwan)

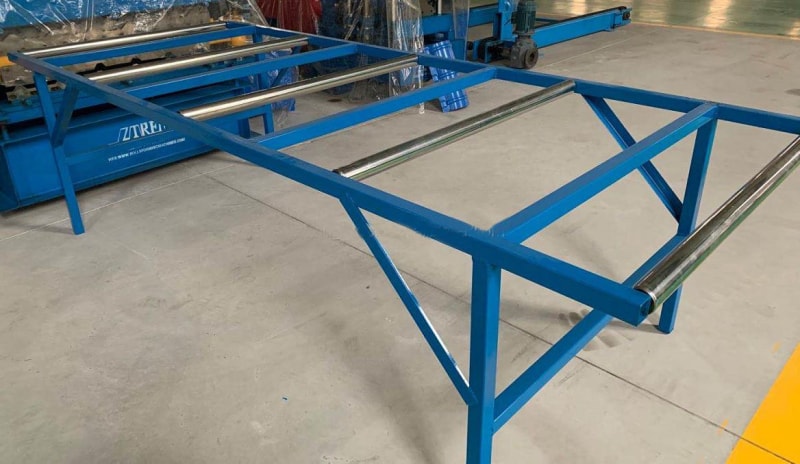

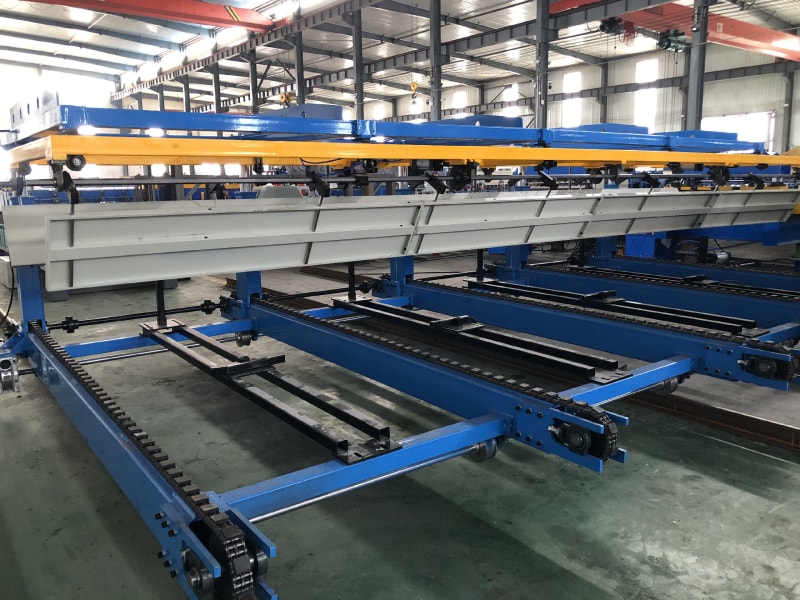

5.Run out table
Table quantity: 1 set
Table length: 3 m per set
