Floor deck roll forming machine

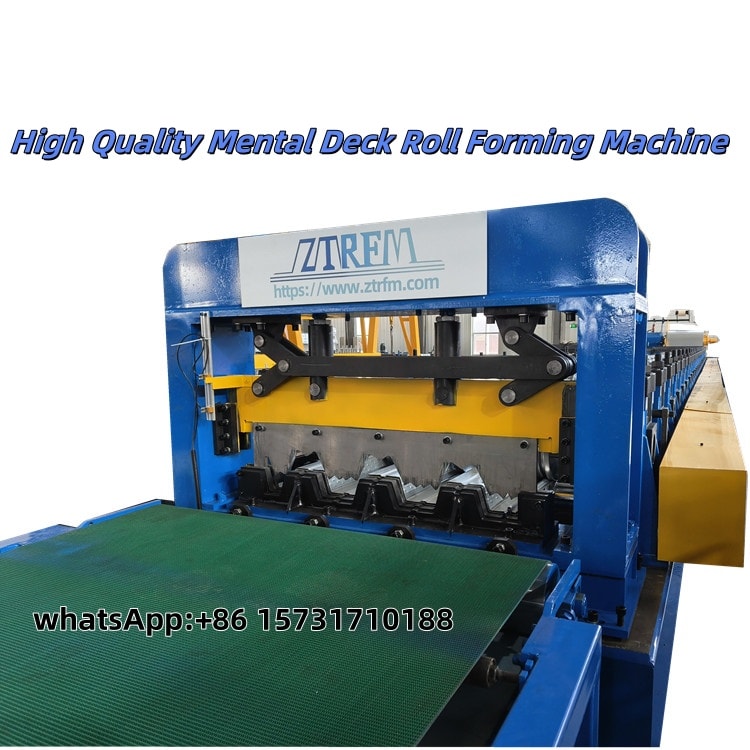

High Quality Mental Deck Roll Forming Machine

High Quality Mental Deck Roll Forming Machine

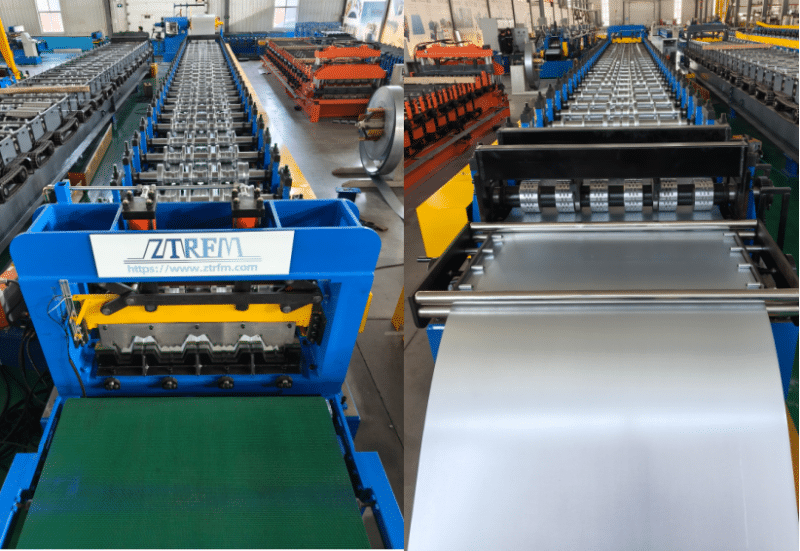

This floor decking forming machine is the core equipment for the automated, mass, and high-speed production of floor decks. We offer diversified solutions for this equipment:

1.We can customize and produce exclusive profiles according to customers' specific needs and drawing requirements.

2.For scenarios where factory space is limited, we specially launch the cartridge-type quick-change model, which flexibly meets the production needs of multiple profiles.

3.In addition, our main best-selling models include the B  deck roll forming machine, composite metal floor deck roll forming machine, and general-purpose metal floor deck forming machine.

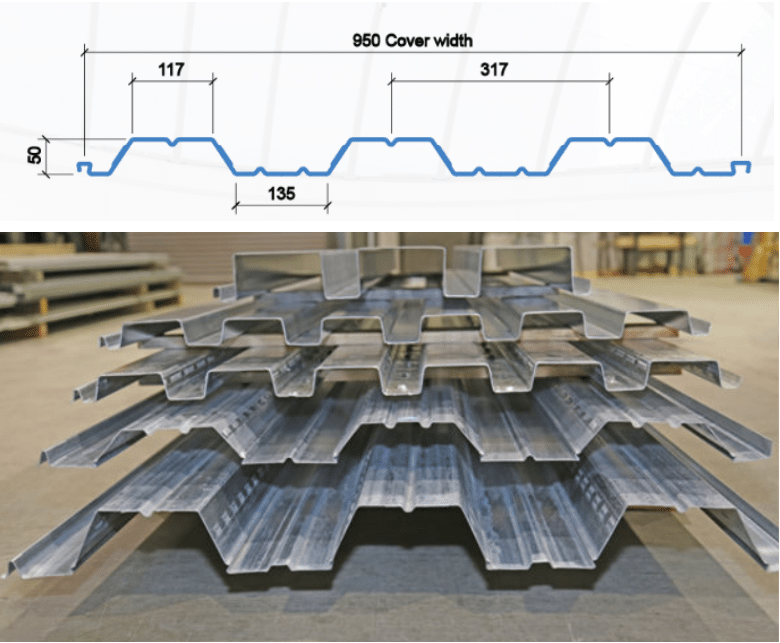

Here we take one drawing profile for your reference: TR50

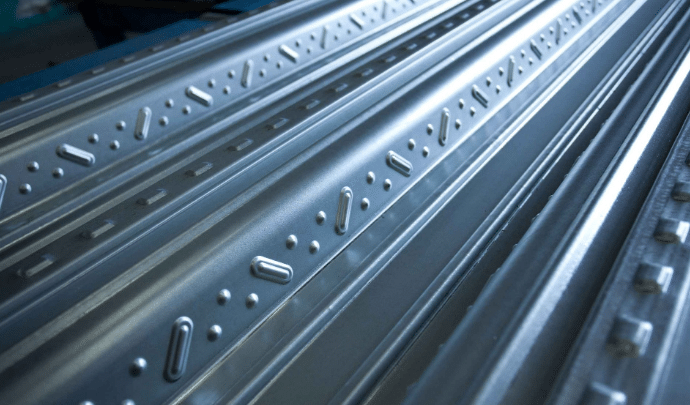

Here is the embossing pattern for your reference:

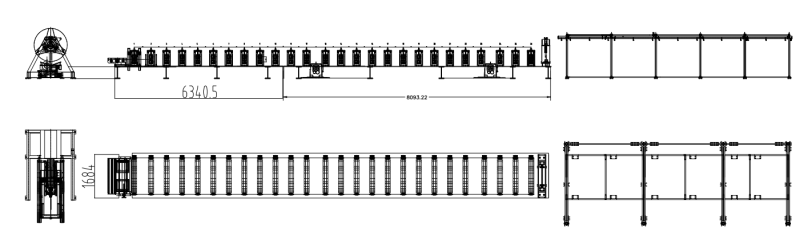

Working Flow of metal decking machine:

Here are pictures of metal decking machine for your reference:

Here are some basic parameters of metal decking machine:

Features of Zhongtuo Metal Decking rolling forming machine:

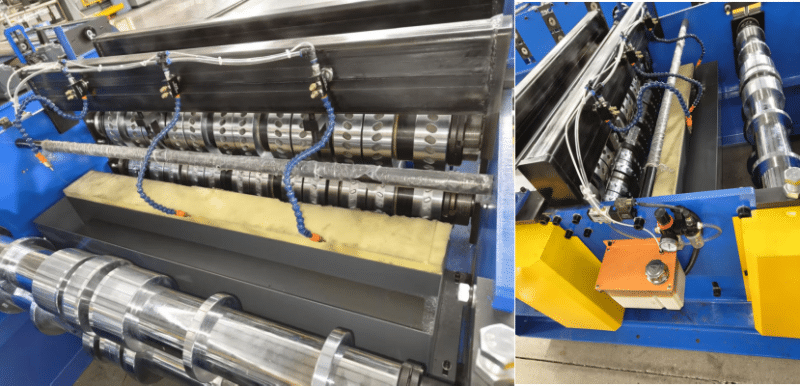

1.Our Floor Deck Machine's Lubrication System Prevents Zinc Coating Peeling and Machine Overheating, Ensuring Stable Production

In the production of floor deck machines, zinc coating peeling on metal embossing rollers and machine overheating are frequent issues that directly affect product quality and production efficiency. Without lubrication, the dry friction between embossing rollers and galvanized sheets intensifies, which easily causes scratches and subsequent zinc coating peeling. This reduces the floor deck's corrosion resistance, leading to rust and even scrapping. Meanwhile, the heat generated by the machine's high-speed operation cannot dissipate, resulting in roller deformation, bearing wear, and unplanned shutdowns for maintenance.

Our equipment is equipped with a lubrication system. By delivering specialized lubricants, the system forms a protective film between the rollers and sheets, effectively reducing friction and preventing zinc coating damage. Additionally, the flowing lubricant promptly dissipates heat, maintaining the machine's temperature within a reasonable range. This significantly reduces the occurrence of both issues and ensures stable production.

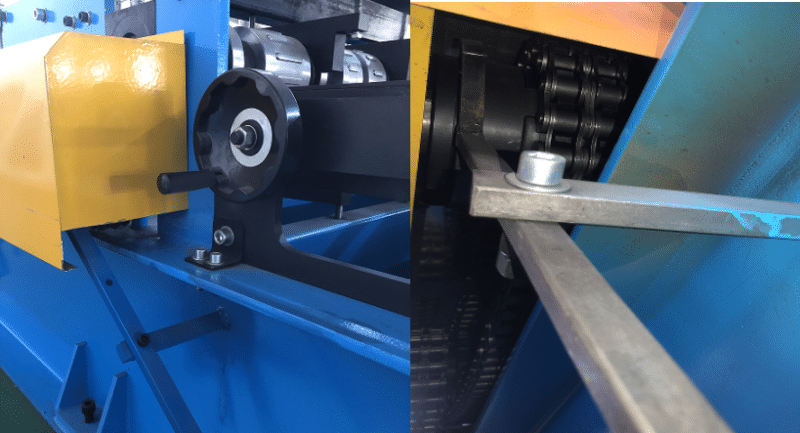

2.Dedicated Brake Device Boosts Feeding Convenience and Embossing Quality

In the metal embossing process of floor deck machines, feeding convenience and embossing effect are key to production efficiency and product quality. We have specially designed a dedicated brake device for the metal embossing section, which effectively addresses the operational pain points of traditional equipment. During traditional feeding, metal coils tend to deviate due to inertia, requiring multi-person collaboration for adjustment, which is both time-consuming and labor-intensive. With this brake device, however, you can precisely control the coil feeding speed and tension, allowing a single person to easily complete feeding and greatly reducing operational difficulty. At the same time, the brake device can stably maintain the pressure and roller speed during embossing, avoiding uneven embossing depth caused by coil sliding, ensuring uniform embossing depth and clear patterns, while balancing production efficiency and product aesthetics.

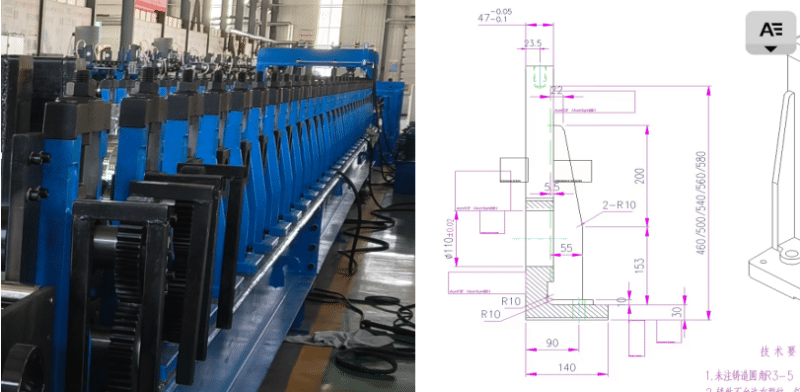

3.47mm Thick Metal Molding Frame Ensures Firm Shaft Fixation & Stable High-Speed Operation

The metal molding frame is the core support for the stable operation of the floor deck machine, and our equipment has significant advantages in the design of this component. With a thickness of 47mm, it boasts stronger structural rigidity and can firmly lock the shaft even when the equipment is running at high speed. To address the common shaft loosening issue in traditional equipment, we innovatively slot the shaft and embed two nuts and a cushion: the nuts enhance the fixing force, while the cushion absorbs operational vibrations. This combined design fundamentally eliminates the risk of shaft deviation and loosening during machine operation, and even achieves the effect of "becoming firmer as it runs". It ensures stable and precise molding processes, reduces shutdowns for maintenance caused by shaft problems, and provides reliable support for continuous and efficient production.

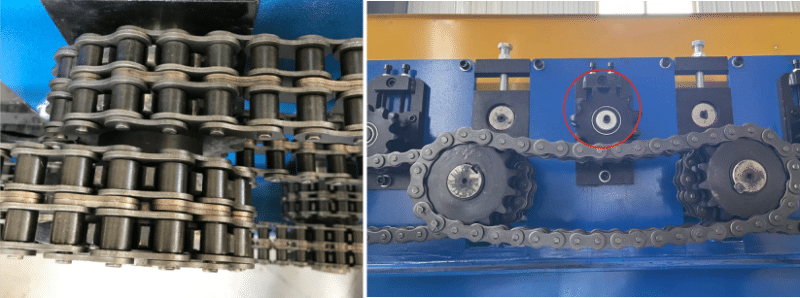

4. Dual-Chain Structure + Tightening System: Ensuring Stable Power Transmission & Lower Maintenance Costs

In the power transmission of floor deck machines, the reliability of the chain directly affects the equipment's operating efficiency. We specifically adopt a dual-chain structure design. Compared with the traditional single-chain, it can distribute the load pressure more evenly, improve the stability of power transmission, and avoid shutdowns caused by single-chain breakage or slippage. At the same time, it is equipped with an exclusive chain tightening system that can lock the chain tension in real-time, effectively preventing the chain from loosening or falling off during long-term high-speed operation of the equipment. This combined "dual-chain + tightening" design not only reduces the chain wear rate and lowers the maintenance cost of frequent adjustments and replacements but also ensures the continuity of power transmission during the continuous production of the floor deck machine, providing a solid power support for stable and efficient forming operations.

There are lot of difference and features, we can not list all of them. Welcome to send inquiry to us.

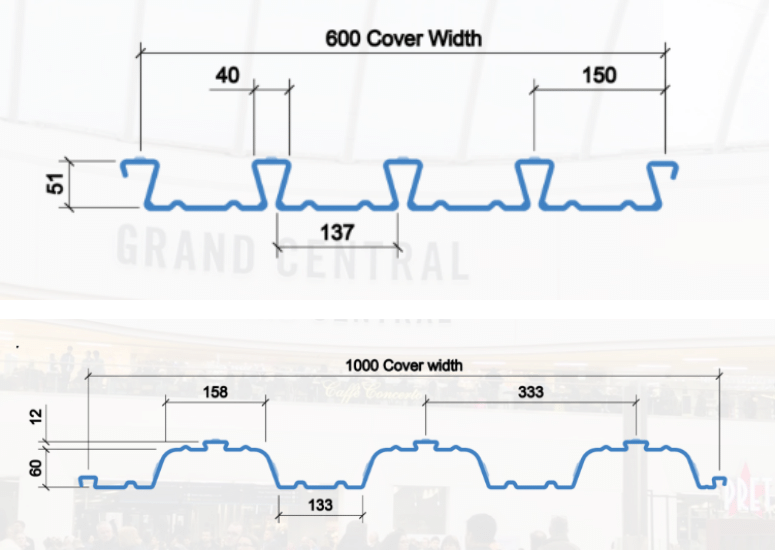

There are more popular designs of metal decking we could make for your reference:
