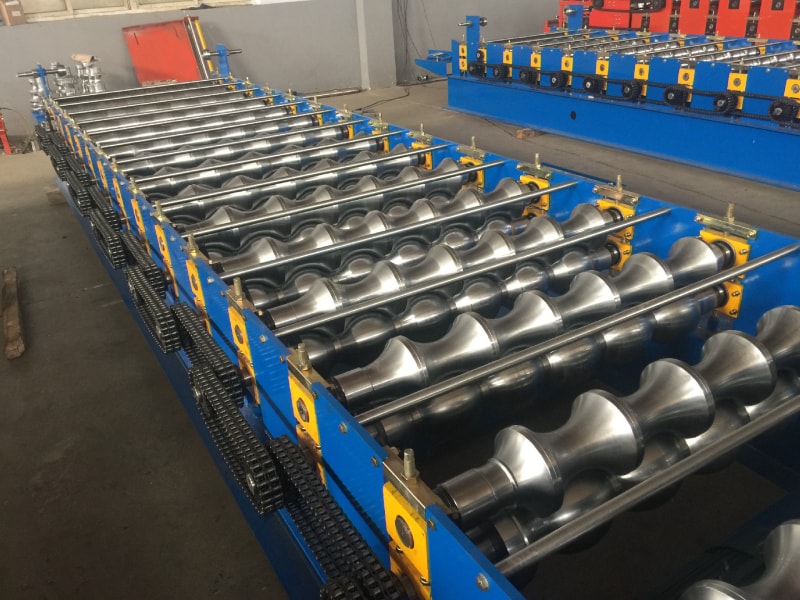

The Glazed tile roofing sheet machine is one of our products.Its products is glazed tile.Glazed tile has three types. They are positive arc glazed tile, slant arc glazed and bamboo.
This machine including decoiler, system, main roll forming machine, feeding part, automatic shearing mechanism, step-formed mechanism, hydraulic station, electric control system and product receiving table. And these products are all for sale. Specific specifications will be determined according to customer requirement.

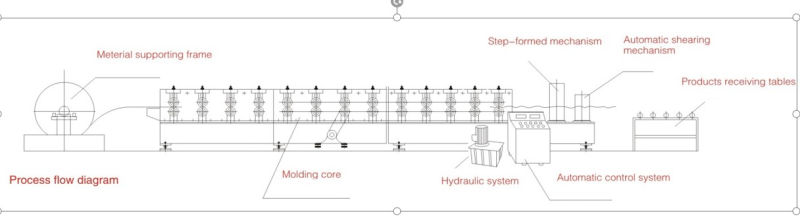

Work flow:
Applications:

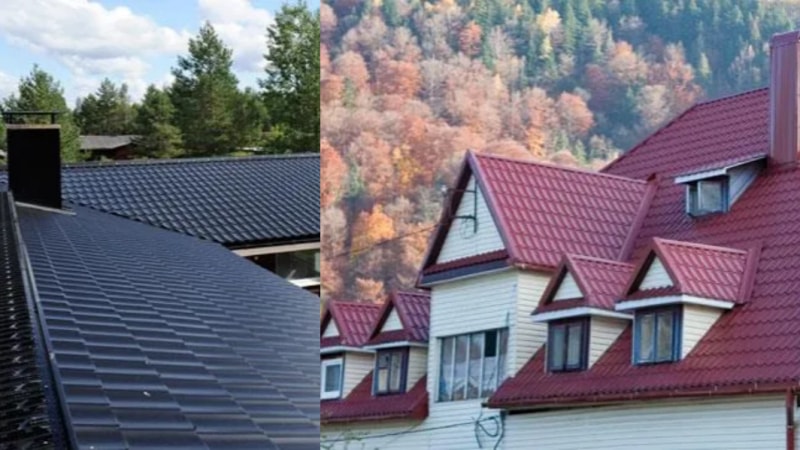

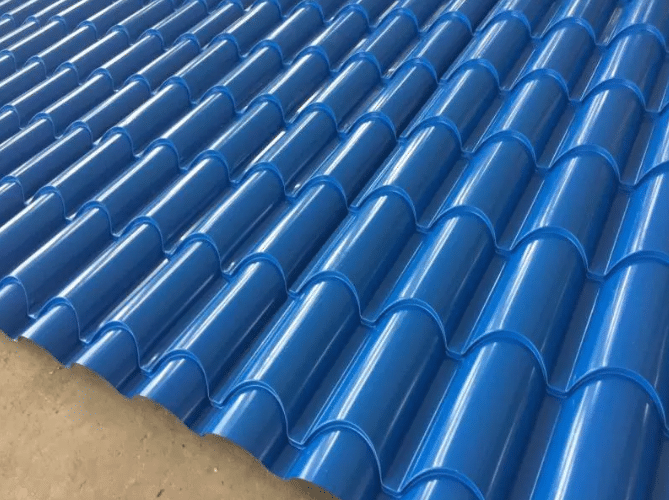

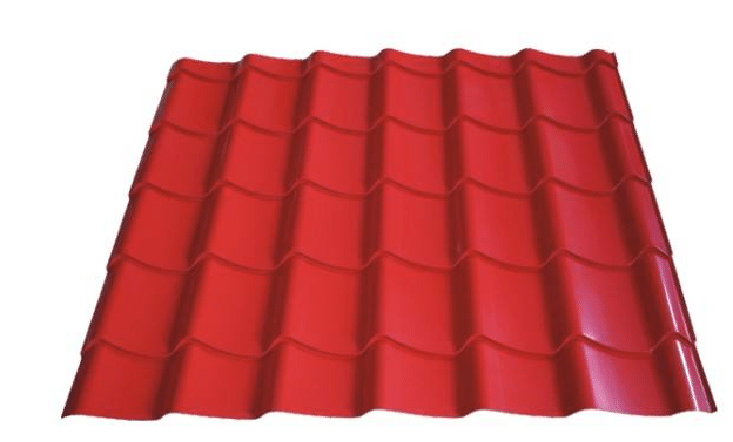

Glazed tile mainly used to decorate the roof.
Advantage:
high strength, water proof , beautiful appearance

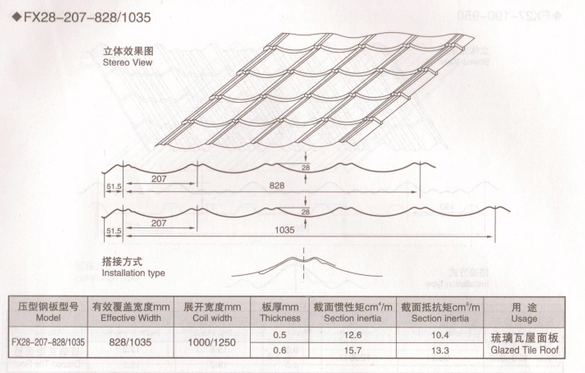

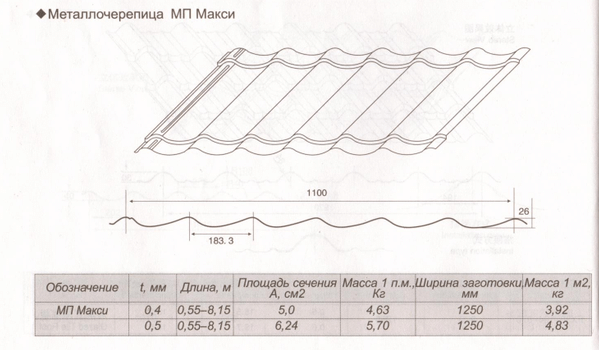

Regular profile drawings:

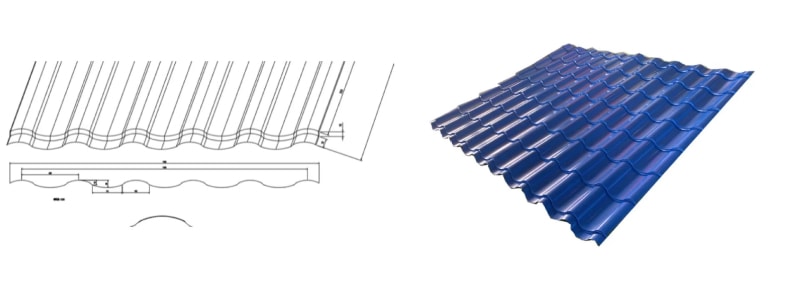

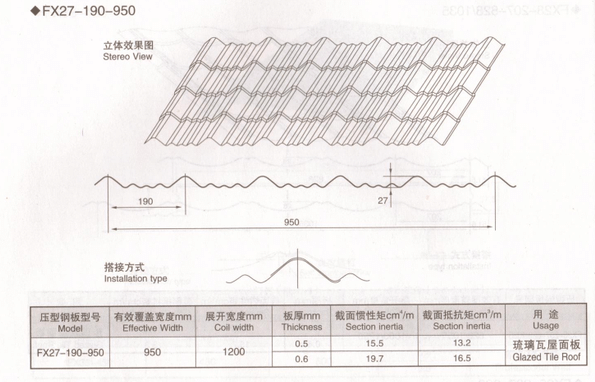

Regular profile drawings:
More details:
1. Effective width: 1100mm
2.Feeding width: 1250 mm
3.Thickness of formed steel: 0.3-0.8mm (usually the thickness of the sheet is less than 1 mm)
4.Material of coil or plate: GI, PPGI
5.Material hardness:195 mpa---350 mpa
6.Material length:194 mm
7.Formed width: 970 mm
8.Step height: 30 mm
9.Step length:150 mm---380 mm(adjustable)
10.Forming speed: 4 m/min
Un-coiler System

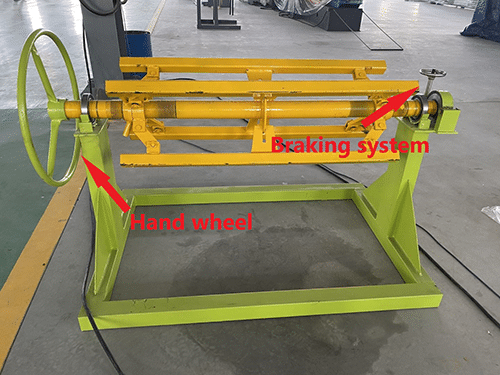

Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system.

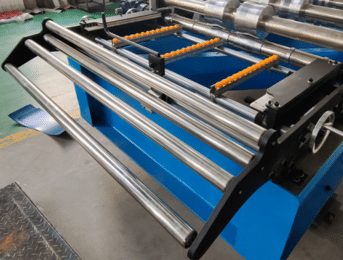

Feeding device:
It can guarantee that the products are neat, parallel and everything is uniformity.

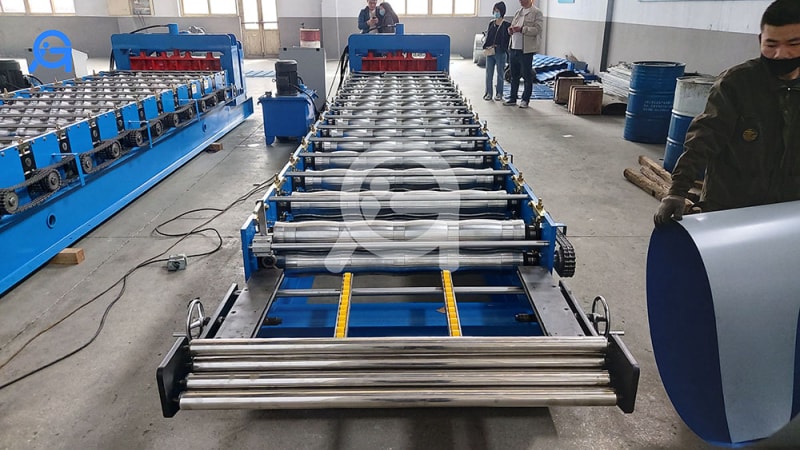

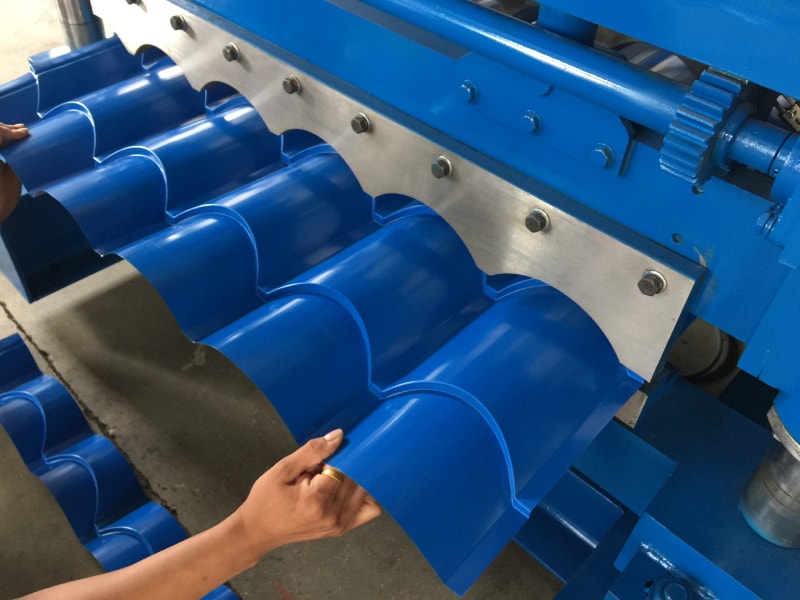

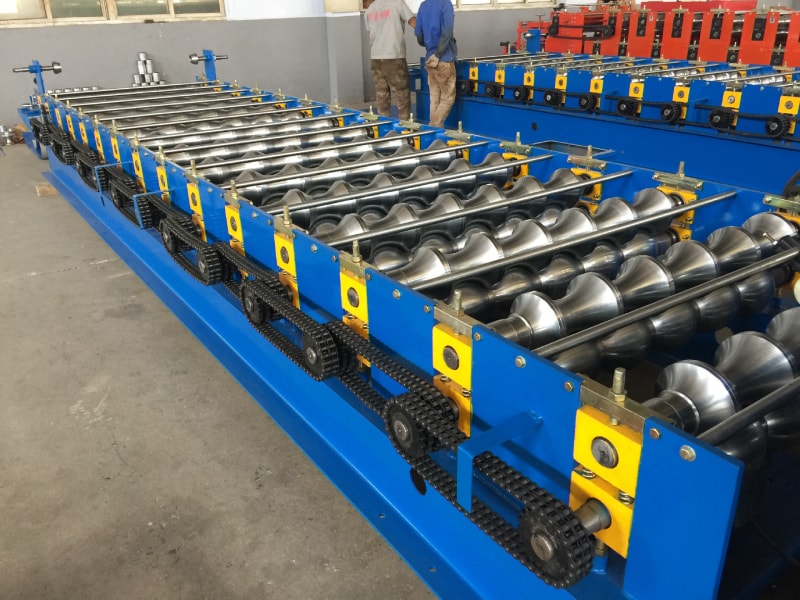

Forming device
1.Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working.
2.Feature : Ensure stability , precision and lifetime.

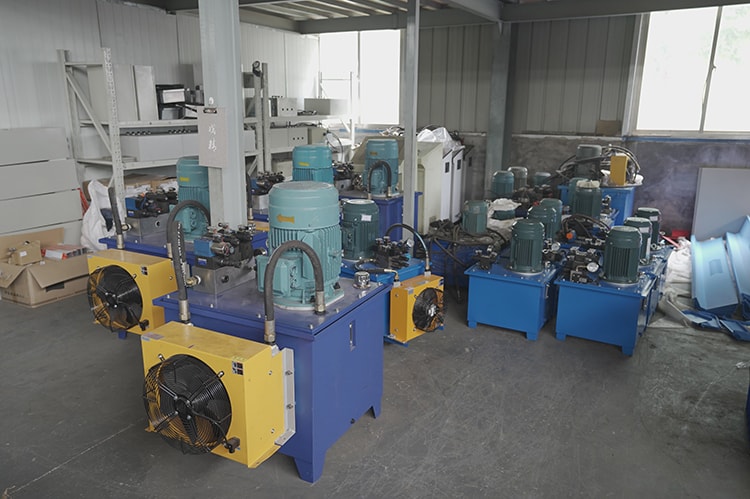

Hydraulic system
All the tubes and wires will be marked with numbers or letters, so that it is very easy to connect for the new.

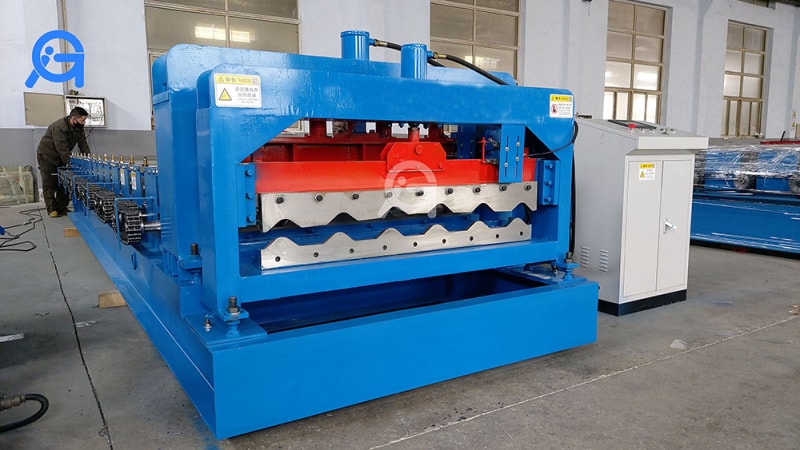

Step-formed mechanism
It is used to make the step,the glazed tile’s final formed.

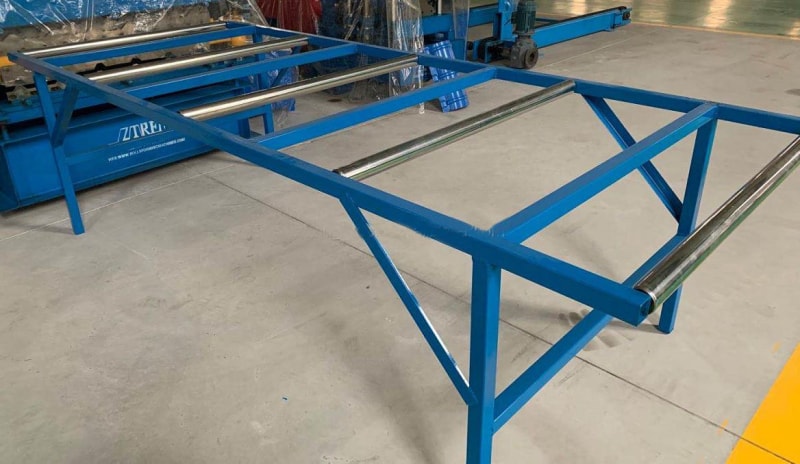

Products receiving table
It adopts welded steel and supported roller to transmit the products.
