Best-selling fully automatic cut to length machine
Here is the working video of this machine for everyone to watch:
Product description：
The cut to length machine, as the core equipment in the metal sheet processing field, is an intelligent production line integrating multiple functions such as uncoiling, leveling, fixed-length shearing, and stacking. Its main structure includes a stable decoiler responsible for smoothly unfolding metal coils; a high-precision leveler that repeatedly rolls the sheet through multiple sets of precision rollers to effectively eliminate deformations like waves and bends, ensuring sheet flatness; a powerful shearing machine that uses sharp and durable blades to apply huge shearing force in an instant, cutting the sheet as required; an accurate feeding device that transports the sheet to the stacking machine at extremely high speed and precision according to preset programs; and an intelligent stacker that orderly stacks the sheared sheets neatly.
Profile Drawing:
The machine is composed by the following elements:
1. Decoiler
2. Feeding device
3. Leveling device
4. Cutting device
5. Conveyor
6. Receiving table
7. Electric control system
Each part detail introduction:

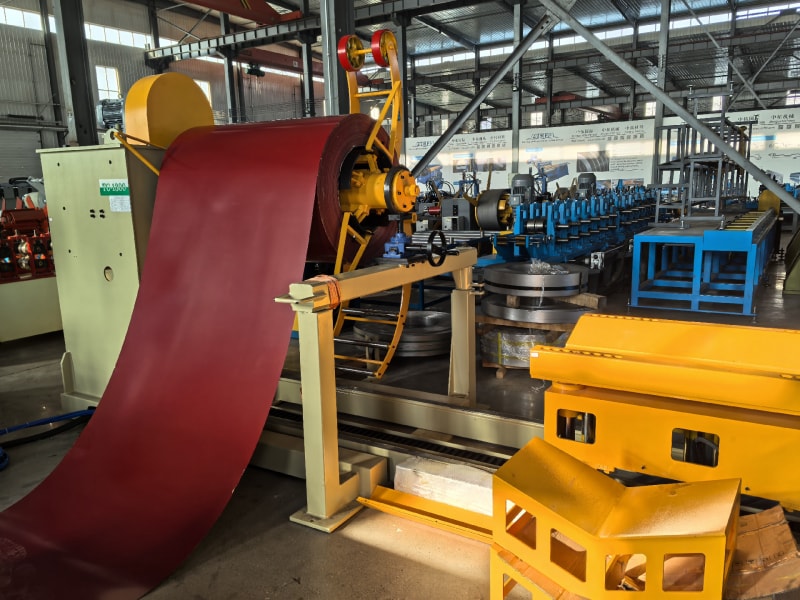

1.Hydraulic Decoiler with the car:
Decoiler Function: To complete the unwinding process of the raw material coil.
(1)Coil outer diameter: max Φ1600mm
(2)Coil inner diameter: Φ508mm
(3)Maximum working speed: 20m/min
(4)Effective length of drum: 1000mm
(5)Drive motor: 7.5KW
Loading car Funnction:delivers the coil to the uncoiler drum.
(1)Coil outer diameter: Φ1600mm
(2) Coil width: 1000mm
(3) Trolley load capacity: 10T
(4) Moving speed: approx. 6m/min

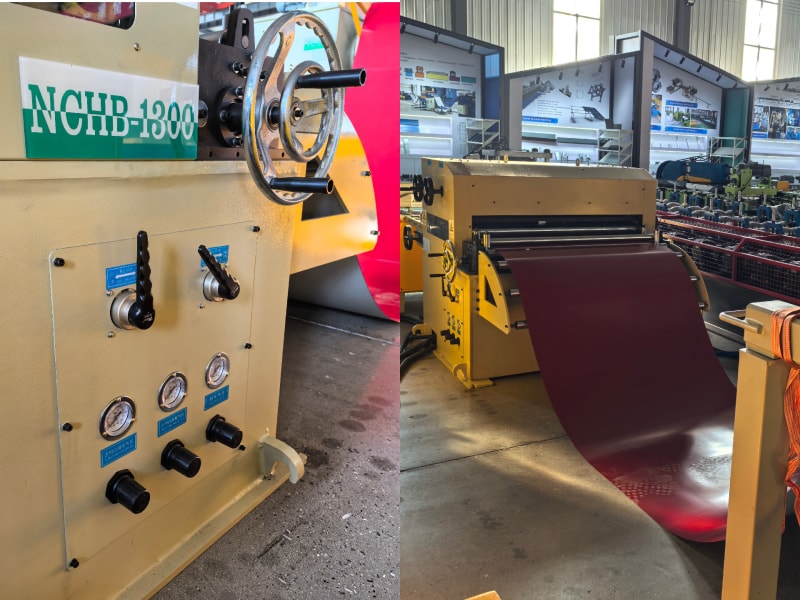

2.Feeding device
Function:The auxiliary materials are fed into the leveling machine.
(1).Three pulls and one press:With several support rollers, to feed the material more smoothly
(2).Rubber wheels:prevent the material surface from being damaged, and feed the material more easily and quickly
(3).Hand wheels :to adjust the feeding size, more conveniently.

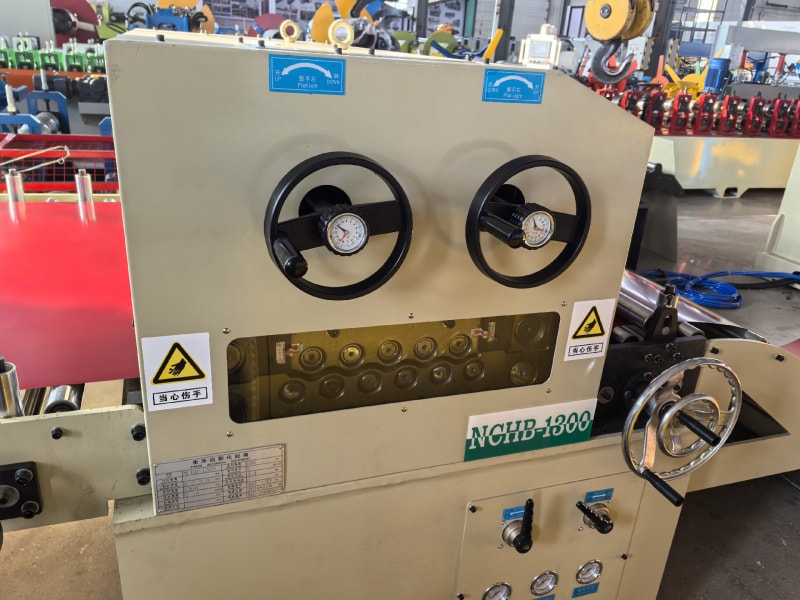

3.leveling device:
Function: to level the coil material
(1)There are11 leveling rollers, 5 arranged at the top and 6 arranged at the bottom (with a feeding shaft), and the roller diameter ф 90, effective roll surface width 1050mm, material 40Cr, high-frequency quenching, hard chromium plating on the surface.
(2)Motor：11kw
(3)Frequency converter:15kw
Note:There are two handwheels on the machine sidewall for adjusting the material thickness.

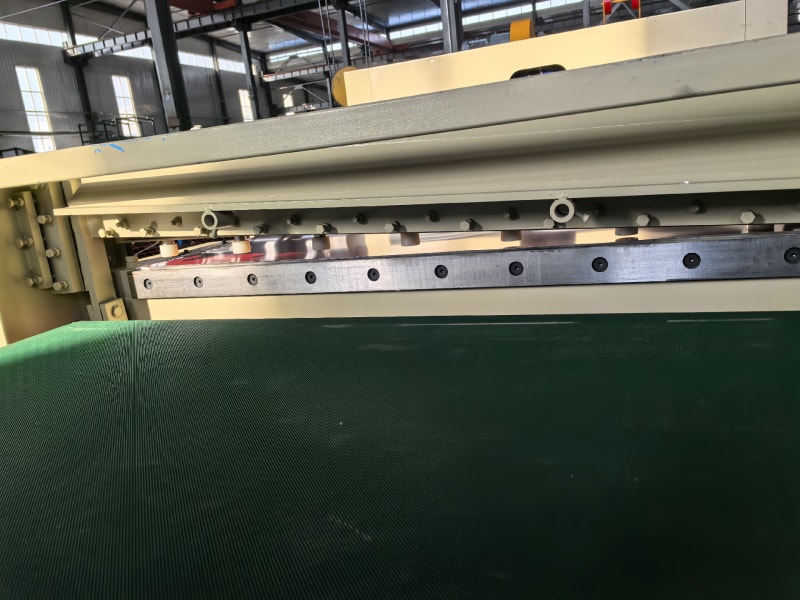

4.Cutting device:
Function：Shear the sheet into fixed-length pieces while the sheet material runs continuously.
(1)Cutting direction: from top to bottom.
(2)Shearing thiskness:0.2-2.0mm
(3)Shearing width:1000mm

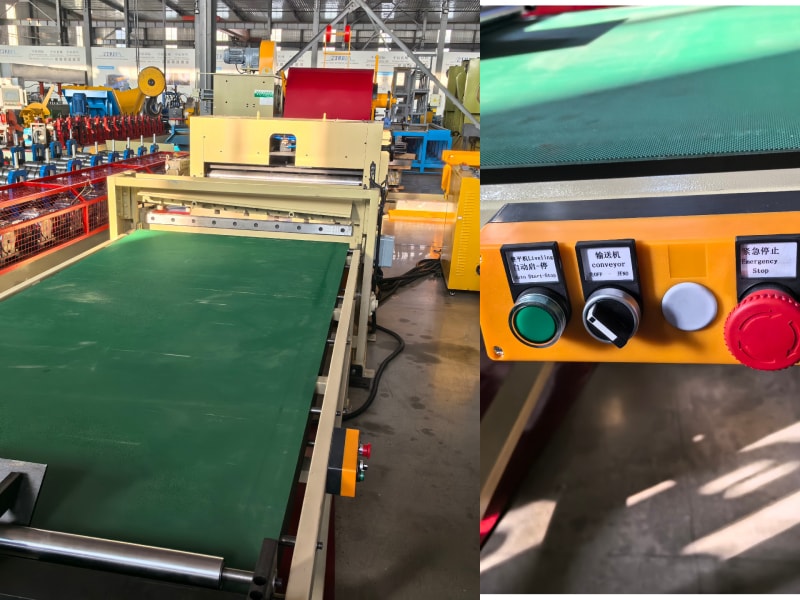

5. Conveyor:
Function: Transport the sheared sheet materials to the receiving device. As the length of the sheared sheets varies, the speed of the conveying table can be adjusted according to the real-time shearing conditions.
(1)Conveying belt: Equipped with a high-tensile fiber conveyor belt, which is anti-slip and wear-resistant.
(2)Power system: Driven by a 2.2kW speed-regulating motor with a reduction gearbox, synchronized with the production line speed.
(3)Mechanical structure: Welded and assembled with steel plates and square pipes.
Note:The side is equipped with a conveniently located switch.

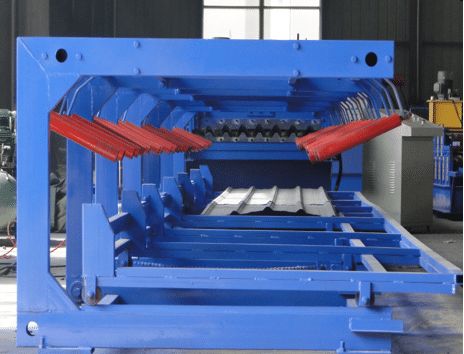

6.Receiving table:
Automatic palletizer:
(1)Width: 500-1000 mm
(2)Length: 500-3000 mm
(3)Automatic alignment by air cylinder

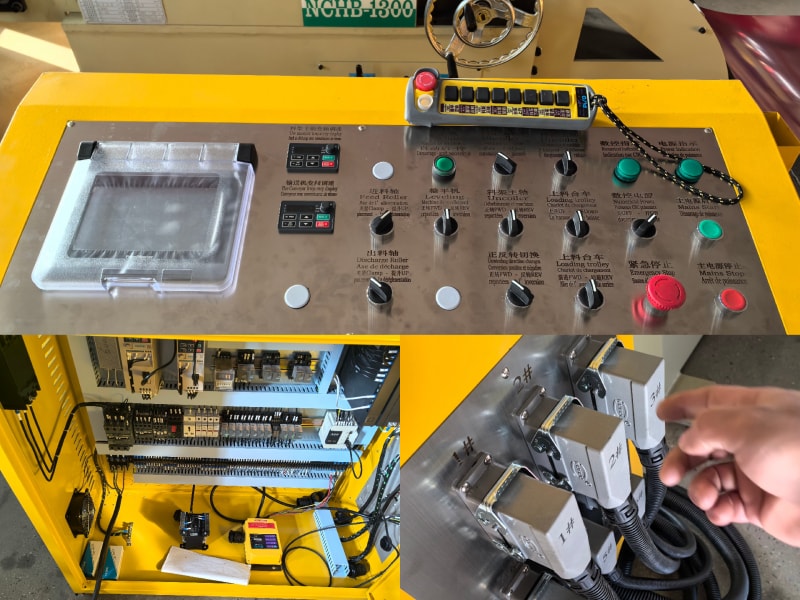

7.Electric control system
Adopted Delta Brand PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime.
(1)Language: Chinese and English (customized)
(2)Automatic length measurement Length inaccuracy can be amended easily.
(3)Computer operating panel: touching screen and button together Aviation plug, the wires are clearly labeled for convenient installation.
