Simple Roll to Sheet Cutting Slitting Machine
Product Description：
In the pursuit of excellence in modern manufacturing, the efficiency and quality of coil processing directly determine your market competitiveness. Say goodbye to the multiple equipment switching, long waiting times, and potential errors of traditional cutting methods. Our simple Simple Roll to Sheet Cutting Slitting Machine has emerged, seamlessly integrating uncoiling, precise leveling, high-speed longitudinal cutting (slitting), and accurate transverse cutting into a single, powerful production unit. This is not merely the addition of equipment, but a revolutionary reconfiguration of the coil processing workflow, bringing you unprecedented efficiency, peace of mind, and reliability.

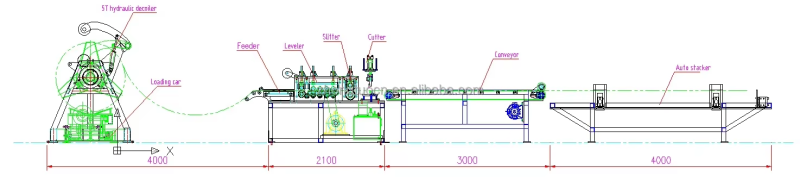

Simple Roll to Sheet Cutting Slitting line layout:
Product Attributes:
Metal strip coil steel sheet length cutting slitting machine | ||
1.Formed Material | PPGI,GI,AI,GL | Thickness:0.3-0.8mm Width:1000mm/1250mm(As client request) |
2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） |
3.Main body | Roller station | 7+8 rows(As your requirement) |
Diameter of shaft | 70mm solid shaft | |
Material of rollers | 45# steel, hard chrome plated on the surface | |
Machine body frame | 350 H steel | |
Drive | Chain transmission | |
Dimension(L*W*H) | 10500*1600*1600(customize) | |
Weight | 5T | |
4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
5.Power | Motor Power | 5.5KW |
Hydraulic system power | 5.5KW | |
6.Voltage | 380V 50Hz 3Phase | As your requirement |
7.Control system | Electric Box | Customized(famous brand) |
Language | English(Support multiple languages) | |
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
18.Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. |
Technical Advantages:
1. High Automation, Labor Liberation.
The Slitting and Cross Cutting Line features an advanced automated control system, integrated with an intelligent PLC and an intuitive touchscreen interface. Simply set the parameters once, and initiate the entire processing flow with a single button – achieving fully automated operation from coil loading to finished plate stacking. This drastically reduces manual intervention, lowers labor intensity, and eliminates operational errors caused by human factors, significantly enhancing production accuracy and stability.
During processing, the automatic edge control system continuously monitors the strip position, ensuring it remains on the optimal processing path for precise cutting. Upon completion, the automatic stacking system neatly arranges the finished plates, facilitating subsequent handling and storage. The entire production process is smooth and efficient. Operators need only perform simple monitoring, greatly improving operational convenience and the level of intelligent manufacturing.
2. High Production Efficiency, Seizing Market Opportunities.
The line seamlessly integrates all processes – uncoiling, leveling, slitting (longitudinal cutting), and cross cutting – enabling high-speed operation with smooth, jam-free material transfer. The high-speed slitting and cross cutting units can process large volumes of material in minimal time, efficiently handling dozens to hundreds of meters of material per minute. This far surpasses the output of traditional single-function machines. Additionally, rapid tool changes and parameter adjustments allow swift switching between different material specifications, adapting to diverse production demands. This minimizes machine downtime and maximizes overall productivity.
3. Stable Product Quality, Building Enterprise Reputation
High-precision leveling rolls, crafted from premium materials and subjected to meticulous machining and strict heat treatment, offer exceptional wear resistance and rigidity. They effectively eliminate defects like waviness and warping, ensuring plates achieve exceptional flatness. The slitting and cross cutting units are equipped with advanced tooling systems and precision drive mechanisms, guaranteeing stable cutting performance. This results in smooth, clean cuts with minimal dimensional tolerance, meeting stringent requirements for high-precision plate processing. Furthermore, the automated control system continuously monitors the process, precisely regulating all parameters to ensure every single plate consistently meets high-quality standards. This effectively reduces defect rates, saving costs and strengthening market competitiveness.
Product Details :

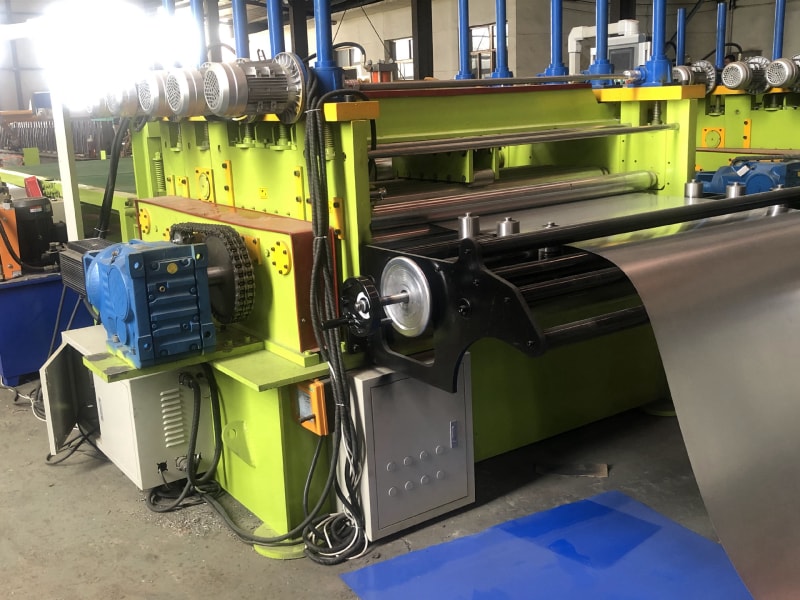

Ⅰ：Feeding and leveling device:
1.Three pulls and one press:With several support rollers, to feed the material more smoothly
2.Hand wheels :to adjust the feeding size, more conveniently.
3.leveling device make the material more smooth.

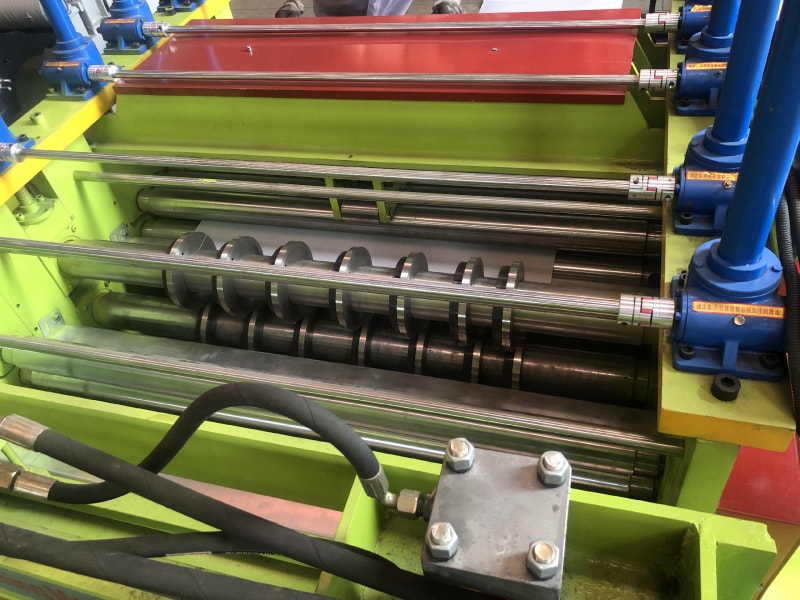

Ⅱ.slitting cutters
Slit can adjustable for different width sheet.

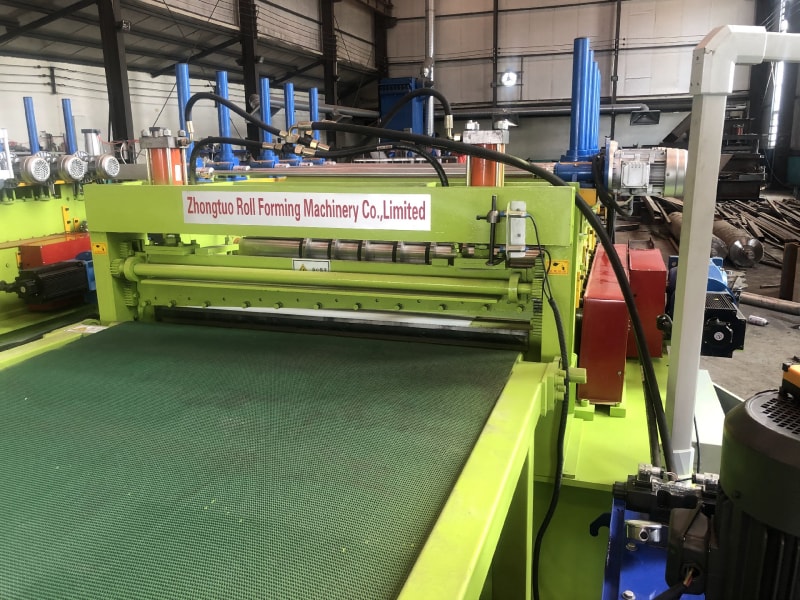

Ⅲ.Cutting device
cut to the length set on the PLC control cabinet.
Automatic length measuring.

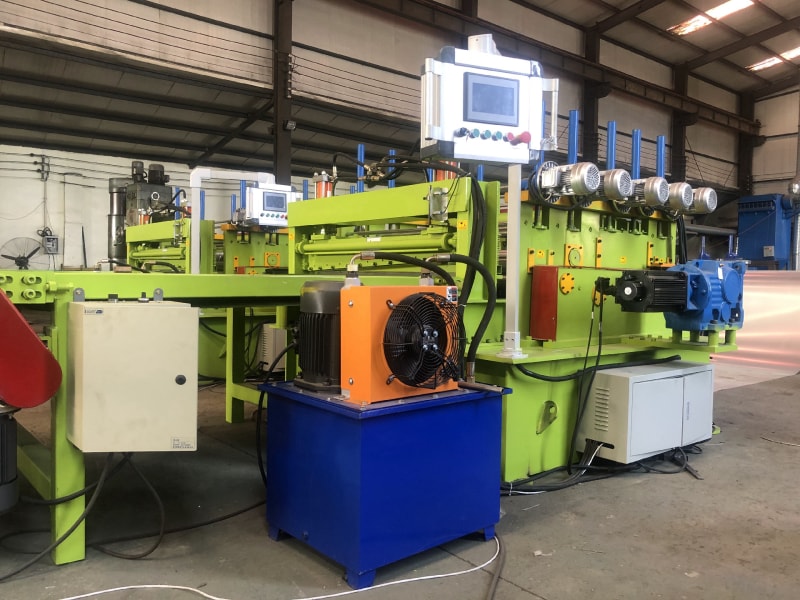

Ⅳ.Portable PLC control device
Button-type switch and touch screen,easy operation.control language customize.

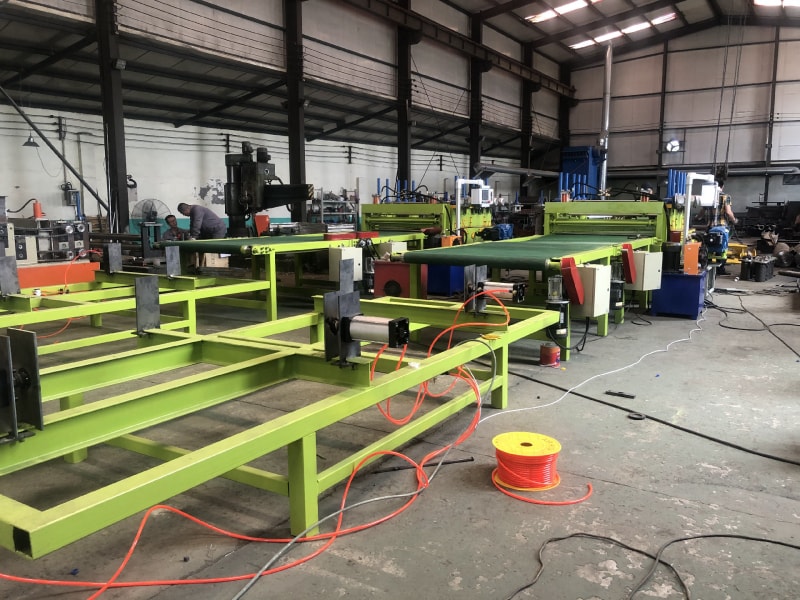

Ⅴ.Conveyor and automatic stacker:
Can convey the sheet automatically after cutting and then stack them orderly,and then cover out the sheets after producing one batch.
