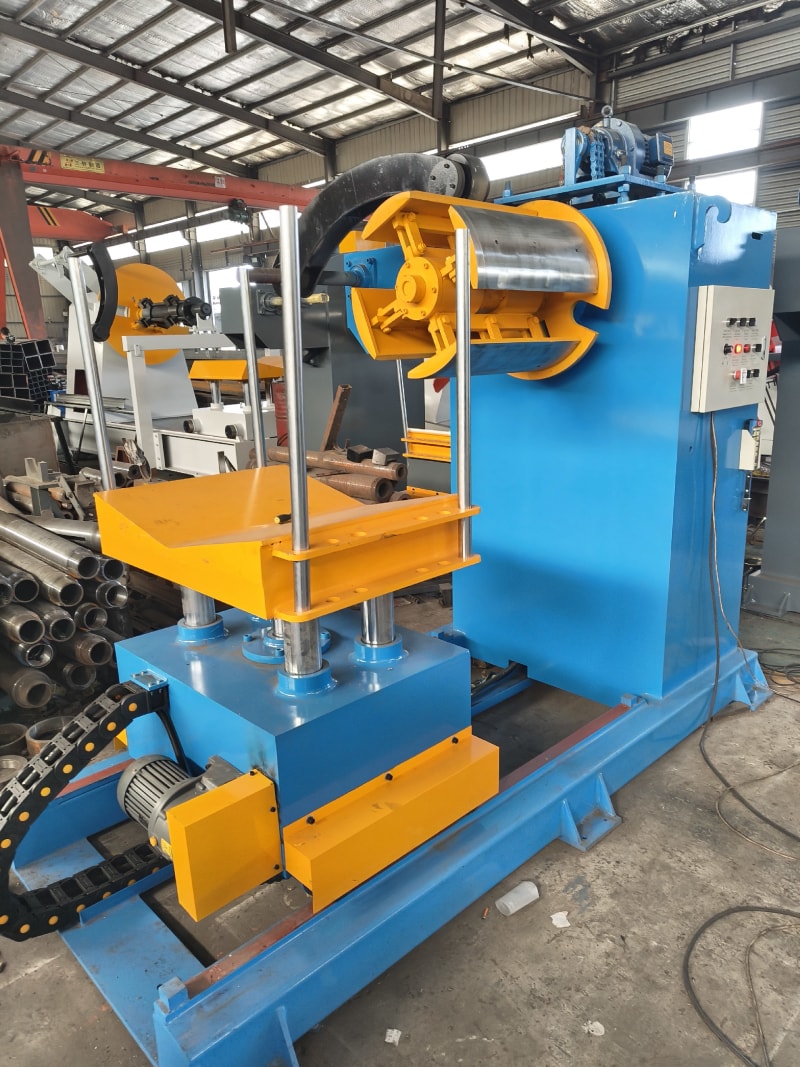

Hot selling 3t Hydraulic Decoiler with Car
Product description：
This efficient combination is specially designed for heavy coil processing. The 3-ton hydraulic decoiler provides powerful and stable uncoiling force. Its hydraulic drive core ensures that the reel firmly locks the steel coil, achieving smooth and stable material release, perfectly matching the requirements of the subsequent production line.
The five-guide-column loading car that works in coordination with it is a capable assistant for the handling and positioning of coil materials. Its unique design (equipped with five sturdy guide columns) ensures extremely smooth and vibration-free operation when carrying and lifting heavy coils. The trolley smoothly and precisely transports and lifts the coils from the storage area to the uncoiling station, achieving a fast and accurate connection with the uncoiling machine.
Product Attributes of the 3T Hydraulic Decoiler :
Dimension(L*W*H) | 1.5m*1.35m*1.75m |
Weight | 1700KG |
Hydraulic pump station | 240V, 50/60HZ, 3phase |
Power | 3KW |
Frame body | 300mm H beam structure,with 12mm welded steel |
Feeding width | 0-450mm |
Steel coil inner diameter | 470-530mm |
Capacity | 3t |
Hydraulic cylinder | Roll up cylinder with a diameter of 125mm,1 |
Electrical control system | Taiwan Delta frequency converter(5.5kw) and applying Schneider electricity control components ,frequency converter |
Bearing | NSK brand |
Procuct Attributes of the 3T loading Car:
Car lifting | Dual oil cylinder with a diameter of 90mm and a stroker of 240mm. |
Car forward movement | 450type,hydraulic motor |
Car feeding | Panel length 125mm,panel width:110mm |
Car track | Width:1050mm; length:250mm |
Car travel | HEight:705mm; Length:250mm |
Weight | 900KG |
Core Advantages:
1. High Efficiency Synergy: The decoiler and the trolley work seamlessly together, significantly enhancing the overall efficiency of material loading and uncoiling.
2. Powerful and Stable: The hydraulic decoiler provides reliable uncoiling force, ensuring continuous and smooth production.
3. Precise Positioning: The five-guide-column design endows the loading car with outstanding stability and guiding accuracy, achieving precise alignment between the coil and the uncoiling main shaft.
4. Safe and Smooth: The trolley's lifting and movement processes are extremely smooth, effectively preventing the coil from accidental sliding or toppling, ensuring operational safety.
5. Effort-saving and Convenient: Automated material handling and positioning significantly reduce workers' labor intensity and operational risks.
6. Durable and Robust:The overall structural design is solid and reliable, suitable for harsh industrial environments.
Products Display：

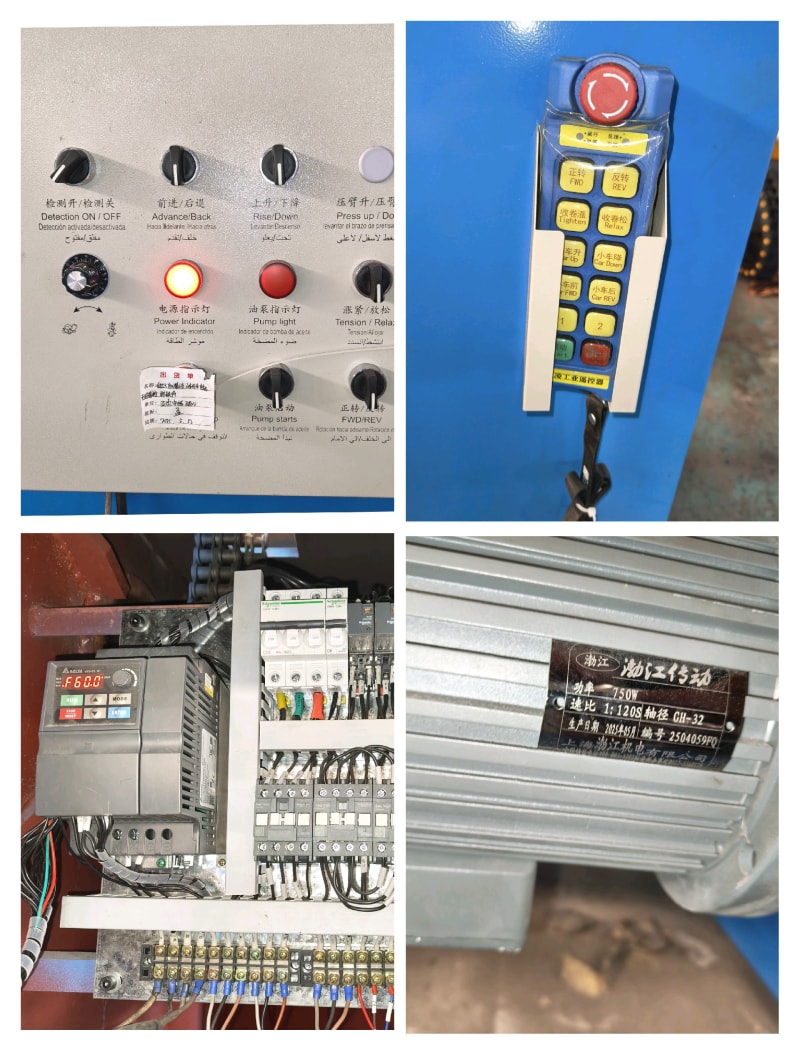

The hydraulic uncoiler is equipped with a PLC electric control system and a wireless remote control, allowing a single operator to independently complete the loading operation with convenient and efficient operation.
Equipped with first-tier domestic brand motors, it ensures worry-free quality assurance.
