Product Description:
This High-Speed Corrugated 0.18 mm thin Sheet Machine is specially produced for the thin material, the material thickness can be min 0.18mm with full hardness material.It’s speed can reach 30 m/min. It is full automatic machine which can use coil as the raw material.Full automatic from decoiler to stacker.
Technical Advantages :
1. Gearbox transmission design for efficient and precise power transfer:
Adopting a gearbox transmission structure, it can effectively reduce power loss, ensure stable and accurate power transmission, avoid problems such as slipping and lag that may occur in traditional transmission methods, and keep the equipment maintaining efficient power output during operation.
2. Excellent stability under high-speed operation:
During high-speed operation, the equipment can effectively suppress vibration and noise through the synergistic effect of its optimized mechanical structure and gearbox, ensuring stable operation. Even during long-term continuous operation, it can maintain a stable processing state, guaranteeing production continuity.
3. Strong adaptability for 0.18mm thin sheet processing:
Designed specifically for ultra-thin sheets, it can accurately match the processing characteristics of 0.18mm thin sheets. During high-speed arc tile pressing, it can prevent problems such as deformation and cracking of thin sheets caused by uneven force, ensuring processing precision and product quality.
4. Reasonable structural design for easy operation and maintenance:
The overall structure is compact and reasonably laid out, balancing the stability of high-speed operation with operational convenience. Daily maintenance does not require complex procedures, helping to reduce equipment operation and maintenance costs and improve production efficiency.
Product Details:

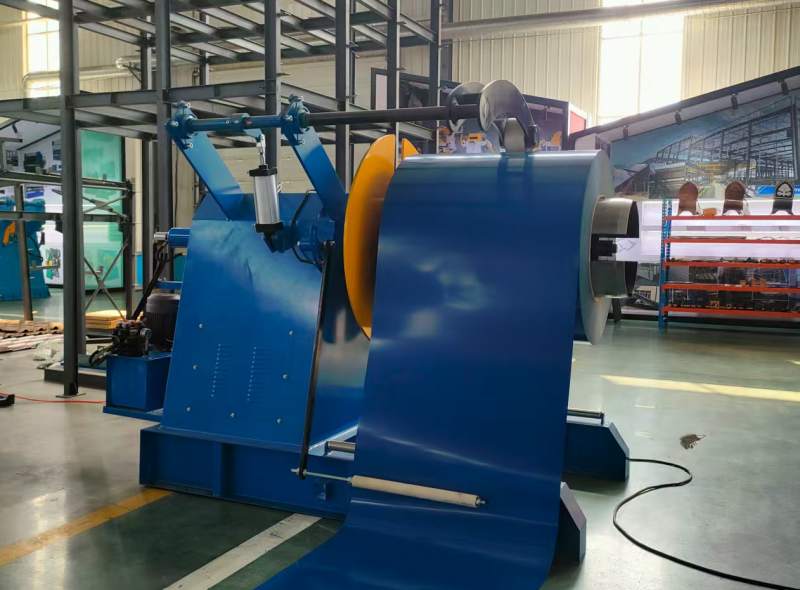

1. Hydrulic decoiler:
Capacity:10 tons (Can customized as coil's weight)
Press arm:Available, to keep the coil from loosing
Speed sensor:To match with the whole line's speed, can use for other machines too.

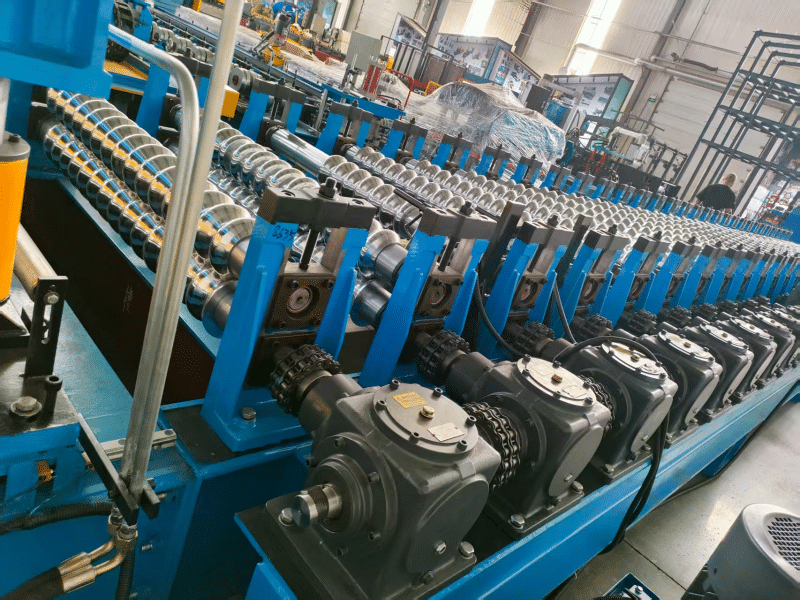

2. Roll forming machine
Roller station：26 rows,according to profile
Transmiision:By gearbox, working more stable and higher speed
Machine frame:Iron cast molding frame

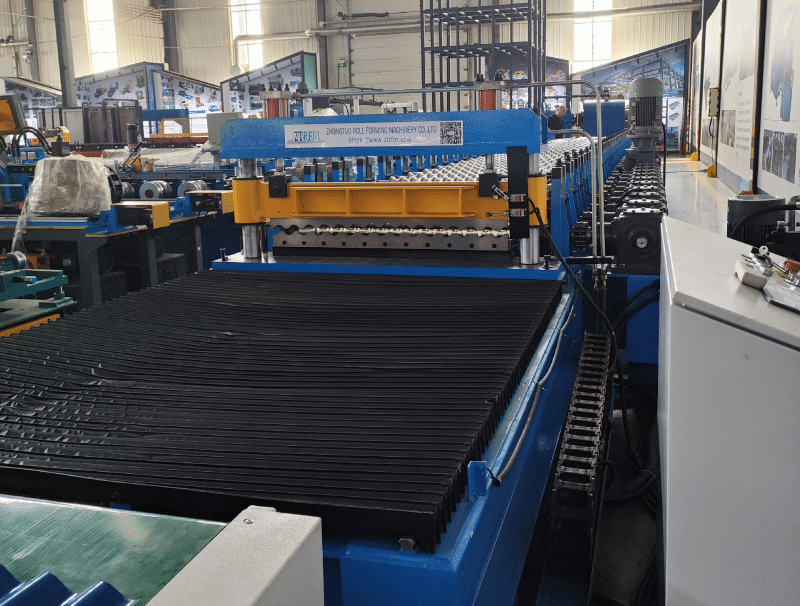

3.Hydraulic flying shear
Drive method:Servo motor drived, none stop flying shear
Cutting blade:Cr12mov, with quenched treatment
Accumulator:To improve the speed of the machine

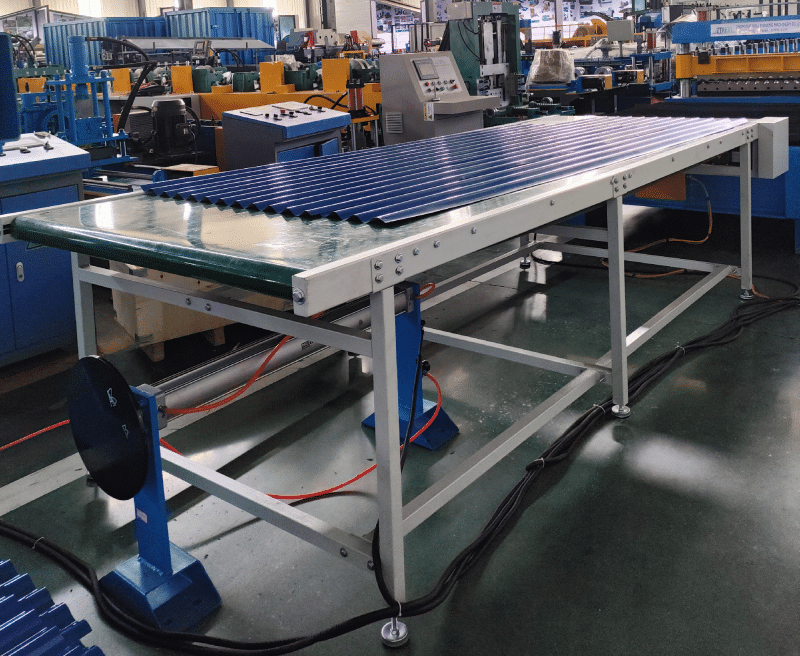

4.Receiving table:

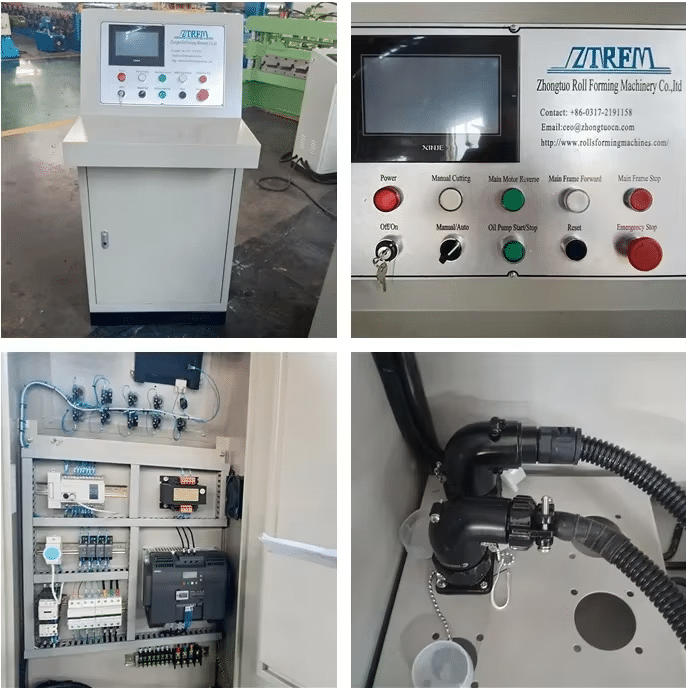

5.PLC control station
Adopted aviation plugs-easy installation
Language customized
Reached an exclusive cooperation with Siemens, with remote monitoring of machine operation, remote after-sales service, regular maintenance reminders and global guarantee.

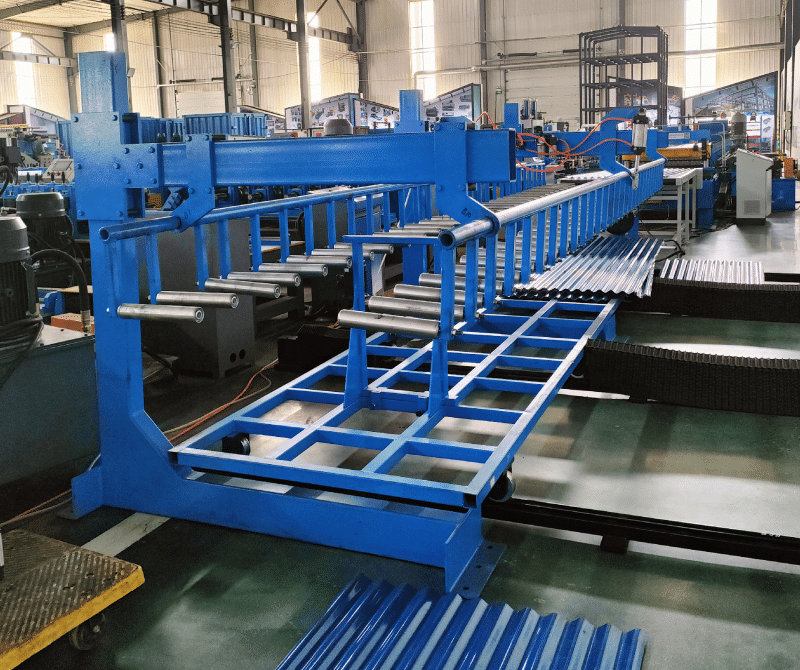

6 .Automatic stacker
Length:6m (customized as the max produced length)
Working type:Pneumatic
Function:Can receive the sheet automatically after cutting and them stack them orderly, and then covey out the sheets after producing one batch
