High-Speed Corrugated Metal Roof Roll Forming Machine
Product Description:
1. Zhongtuo's High-Speed Corrugated Roofing Sheet machine integrates the entire process from coil feeding and forming to servo tracking cutting and palletizing in one continuous operation.
2. It Equipped with a Siemens electrical control system, the machine enables remote operation and predictive maintenance through data analytics, with automatic generation of daily/monthly reports to keep equipment performance fully under control.
3. All rollers are manufactured from bearing steel,hardened through quenching to achieve a hardness exceeding HRC 58 and a coating thickness of 0.06mm,ensuring long-term durability even under high-speed opeation.
Advantges of the Corrugated roofing sheet machine:

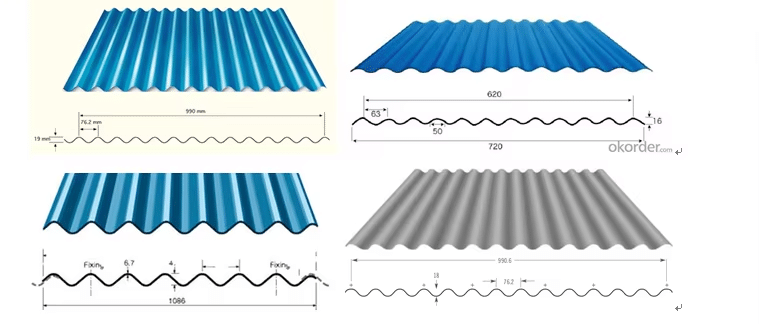

1. Excellent Drainage Performance: The curved shape of the tiles naturally forms channels and ridges, allowing rainwater to flow smoothly and rapidly down the tile surface. This design effectively reduces the time water remains on the roof, significantly lowering the risk of water seepage and backflow, thereby enhancing the waterproof reliability of the roof.
2. Outstanding Structural Strength and Stability: The continuous curved surface structure provides the tiles with excellent resistance to pressure and impact. When the tiles are laid overlapping each other, this curved structure effectively distributes external forces such as wind pressure and snow load, making the entire roofing system more stable and resilient against severe weather.
3. Unique Architectural Aesthetic Value: Curved roof tiles break the monotony of flat, straight lines, imparting an elegant, flowing contour to the roof with rich layering and dimensionality. This classic and graceful appearance significantly enhances the building's overall visual impact and artistic value, making it particularly suitable for buildings pursuing traditional, Mediterranean, Spanish, or certain retro styles.
Key Attributes:
Type | Roll Forming Machine | Tile Type | Steel |
Use | FLOOR | Voltage | 380V |
Rolling thinckness | 0.3-0.6mm | Feeding width | 1220mm |
Place of Origin | Hebei, China | Weight | 6000 kg |
Warranty | 1 Year | Key Selling Points | High Safety Level |
Core Components | motor,Pressure vessel,PLC, Engine, Gearbox | Brand Name |
|
Dimension(L*W*H) | Customized | Video outgoing-inspection | Provided |
Product name | High-Speed Corrugated Roofing Sheet machine | Usage | Building |
Color | Custimized | Cutting type | Hydraulic Cutting |
Feature | High Profit | Application | Roof Sheet Production |
Thickness | 0.3--0.8mm | Export port | Tiannjin Port |
PlC | Custimized | Cutting system | Hydraulic Automatic Cutter |
Product Dispaly:
Component of the whole production line:
No. | Name | Quantity | Remark |
1. | Decoiler | 1set | Automatic or manual for optional |
2. | Main roll forming machine | 1set | Gearbox transmission, flying shear, high speed |
3. | Control station | 1set | Siemens brand, various lauguages |
4. | Hydraulic station | 1set | With accumulator |
5. | Auto stacker | 1set | Receive sheets automatically |
Technical specifications for main parts:

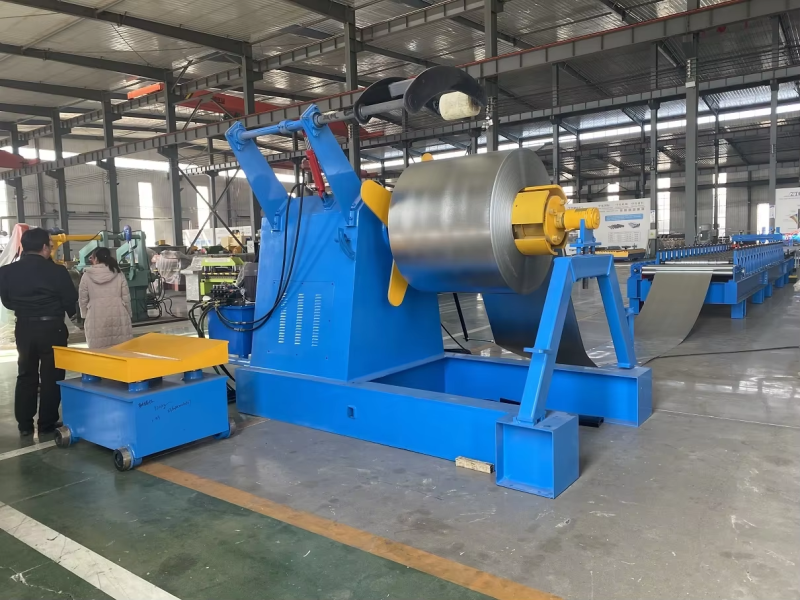

1. Hydraulic automatic decoiler:
Capacity:10 tons(Can customized coil’s weight).
Press arm:Available,to keep the coil from loosing.
Support arm:Available,to support heavy coils.
Speed sensor:To match with the whole line’s speed,can use for other machine too.

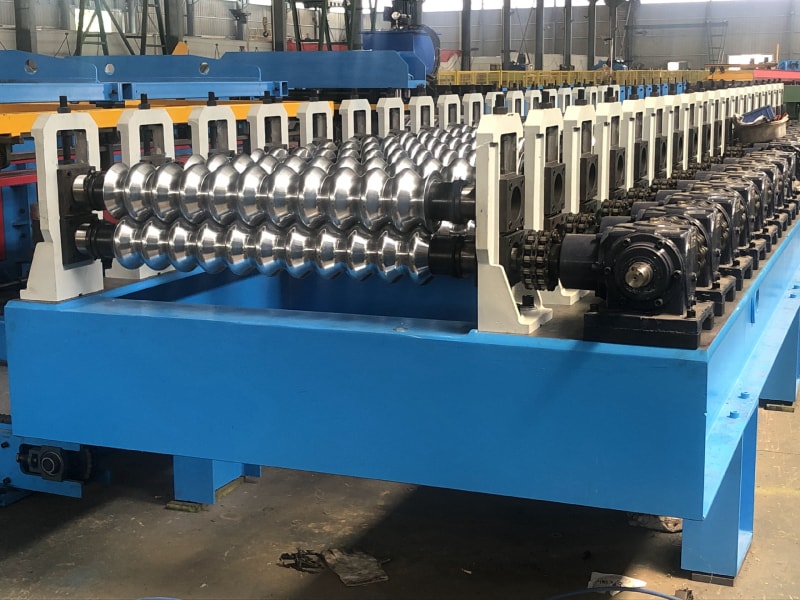

2.Roll forming machine:
Roller ststion:20 rows,according to profile.
Shaft diameter:80mm.
Transmission:By gearbox,working more stable and higher speed.
Machine Frame:Iron cast molding frame.

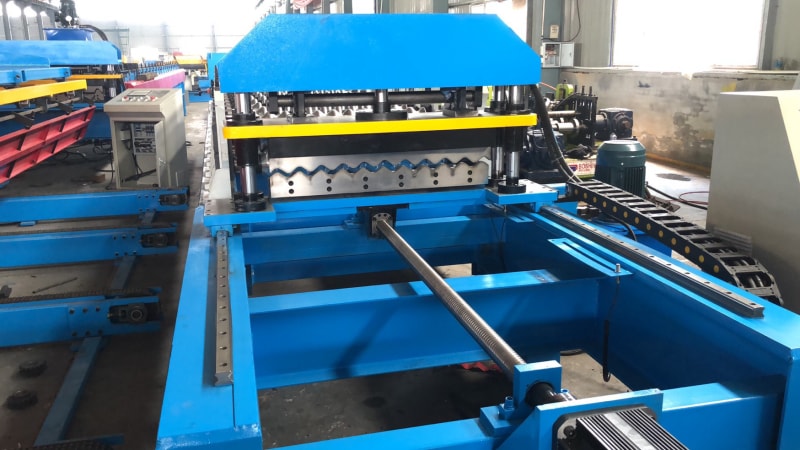

3.Hydraulic flying shear:
Drive method:Servo motor drived ,none stop flying shear.
Cutting blade:Cr12mov,with quenched treatment.
Accumulator:To improve the speed of the machine.

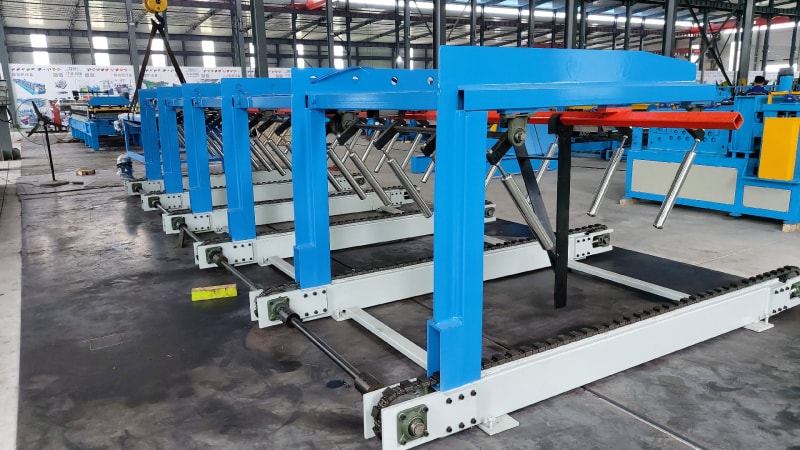

4.Automatic stacker
Length：6m (customized as the max produced length).
Working type:Pneumatic.
Function：Can receive the sheet automatically after cutting and then stack them orderly, and then covey out the sheets after producing one batch.
