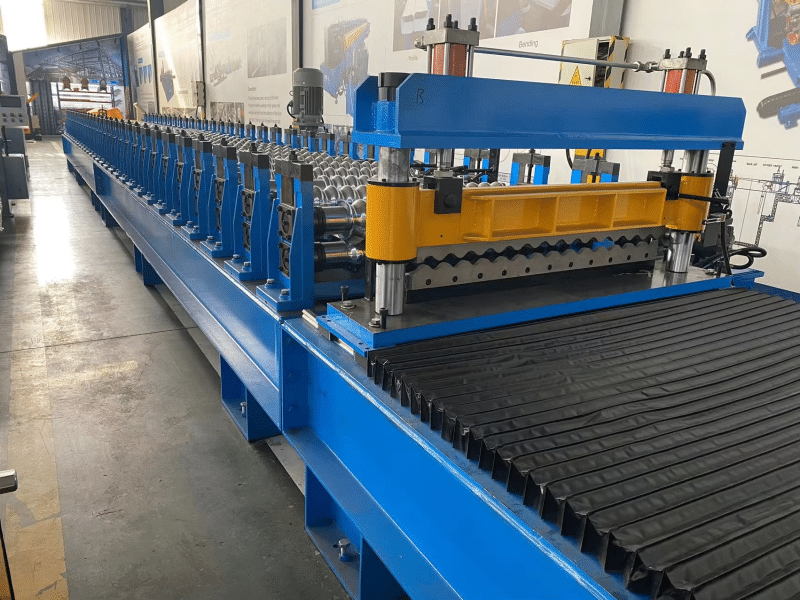

High Quality Corrugated Metal Roof Roll Forming Machine
Product Description:
Recreate the charm of classic architecture and create lasting roof beauty! Our professional High Quality Corrugated Roofing Sheet Machine is the perfect fusion of modern craftsmanship and traditional aesthetics. Specifically designed for the efficient and precise production of elegant and smooth arc-shaped roof tiles, it endows your architectural projects with unique visual appeal and profound cultural heritage. Say goodbye to the limitations and instability of manual production. This advanced automated solution ensures that each tile has a perfect and consistent arc, excellent structural strength, and outstanding durability, easily coping with various climate challenges. By choosing our equipment, you are not only investing in an efficient production line but also inheriting the classic architectural language and dressing modern roofs in an enduring artistic coat.
Core advantages of the corrugated roofing sheet machine:
1.Efficient Production, Significantly Boosting Output:The automated assembly line design far surpasses traditional manual or semi-automatic manufacturing methods, significantly increasing the production speed and overall output of tiles, meeting the demands of large-scale projects.
2.Precise Shaping, Consistent Curvature: The core shaping system ensures that each tile has a precise, smooth, and uniform arc shape, guaranteeing a beautiful, neat, and professional final roof installation effect.
3.Superior Quality, Durable Tiles:Optimized shaping and compaction processes produce tiles with a dense structure, high strength, and low water absorption rate, featuring excellent freeze-thaw resistance, wind resistance, and weathering performance, extending the building's lifespan.
4.User-friendly Operation, Stable and Reliable Performance:The equipment is designed with a high degree of automation and user-friendliness, making operation simple and easy to learn; a robust structural design ensures long-term continuous operation stability, reducing maintenance costs.

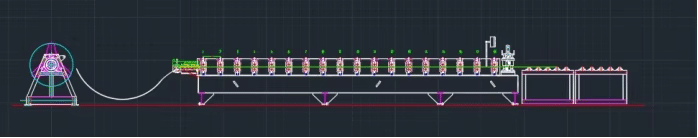

Working Flow of Quality Corrugated Roof Sheet Panel Cold Roll Forming Machine:
Key Attributes:
1.Formed Material | PPGI,GI,AI | Thickness:0.15-0.5mm Width:914mm/1450mm(customized) |
2.Decoiler | Hydraulic automatical decoiler | 5T/10T/15T |

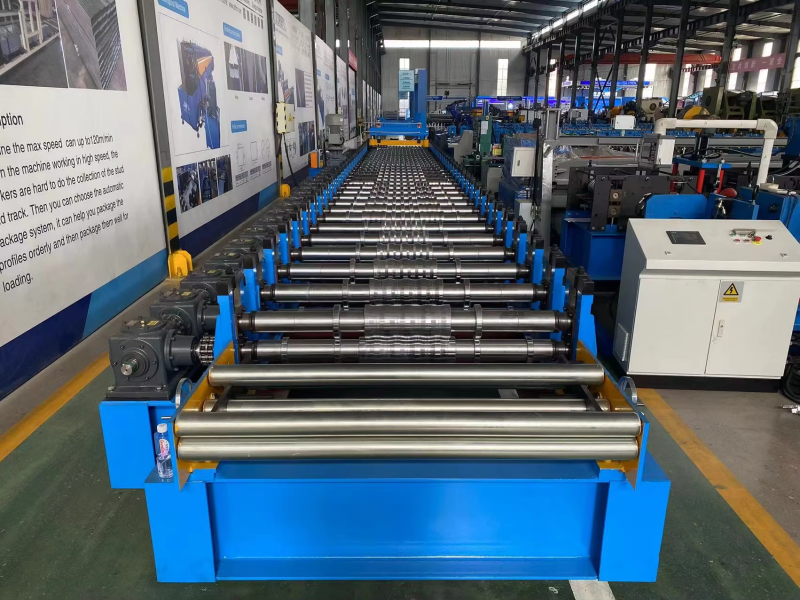

3.Main body | Roller station | 20 rows(As your requirement) |
Diameter of shaft | 80mm solid shaft | |
Material of rollers | 45#steel,hard chrome plated onthe surface | |
Machine body frame | 350 H steel | |

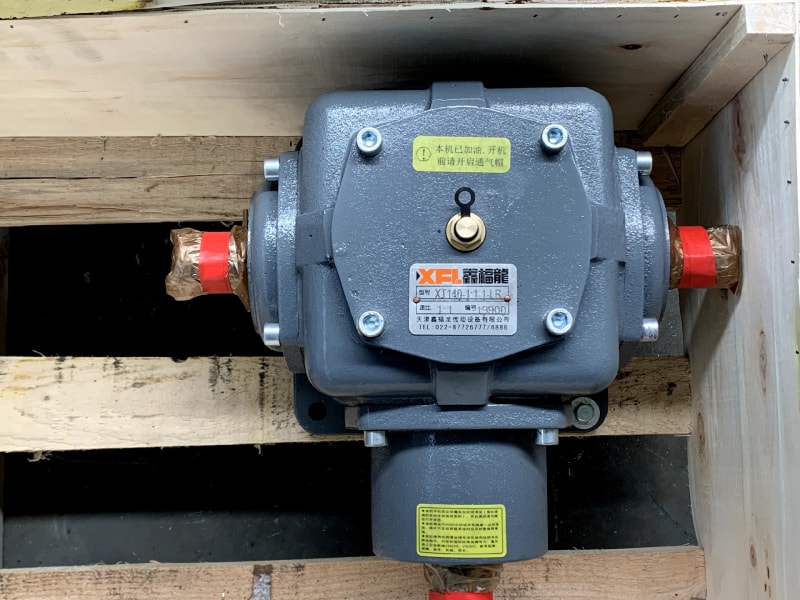

Drive | Gear box transmission | |
Dimension(L*W*H) | 10500*1650*1400 mm(customize) | |
Weight | 15T | |
Cutter | Automatic | cr12mov material, no scratches, no deformation |
Power | Motor Power | 5.5KW |
Hydraulic system power | 5.5KW | |
Voltage | 380V 50Hz 3Phase | As your requirement |
Control system | Electric Box | Customized(famous brand) |
Language | English(Support multiple languages) | |
PLC | Automatic production of the whole machine .Can set batch,length,quality,etc. | |
Forming Speed | 30-40m/min | The speed is adjustable |

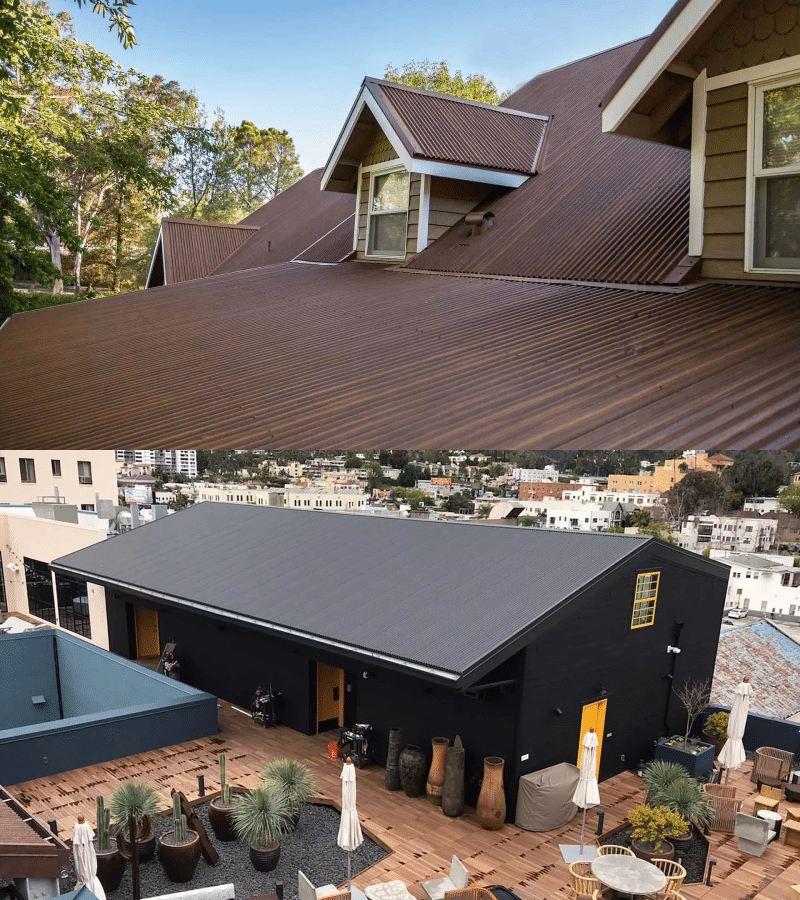

Application places of corrugated roofing sheet:
1.Cultural Tourism and Characteristic Towns: Infuse distinct cultural characteristics and visual appeal into cultural tourism projects such as antique commercial streets, theme parks, museums, tourist centers, and resorts, creating an immersive experience atmosphere.
2.High-end Homestays and Boutique Hotels: Elevate the style and taste of homestays, inns, and boutique hotels. Their unique curved designs complement the natural landscapes or rural scenery, creating unforgettable rest spaces.
3.Luxury Villas and Private Residences:We offer roof solutions that blend artistic beauty and practical value for high-end residences such as villas, estates, and private clubs, highlighting the owner's extraordinary taste and pursuit of a quality lifestyle.
4.Public Cultural Buildings and Landmarks:Applied to public buildings such as libraries, cultural centers, theaters, exhibition halls, distinctive schools, and scenic area gates, to shape a dignified, elegant, and culturally rich urban image.
