MF-2500T computer input digital change + electric button change keel equipment
Product Description：
This MF-2500T computer input digital change+electric button change keel equipment supports Uertax software, CAD software input, and cloud storage data. It's forming speed is 35m/min,When there are many punching holes, it is 2-5 meters per minute.Iy can change sizes automatically by PLC control, pressing button is compatible.
I.Products Specification
Width(web):75-250mm
Height(flange):45-51mm
Lip:8-15mm
Material Thickness:0.75-2.5mm,Q235、Q345、G550, hot-rolled galvanized steel strip
Changing sizes: Full-automatic (change sizes automatically by PLC control, pressing button is compatible)
Ⅱ.Production flow:

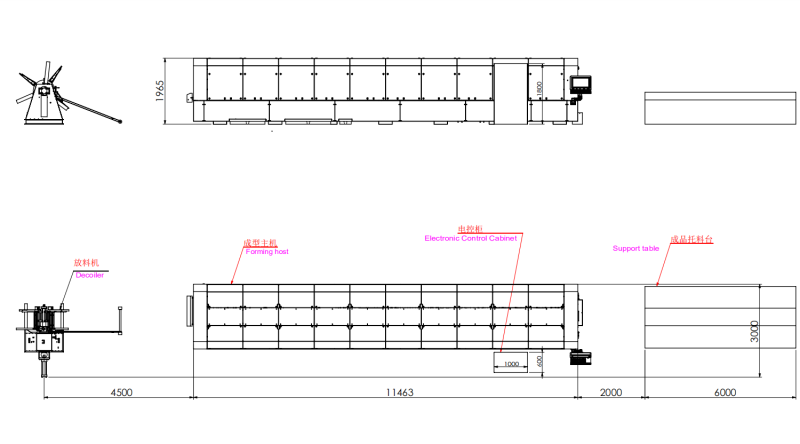

De-coiler→ Leveling Device→ Punching Device→ Roll Forming System → Punching Device and Cutting Device →Out-let table
Ⅲ：Product Details：

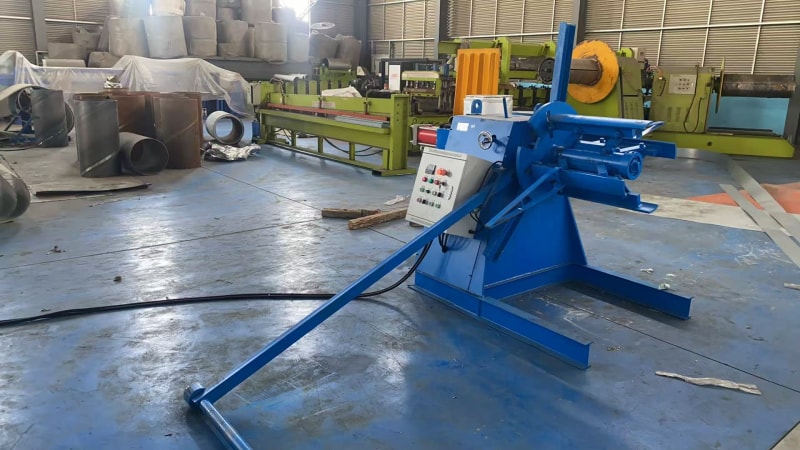

1. Hydraulic decoiler:
1).The oil pump of this hydraulic uncoiler adopts an ultra-compact design and is cleverly hung on the machine body, without occupying additional ground space, which can significantly reduce the overall floor area of the equipment. For production scenarios with limited factory space, this compact layout can effectively improve the utilization rate of the site and make the limited space more reasonably planned.
2).Its running speed is excellent, which can accurately synchronize with the working rhythm of the forming machine, and the raw material conveying is efficient and continuous. This feature directly eliminates the need for storage devices in the intermediate link, which not only reduces the equipment investment cost but also simplifies the production process, making the production of villa keels smoother and more efficient.
2.Feeding and Leveling device：
1).The feeding section is equipped with precision guide wheel sets and guide shafts, forming a dual positioning system. Through micron-level trajectory calibration technology, it ensures zero deviation of materials entering the processing channel, avoiding precision loss caused by deviation from the source.

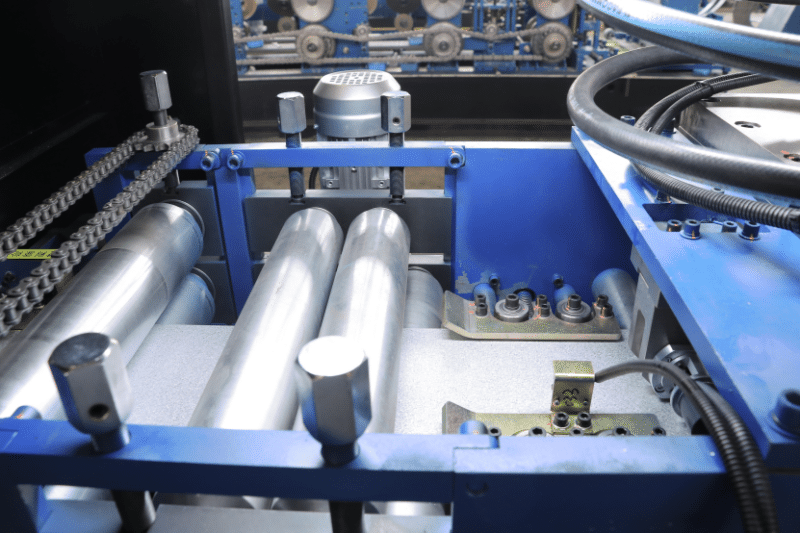

2).The levelling mechanism adopts a 2+3 group staggered wheel system layout, combined with dynamic pressure feedback algorithms. It implements adaptive levelling according to differences in material stress distribution, which can control the flatness error within 0.1mm/m, achieving ultra-precise levelling effect.
3).The feeding width adjustment is integrated with a PLC intelligent electronic control system. After inputting parameters through the touch screen, the servo drive module can complete millimeter-level width switching within 0.5 seconds, realizing unmanned specification conversion and adapting to the flexible production needs of multiple varieties.
3.Punching:

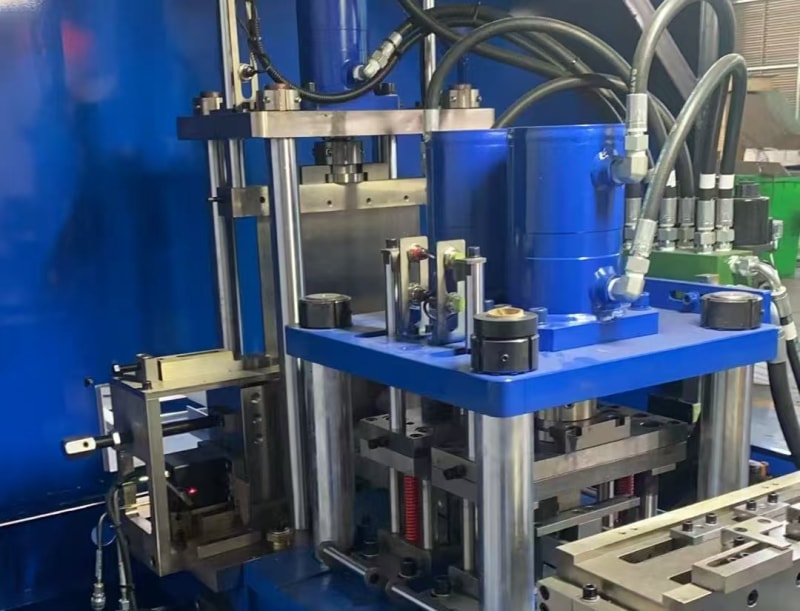

The punching section is driven by a servo motor, which has the significant advantages of high speed and high precision. This advanced servo drive system can realize rapid punching actions, seamlessly integrating with the overall production rhythm. More importantly, its stamping accuracy can be controlled within ±1mm, ensuring extremely high positioning accuracy for each hole. This level of precision is crucial for the subsequent assembly of villa keels. It can ensure a perfect fit between components, reduce assembly errors, and ultimately improve the overall quality and structural stability of the finished products.

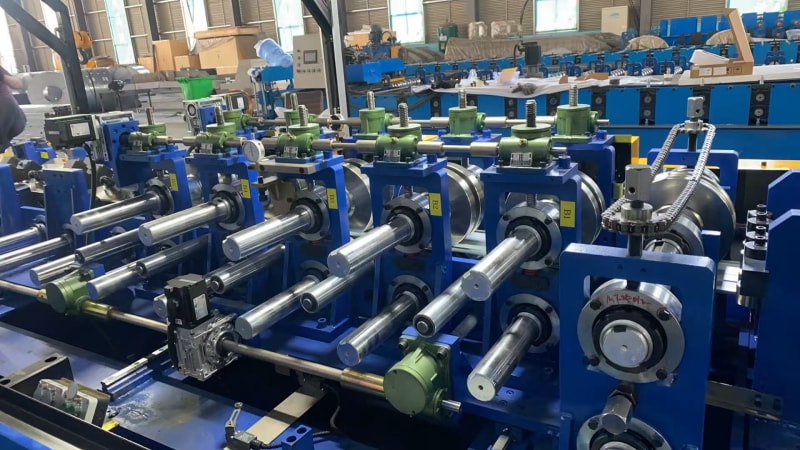

4. Roll Forming System:
1).The hydraulic station is equipped with an air-cooling device, which can timely dissipate the heat generated during the operation of the system to avoid excessive temperature. In this way, the material will not be deformed due to heat, ensuring the dimensional accuracy and structural stability of the keel during the forming process.
2).The forming speed can reach 35m/min. This high-speed performance can keep up with the overall production rhythm, greatly increasing the output of keels, meeting the needs of large-scale production, and ensuring efficient and uninterrupted production.
3).The roller is made of Dr2 material, which has high hardness after polishing and electroplating. This high hardness makes the roller durable and wear-resistant, not easy to be damaged even under long-term high-intensity use. It can also stably apply the required pressure and forming effect to the material, maintaining the forming accuracy.
4).There is a green button on the side of the machine. When the size needs to be fine-tuned, operators can easily use it for precise adjustment. This user-friendly design simplifies the adjustment process, enabling the keel to meet the size requirements quickly and accurately, and enhancing the flexibility of the production line.

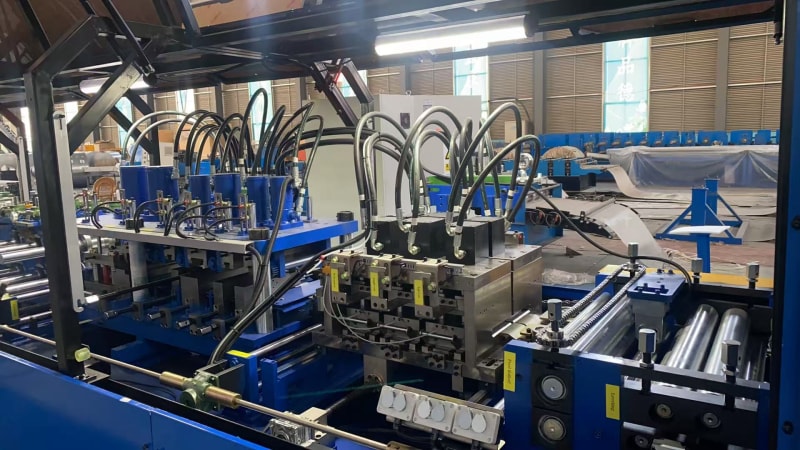

5.Hydraulic Cutting
1).It can automatically change blades according to different sizes of materials. There is no need for manual blade replacement, which eliminates tedious operation steps. It not only saves time but also reduces errors caused by manual operations, making the production process smoother and more efficient, and can quickly adapt to the cutting needs of materials of different specifications.
2).The blades used are very hard and sharp, and have the characteristics of durability. During long-term cutting operations, the blades are not easy to wear and can always maintain a good cutting state. At the same time, the cut materials have no burrs, and the cut is flat and smooth, which ensures the cutting quality of the keel and lays a good foundation for subsequent processing and assembly.

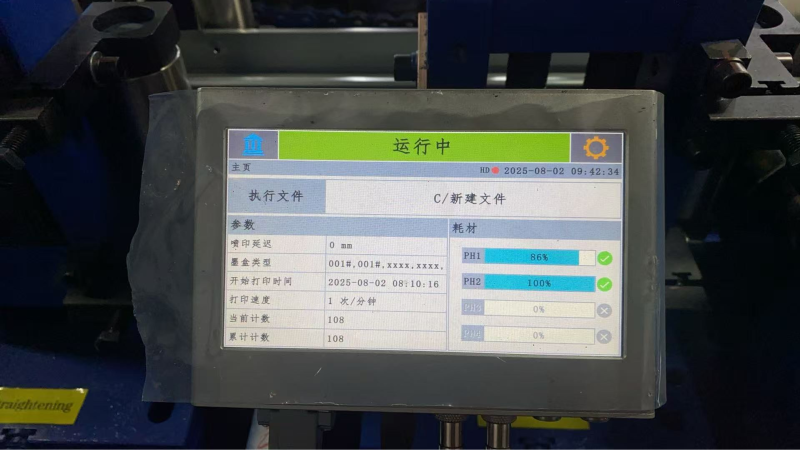

6.PLC Control System
Our PlC electrical control system can provide Siemens brand. With Siemens’remote control ,synchronous operation betweeen mobile phones ,computers and PLC can be realized.

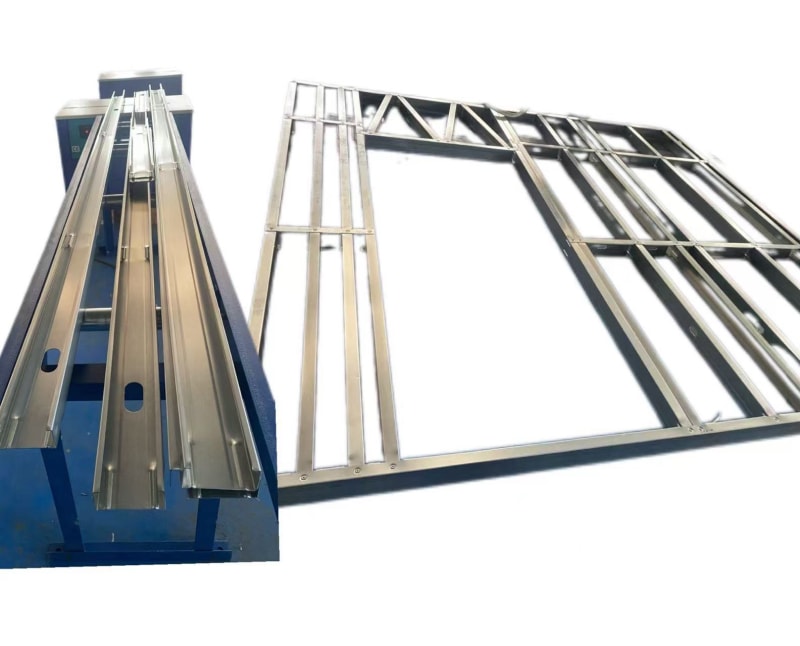

Ⅳ.Finished Products:
