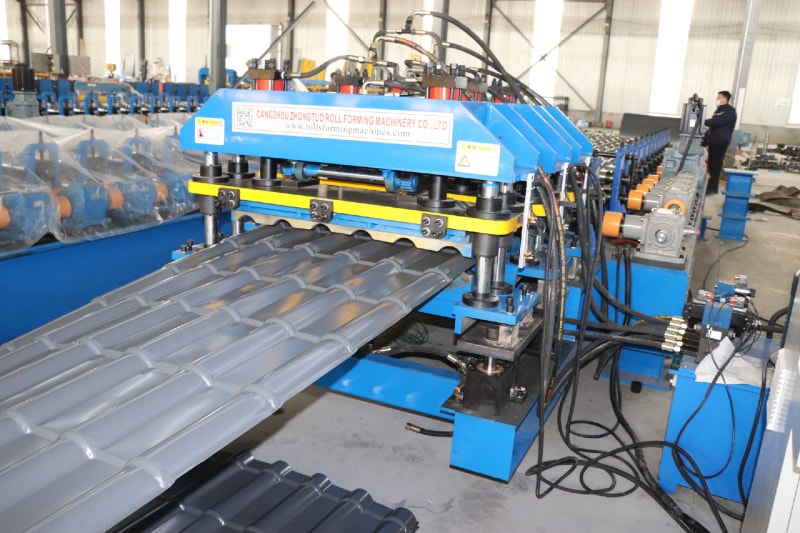

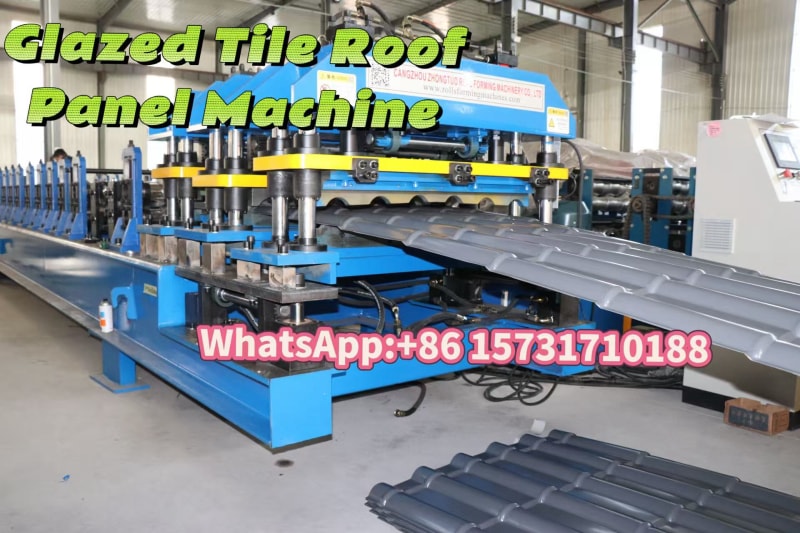

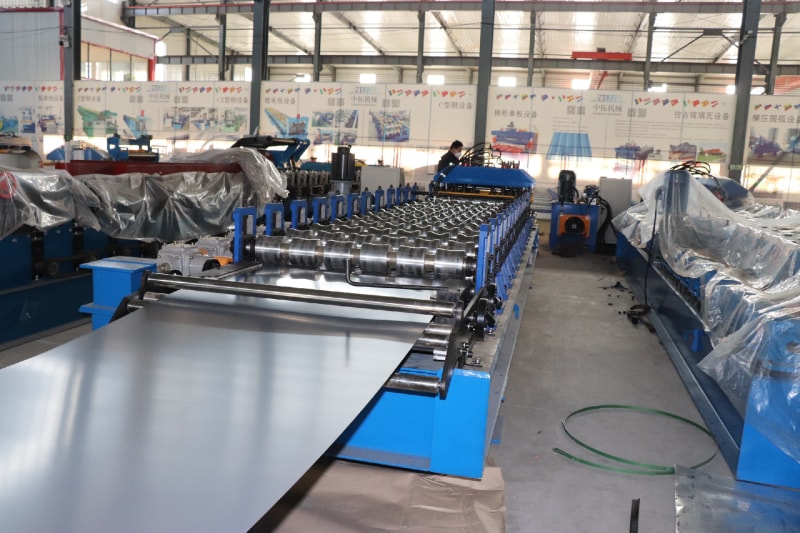

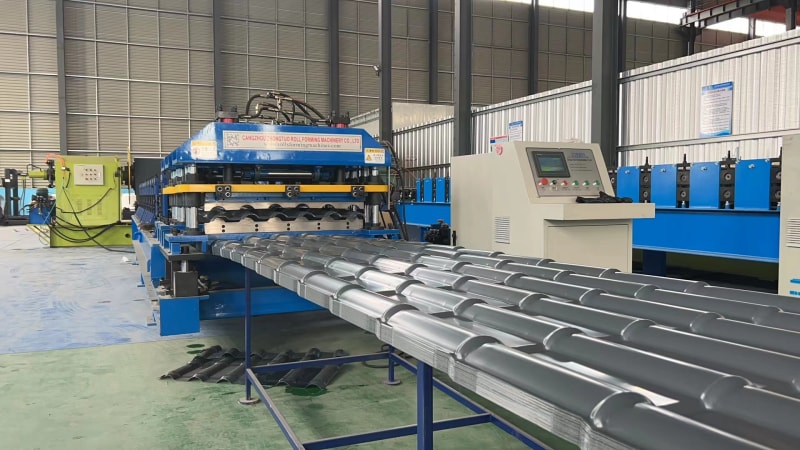

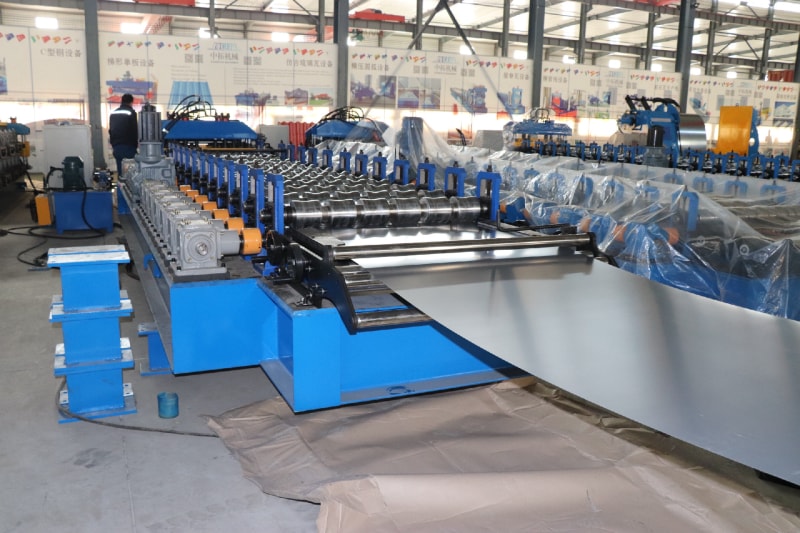

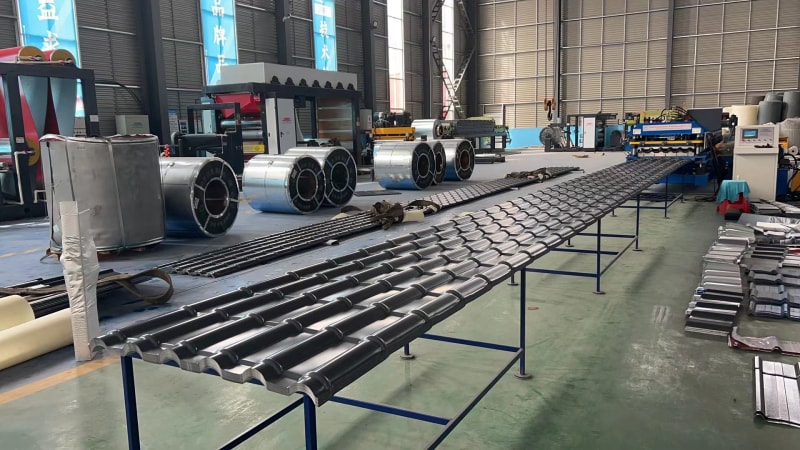

Glazed Tile Roof panel Machine with Bamboo Joint Pattern

Glazed Tile Roof panel Machine with Bamboo Joint Pattern

In the modern architectural decoration market, glazed tiles, with their unique blend of classical charm and practical value, have become an ideal choice for numerous building roofs. A device capable of stably producing high-quality glazed tiles is crucial for enterprises to seize market share and enhance core competitiveness. Today, we are proud to introduce this bamboo joint glazed tile roof panel machine, which not only precisely creates highly ornamental bamboo joint glazed tiles but also achieves breakthroughs in multiple dimensions such as production efficiency, intelligent control, and structural durability, comprehensively meeting your production needs.

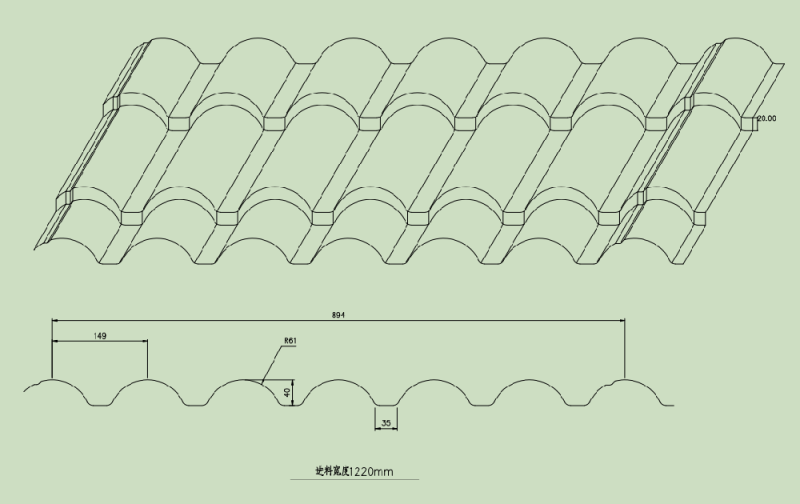

The drawing profile for your reference:

Key Attributes

Technical advantages:

I. A Perfect Combination of Beauty and Strength: Guaranteeing the Quality of Bamboo Joint Glazed Tiles

The core output of this glazed tile machine - bamboo joint glazed tiles, can be called the "beauty icon" of roof decoration. Its meticulously designed bamboo joint patterns have both the vividness of natural growth and the elegance of antiquity. When laid, they can instantly free the building roof from monotony and radiate a unique artistic charm, perfectly fitting both traditional-style courtyards, temples and modern buildings pursuing individuality.

In addition to their outstanding aesthetics, the practical performance of these tiles is also commendable. The thickness can be flexibly adjusted between 0.3-0.7mm, which can not only meet the weight control requirements of light buildings but also provide reliable protection for roofs needing stronger structural support. More importantly, their excellent wind resistance and anti-aging properties have passed rigorous practical tests. Even if exposed to complex climatic environments such as wind, sun, and rain for a long time, they can effectively resist erosion, maintain the integrity and color of the tiles, significantly extend the service life of the roof, and save users from the trouble of frequent repairs and replacements.

II. Gearbox Transmission System: Enabling High Production Efficiency

For production-oriented enterprises, efficiency is benefit. This bamboo joint glazed tile machine is equipped with an advanced gearbox transmission system, and this core design makes it a veritable "high-speed production expert". Its forming speed can reach 7-9m/min. Compared with traditional equipment, this speed means that more finished tiles can be produced within the same working time.

Imagine that in the face of an urgent order for a large engineering project, traditional equipment may need to work overtime to barely meet the deadline, while this equipment, relying on the advantage of high-speed transmission, can easily handle high-intensity production tasks and quickly complete order delivery. Whether it is regular orders for mass production or urgent needs requiring rapid response, it can help enterprises shorten the production cycle, improve capital turnover efficiency, and seize opportunities in the fierce market competition with its stable high-speed performance.

 III. Intelligent Electronic Control System: Unlocking a New Experience in Production Management

In today's era where intelligent production has become a trend, this bamboo joint glazed tile machine is at the forefront of the industry. It adopts the most advanced electronic control system in Xiamen, bringing a qualitative leap to production management.

The system supports inputting 150 order batches, which means that enterprises can preset multiple production orders with different specifications and quantities at the same time. The system will automatically sort and produce according to the settings, without the need for manual repeated parameter adjustment, greatly simplifying the arrangement process of production plans. It is particularly worth mentioning that the last tile of each order can realize the automatic sizing function. In traditional production, the tiles at the end of an order often need manual measurement and adjustment, which is not only time-consuming and laborious but also prone to size deviations. However, the automatic sizing function can accurately control the size of the last tile, ensuring that each batch of products meets the standards, reducing material waste, and lowering the error rate of manual operation, making production management more efficient and accurate.

IV. Solid Structural Design: Safeguarding Long-Term Stable Operation

The durability of the equipment is directly related to the production cost and production continuity of the enterprise. This bamboo joint glazed tile machine is "exquisite" in structural design. Every link from material selection to processing strives for stability and reliability.

The equipment frame adopts 400 H-steel as the main skeleton, combined with 30mm thick steel plates for welding. The H-steel itself has the characteristics of high strength and bending resistance. Coupled with the reinforcement of thick steel plates, the entire frame structure can withstand the huge pressure and impact generated during the production process. More importantly, after welding, the frame is also processed by planer finishing to ensure that the connections between various components are accurate and flat, avoiding problems such as equipment vibration and abnormal noise caused by unstable structure. This solid structural design can not only ensure that the equipment is not prone to deformation or damage during long-term high-intensity operation but also reduce the maintenance frequency of the equipment, extend the service life of the equipment, and provide a solid guarantee for the continuous production of the enterprise.

V. High-Quality Core Components: Forging Excellent Production Precision and Efficiency

Details determine quality. This bamboo joint glazed tile machine also spares no effort in the selection of core components to ensure that every production link can achieve the best results.

• Blades and Molds: Both the blades and molds are made of Cr12 material, which has extremely high hardness and wear resistance, and can maintain sharpness and precision during long-term shearing and forming processes. Among them, the blade plate thickness reaches 30mm, which further enhances the strength and durability of the blade, reduces the frequency of replacement due to blade wear, and lowers production costs.

• Forming and Shearing System: It adopts a guide pillar design, and the cylinder body is quenched and tempered, so its hardness and toughness are significantly improved, and it can maintain stable guidance during repeated movements. At the same time, related components are made of thick plates through finishing welding, and fixed with 8.8-grade high-strength screws. The 8.8-grade screws have extremely high tensile strength and yield strength, ensuring the firmness of the connections between various components and avoiding problems such as loosening and breaking in high-pressure working environments.

The combination of these high-quality core components makes the forming and shearing process of the equipment more stable and precise, ensuring that the size and shape of each bamboo joint glazed tile meet the design standards, and greatly improving the qualification rate of products.

Whether it is a building decoration enterprise pursuing product aesthetics or a manufacturing factory focusing on production efficiency and cost control, this bamboo joint glazed tile machine can be your ideal choice. With its excellent performance, intelligent control, solid structure, and high-quality components, it will empower your production, help you stand out in the glazed tile market, and achieve dual improvement in economic benefits and brand reputation. Choose this bamboo joint glazed tile machine, and let high-quality production go hand in hand with high-efficiency operation!

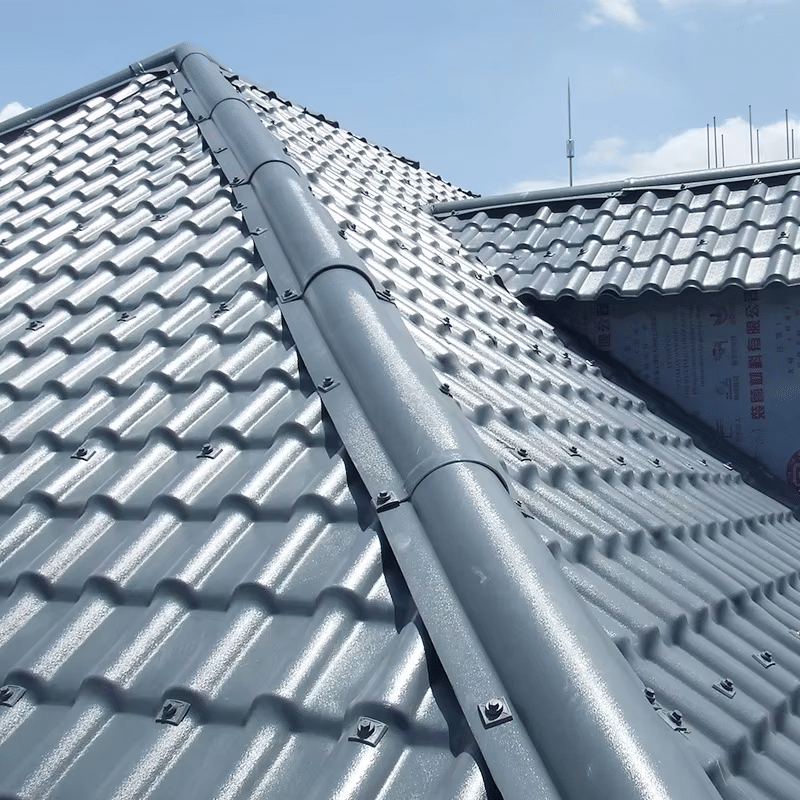

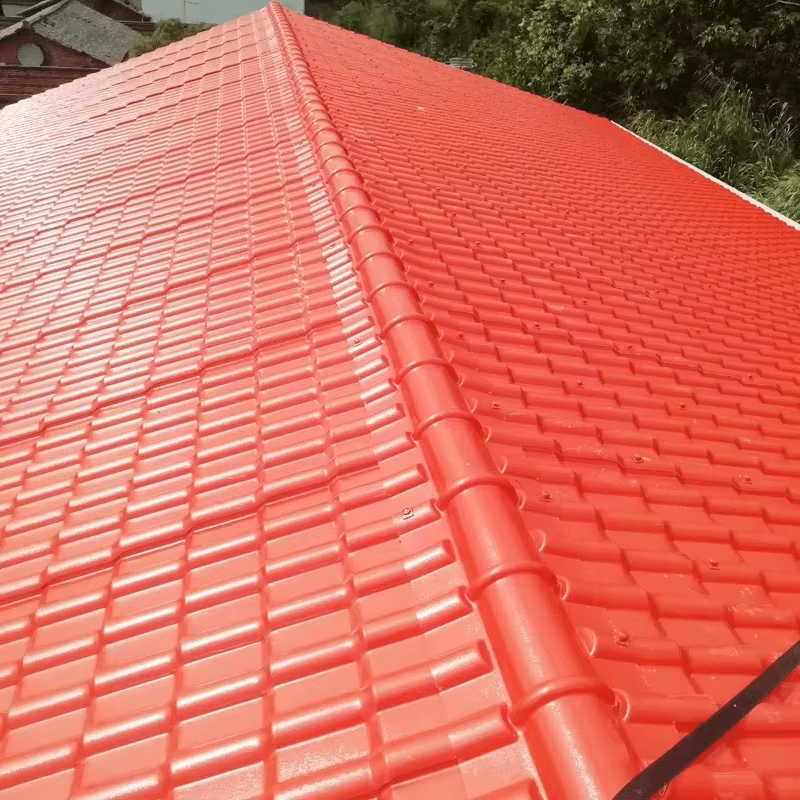

Applications of the Finished products:
