High Speed Glazed Tile Roof Machine with Gearbox Transmission

High Speed Glazed Tile Roof Machine with Gearbox Transmission

Product Description:

This High speed glazed tile roof panel machine is specifically designed for fully automatic mass production of high-quality glazed tiles. It perfectly integrates intelligent operation with efficient production, providing stable and reliable solutions for roofing material enterprises.

Operators do not need complex training. They only need to input key parameters on the intuitive touchscreen—whether it is the length of a single tile, the planned production quantity, or special process requirements for different types of tiles. The equipment can quickly respond and execute precisely. From raw material feeding to tile forming and cutting, the entire process runs automatically. This not only avoids errors caused by manual operations but also ensures that each batch of glazed tiles maintains high consistency in size, curvature, and flatness, easily meeting the quality standards of large-scale orders.

Whether for the mass production needs of small processing plants or the standardized production line configurations of large enterprises, this forming machine can help enterprises improve production efficiency, reduce labor costs, and stably output high-quality glazed tiles with its simple operation and efficient performance, providing high-quality materials that are both beautiful and durable for building roofs.

Key Attributes:

Four Core Advantages of High-Speed Glazed Tile Machines: Injecting Strong Momentum into Roofing Material Production：

1. High-Speed Forming: Gearbox Transmission for Dual Breakthroughs in Efficiency and Stability

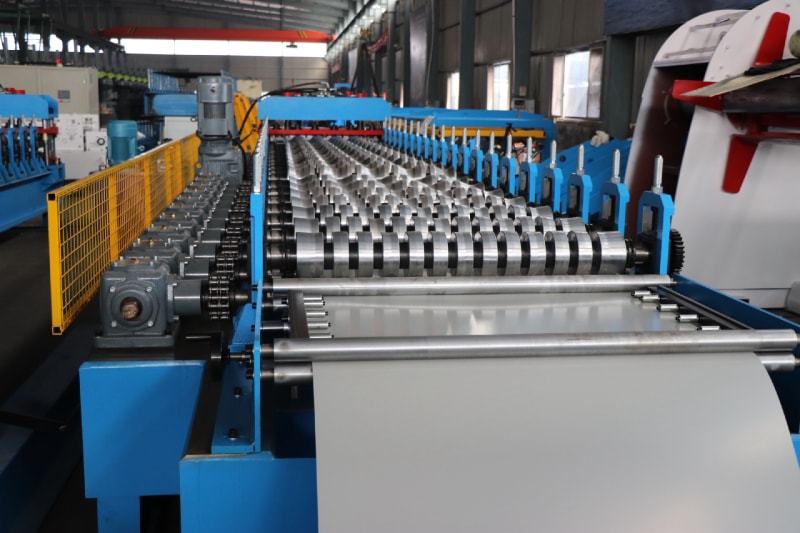

One of the core strengths of high-speed glazed tile machines lies in their high-speed and stable forming capability, thanks to the built-in precision gearbox transmission system. Compared to traditional equipment that often suffers from insufficient power, the gearbox design delivers stronger torque, enabling easy completion of forming processes even when handling thicker or harder raw materials.

In actual production, its forming speed is nearly double that of traditional models. This means more finished products can be produced in the same time, significantly shortening order delivery cycles. More importantly, the operational stability brought by the gearbox transmission is exceptional—it avoids the common issues of jamming and shaking in traditional equipment, ensuring uniform and consistent forming of every glazed tile. This fundamentally reduces defective products caused by equipment fluctuations, saving enterprises on raw material costs and rework time.

2. Precision Control: PLC and Hydraulic System Collaboration for Near-Zero Errors

The quality of glazed tiles often depends on detailed precision, and high-speed glazed tile machines control errors to a minimal range through the collaborative operation of a high-precision PLC control system and hydraulic system.

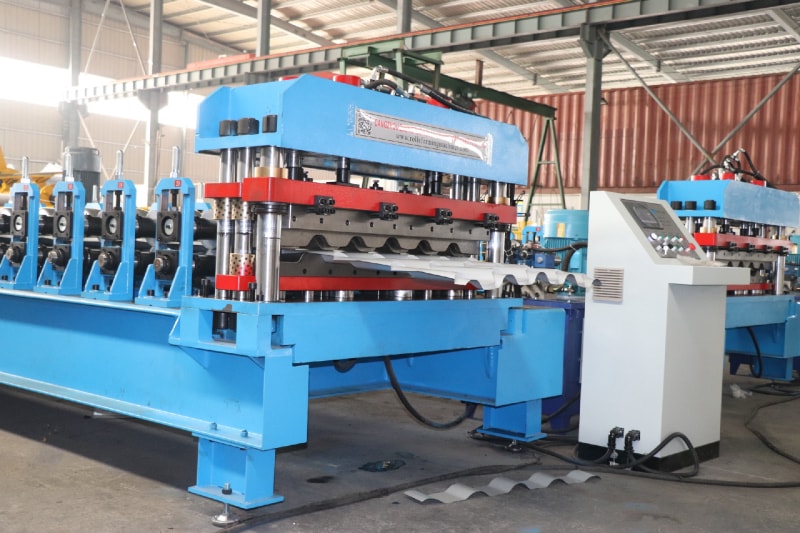

The PLC (Programmable Logic Controller), acting as the "brain" of the equipment, can accurately execute preset programs, real-time regulating parameters such as feeding speed, forming pressure, and mold coordination to ensure every operation strictly complies with technical standards. When paired with an advanced hydraulic system, the equipment delivers stable and uniform pressure, avoiding tile deformation, dimensional deviations, and other issues caused by uneven pressure. Whether it is the curvature, thickness, or edge flatness of the tiles, errors can be controlled within millimeters, perfectly meeting the strict requirements of high-end buildings for roofing materials.

3. Fully Automated Production: One-Click Start for Efficient Processes from Uncoiling to Material Receiving

The core of efficient production lies in reducing manual intervention and eliminating process bottlenecks, which is precisely achieved by the fully automated production line of high-speed glazed tile machines.

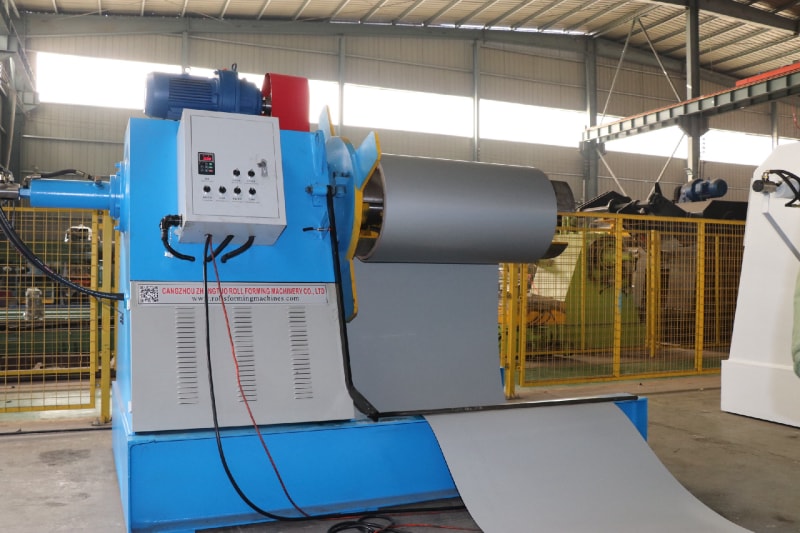

Starting from the uncoiling of raw materials, the equipment can automatically complete the entire process of feeding, forming, cutting, and material receiving: the uncoiler ensures a continuous and stable supply of raw materials, avoiding pauses caused by manual feeding; the forming process is accurately linked with the cutting action to ensure consistent tile lengths; the finished product receiving device automatically organizes the produced glazed tiles, reducing the time and errors caused by manual handling. With just one click to start, the entire production line can operate independently, not only significantly increasing output per unit time but also reducing quality issues caused by manual operation errors, thus improving both production efficiency and stability simultaneously.

4. Easy Operation and Maintenance: Reducing Training Costs and Operational Pressure

For production enterprises, the "usability" of equipment directly affects the speed of commissioning and long-term operational costs. High-speed glazed tile machines fully consider this in their design:

The operation interface is simple and intuitive, featuring graphical buttons and clear parameter displays. Even new employees can master the operation after a short training period, without spending a lot of time learning complex operational logic. In terms of daily maintenance, the key components of the equipment are reasonably arranged and easy to disassemble. Routine inspections and part replacements can be completed without professional technicians. For example, core components such as the gearbox and hydraulic system are equipped with independent maintenance windows. During regular maintenance, lubrication, cleaning, and other tasks can be completed with simple operations, greatly reducing the enterprise's training costs and operational pressure, and ensuring the equipment always maintains optimal operating conditions.

With its high-speed and stable forming capability, precise control technology, fully automated production processes, and convenient operation and maintenance features, the high-speed glazed tile machine has become an ideal choice for modern roofing material production. Whether it is increasing output, ensuring quality, or reducing costs, it can bring tangible benefits to enterprises, helping them gain an advantage in the fierce market competition.

5.Sturdy and Durable, Long-Term Operation: Quality Assurance of the Glazed Tile Forming Machine

This glazed tile forming machine excels in durability design, ensuring long-term stable operation and reducing equipment replacement costs for enterprises.

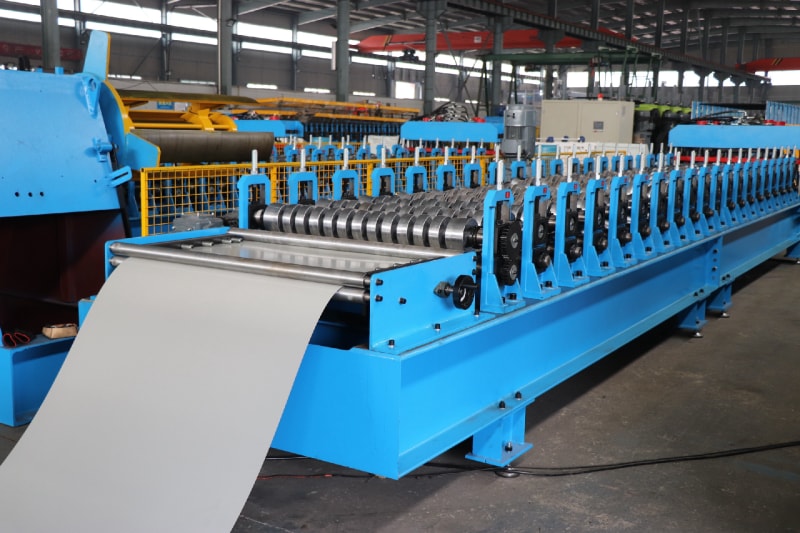

In terms of the body structure, the machine frame is specially equipped with cross braces and diagonal braces. Through scientific mechanical design, the overall rigidity is significantly enhanced. This reinforced structure not only keeps the equipment stable during high-intensity production but also effectively resists stress deformation during long-term operation. Even when facing continuous impact from thick and heavy raw materials, it can always maintain precise forming accuracy.

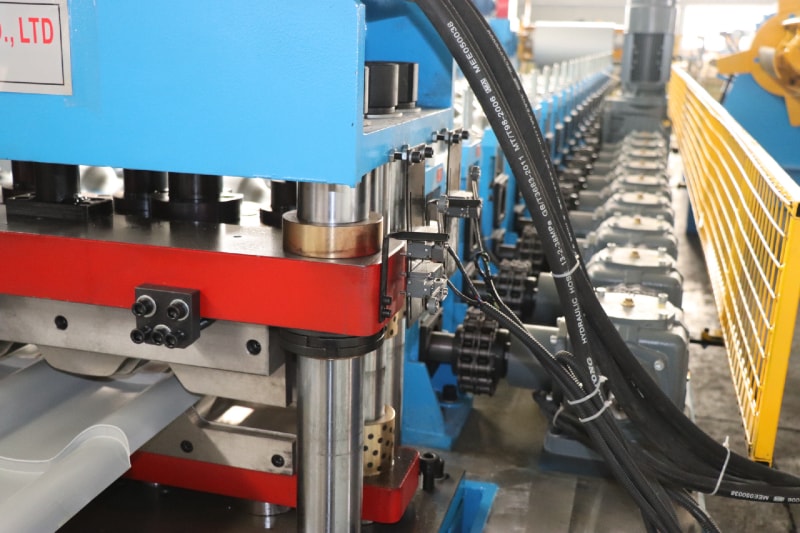

The durability of core components is also proven: both the rollers and bearings undergo a 0.3mm thick chrome plating process. The chrome plating layer not only significantly increases the surface hardness of the components, enhances wear resistance, and extends service life but also forms a dense protective film. This film effectively isolates moisture and corrosive substances, fundamentally preventing rust, reducing downtime caused by component corrosion, and allowing the equipment to maintain efficient operation in various production environments.
