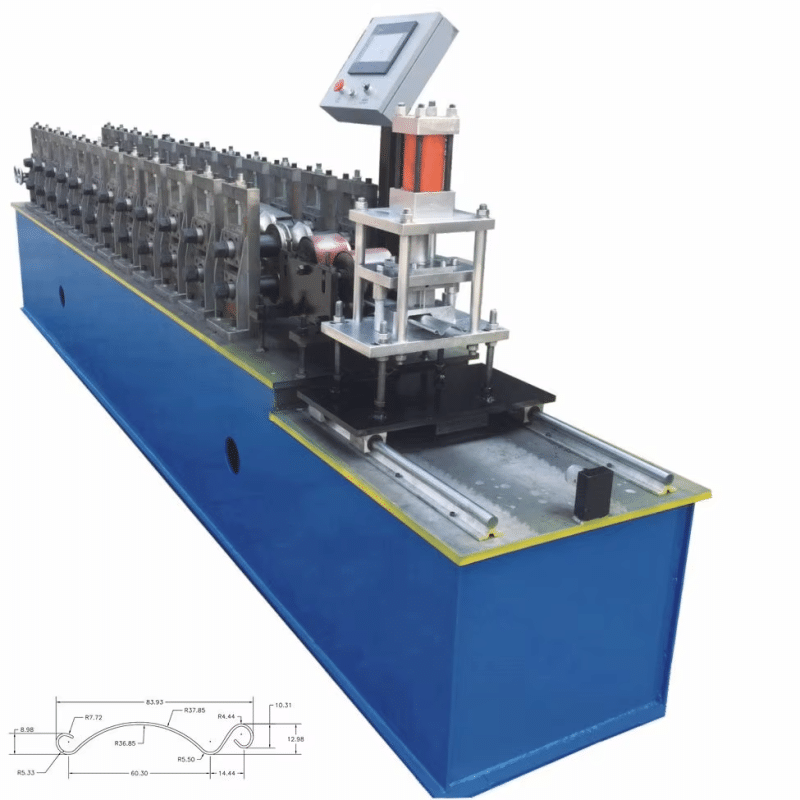

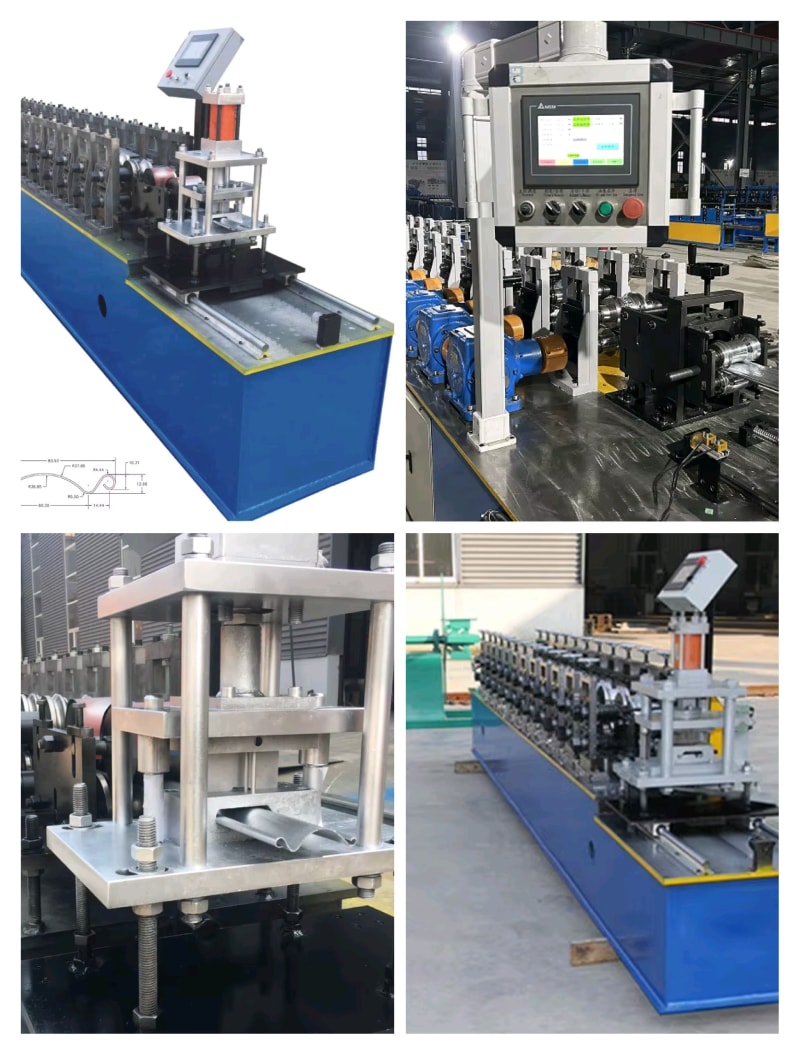

High Speed rolling shutter door making machine
Product Attributes
| 1.Formed Material | GI | Thickness:0.6-1.2mm |
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) |
| 3.Main body | Roller Station | 27 rows (As you requiement) |
| Diameter of shaft | 50mm solid shaft | |
| Material of rollers | 45# steel,hard chrome plated on the surface | |
| Main body frame | Metal steel welded | |
| Drive | Chain transmission | |
| Dimension(L*W*H) | 5500*800*1200(customize) | |
| Weight | About3T | |
| 4.Cutter | Automatic | cr12mov material ,no scractches,no deformation |
| 5.Power | Motor Power | 7.5KW |
| Hydraulic system power | 5.5KW | |
| 6.Voltage | 380V 50HZ 3Phase | AS your requirement |
| 7.Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine.Can set batch,length, quantity,etc. | |
| 8.Forming speed | 20-25m/min(customized) | Speed is adjustable to customer's request |
Production Description：
The Cangzhou Zhongtuo Roller Shutter Slat roll forming machine is designed to produce roller shutter slats, PU slats (fire curtains), and venetian blinds for various applications, including garage doors, commercial counter shutters, fire doors, industrial settings, public offices, kiosks, pavilions, and windows. It can process materials such as galvanized steel, stainless steel (304 and 316), aluminum, accommodating thicknesses from Gauge 16 to Gauge 24, commonly used in the U.S., or from 0.6 to 1.5mm for the international market.
Popular profiles produced include flat slats, curved slats, perforated slats, 55 foam slats, 77 foam slats, 90 foam slats, and C50, C80, and Z90 venetian blinds.
Cangzhou Zhongtuo is capable of customizing roller shutter slat roll forming machines to meet your high-precision requirements,ensuring a smooth surface, burr-free finishes, and precise punch holes. For micro-perforation slats, we can achieve a tolerance of 0.3mm in hole spacing using a servo feeder system. Additionally, our roll forming machines can produce various accessories,including octagonal tubes, rails for slat doors, guide channels, and different types of bottom bars (I, T, and L shapes). No matter which line you choose, ZTRFM Machinery guarantees high-quality, functional profiles.
Technical Features：
1. Advanced materials and processes:
*Key components are made of high-strength alloy steel, featuring high hardness, wear resistance and long service life.
* The surface of the rollers is often treated with hard chromium plating and mirror polishing, which significantly reduces scratches on the plate and improves the appearance of the product.
*The cold bending forming process is completed at room temperature, maintaining the material strength, achieving precise forming of complex sections, and being energy-saving and efficient.
2.Exceptional precision control:
*An intelligent sensing system monitors the material status in real time, enabling closed-loop feedback control to ensure precise feeding and positioning.
*Servo drive and flying saw cutting technology dynamically track and accurately cut the material during continuous movement, resulting in smooth cuts and minimal length errors.
*Digital operation (PLC + touchscreen): Parameters can be set conveniently and intuitively. The system automatically calculates critical dimensions (hole spacing, length), eliminating human errors and ensuring product consistency.
3. Highly automated integration:
*Full-process automation: Integrates uncoiling, leveling, feeding, forming, punching, sizing and cutting, bending, material collecting and other processes to achieve "one-key" continuous production.
*Efficiency leap: The efficiency of automated assembly line operations far exceeds that of traditional single-machine production. The production speed is adjustable, which greatly improves production capacity and shortens the delivery cycle.
* Double improvement of safety and quality: Reduce manual intervention in dangerous links to ensure operation safety; automated production ensures precise product dimensions, highly consistent appearance, and stable and reliable quality.

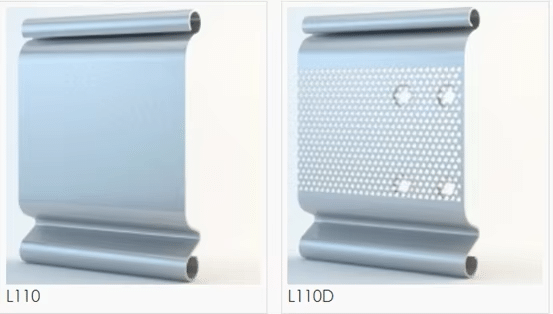

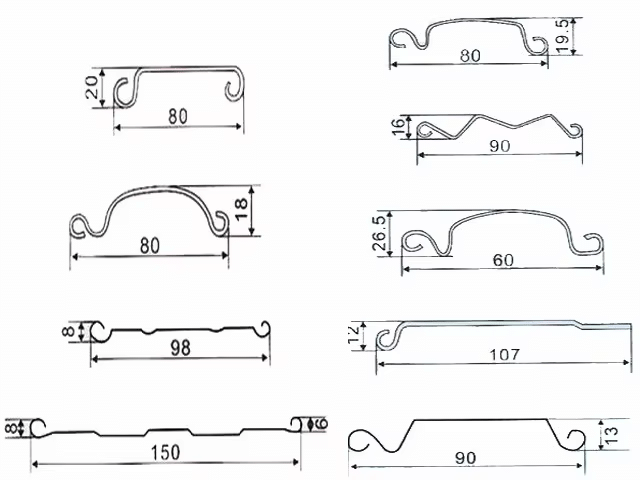

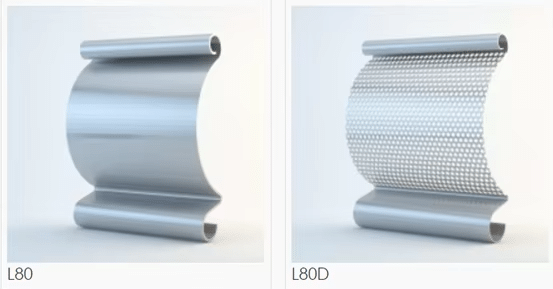

Here are hot sale drawings and finished products for your reference:
Products Display:
