Rolling Shutter Garage Doors Rolling Forming Machine made for Australia
The Australian-style roller shutter garage door rolling forming machine is an advanced automated equipment, specially designed for the efficient and precise production of the core components of Australian-style roller shutter garage doors - door panels and tracks. It adopts a precise cold-rolling and pressing forming process to continuously process high-strength metal coils (such as galvanized steel sheets, color steel sheets) into flat, sturdy, and precisely sized door panels or tracks. The entire machine operates smoothly with a high degree of automation, making it an indispensable key equipment in modern garage door manufacturing.
Core Advantages:
1. High Efficiency and Intelligence: With a high degree of automation, it can achieve continuous feeding, precise molding, and automatic length cutting, significantly enhancing production speed and capacity.
2. Outstanding Quality: The precise roller design and robust frame structure ensure that the produced door panels have a smooth surface, free of scratches and with uniform ripples. The tracks are straight and accurate, and the door operation is smooth and durable.
3. Sturdy and Reliable: The equipment has a stable structure, and the key components are wear-resistant and durable, ensuring long-term stable operation even under continuous high-intensity production conditions.
4. Convenient Operation:The design is user-friendly, with relatively simple mold replacement and easy maintenance, reducing operational difficulty.
5. Economical and Energy-saving:The efficient production process and optimized design help to reduce unit production costs and energy consumption.

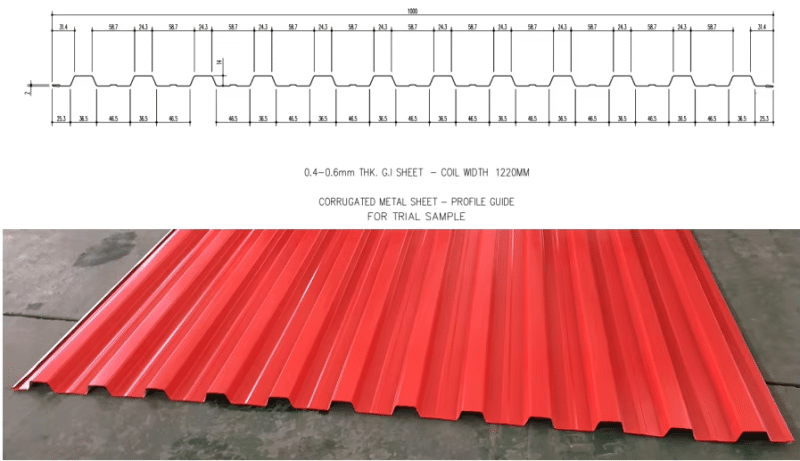

Here are hot sale drawing and finished products for your reference:
Product Attributes:
1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm Width:1220mm/1450mm(customized as drawing) |
2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） |
3.Main body | Roller station | 26 rows(As your requirement) |
Diameter of shaft | 90mm solid shaft | |
Material of rollers | 45# steel, hard chrome plated on the surface | |
Machine body frame | 400 H steel | |
Drive | Chain transmission | |
Dimension(L*W*H) | 12500*1800*1600(customize) | |
Weight | 10.5T | |
4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
5.Power | Motor Power | 7.5KW |
Hydraulic system power | 5.5KW | |
6.Voltage | 380V 50Hz 3Phase | As your requirement |
7.Control system | Electric Box | Customized(famous brand) |
Language | English(Support multiple languages) | |
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
8.Forming speed | 15-20m/min | The speed is adjustable |
Application of the finished product:
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts:φ80mm
Number of rollers: 26 rollers
Separated molding to make sure shape beautiful.
Main power: 15kw（cycloidal planetary gear speed reducer）

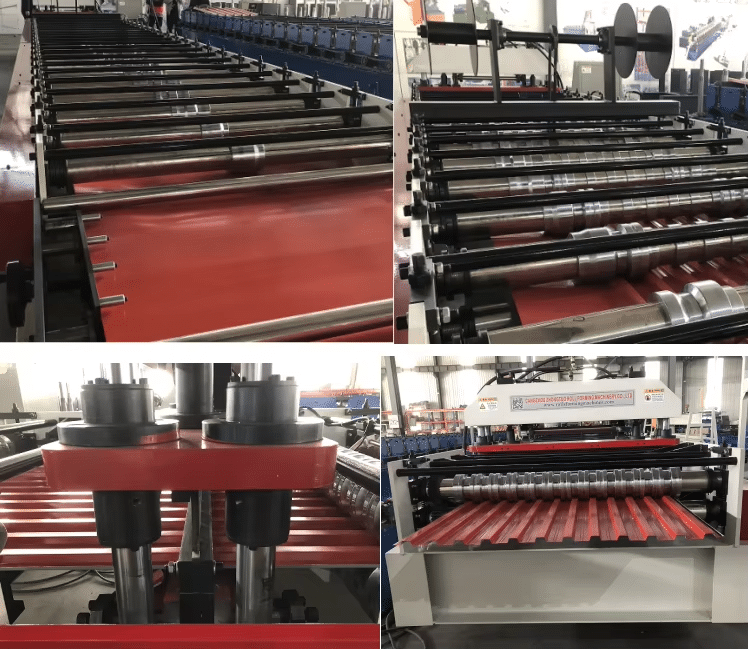

Products Display:
