Product Description:
Crafted specifically for the Hot-selling AG panel Roll Forming in the U.S. market, this trapezoidal cold roll forming machine stands as an efficient solution in the metal processing field. Leveraging multi-pass precision rolling forming technology, it can efficiently process various materials such as galvanized steel sheets and color-coated sheets (with a thickness of 0.3-1.0mm) into standard trapezoidal structures, boasting minimal forming precision errors. It perfectly meets the installation requirements of scenarios like building roofs and industrial walls. Equipped with an intelligent automatic control system, the machine can monitor production status in real-time, ensuring a stable output of 15-20 meters of finished products per minute. It balances high-speed production with low failure rates, significantly reducing later maintenance costs and providing reliable support for mass production of AG panels.
Technical Advantages:
1.Gearbox design transmission-Stable and high speed
2.Our own Updated design-Easy installation and operation.
3.Full automatic-save labors.
4.Rollers with bearing inside which can eliminate linear velocity inconsistency,it can make the final product perfect.
5.Hydraulic pre-cutting device:fully use the left material prevent waste material
Key Attributes:
Type | Tile Forming Machine | Tile Type | Colored Steel |
Use | ROOF | Voltage | 440V, 220V |
Rolling thinckness | 24-26 gauge(0.4-0.7mm) | Feeding width | 40-7/8 inch |
Place of Origin | Hebei, China | Weight | 6000 kg |
Warranty | 2 years | Key Selling Points | GOOD QUALITY |
Core Components | motor, Gearbox, PLC, Pressure vessel, Bearing, | Brand Name | ZTRFM |
Dimension(L*W*H) | 8.5*1.5*1.5m | Machinery Test Report | Provided |
Video outgoing-inspection | Provided | certificate | CE,ISO |
Drive mode | gearbox | Control system | PLC |
After-sales Service | Service USA local service,Machinery | Cutting system | Hydaulic Cutting |
Raw material | PPGI PPGL GI GL | advantage | with Hydtaulic pre-cutting,save material |
Operate style | Full automatic easy operation | Decoiler | Buy machine give you manual type as free |
Forming Speed | 15-20m/min(50-60 ft/min) |
Application of the Finished Products：
Product Details:

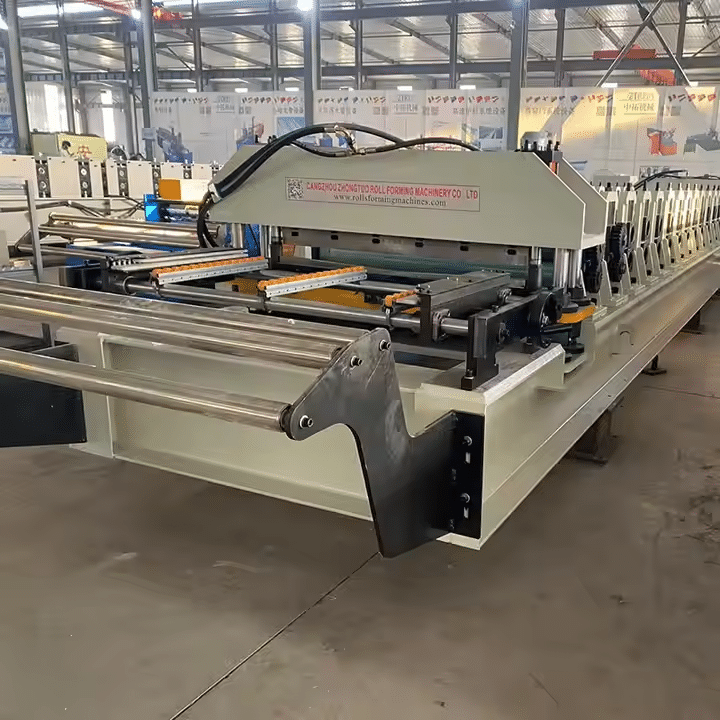

1. Feeding Device:
1).Three pulls and one press：With several support rollers，to feed the material more smoothly.
2).Rubber wheels:prevent the material surface from being damaged ,and feed the material more easily and quickly.
3).Hand wheels:to adjust the feeding size,more conveniently
4).Manual pulling knife:up layer and down layer with manual cutter to cut feed material more easily.

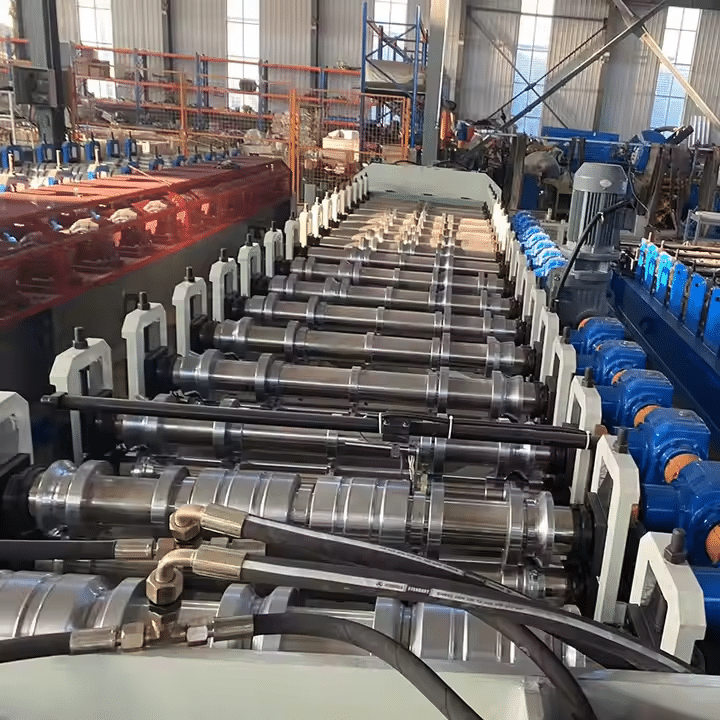

2. Forming Device:
1).For all of our rollers, spacers and shafts, we all mark numbers on it, it’s very convenient for you to maintenance the machine in the future.
2).There is ball bearings inside the rollers, to make all the rollers run at same speed when machine is run.
3).Because the rollers inside with ball bearings, our rollers is bigger than others, so work speed is faster.
4). All rollers and spacers, we do 0.3mm thickness chrome coating, to increase hardness and anti-rust. Some factories maybe use 0.1-0.2mm chrome coating.
3. Transmission:
Gearbox design-transmission speed ratio 1:1, The transmission is more stable.

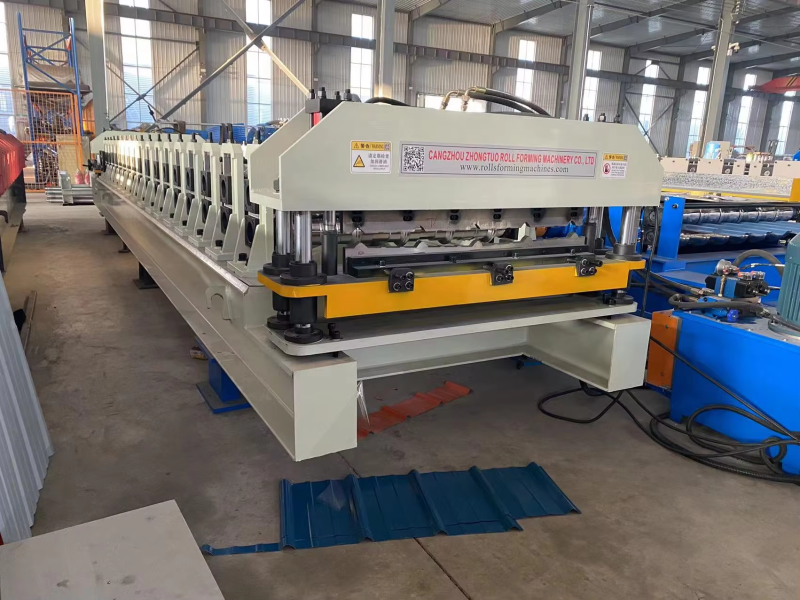

4.Flying cutting system
Hydraulic tracking cutting with servo motor.
We use four pillars cutting system structure, it can make sure the cutting stable.

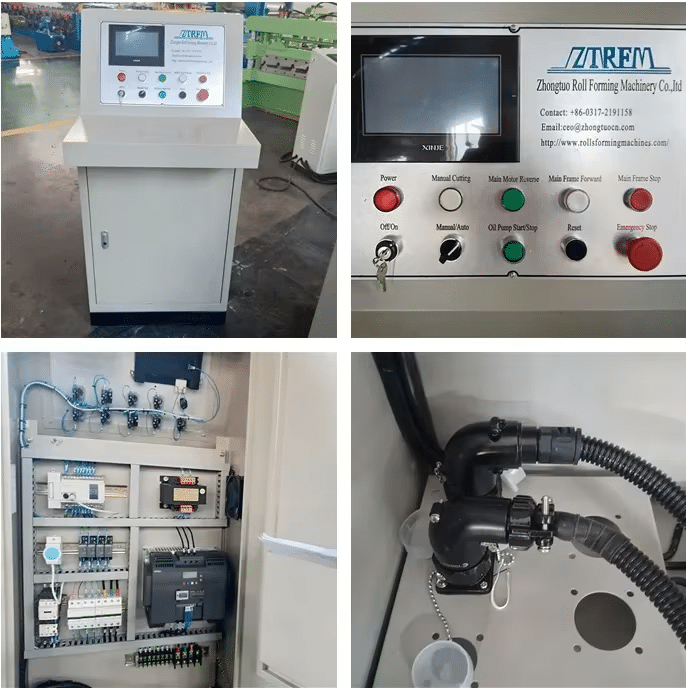

5.PLC control station
Adopted aviation plugs-easy installation
Language customized
Reached an exclusive cooperation with Siemens, with remote monitoring of machine operation, remote after-sales service, regular maintenance reminders and global guarantee.

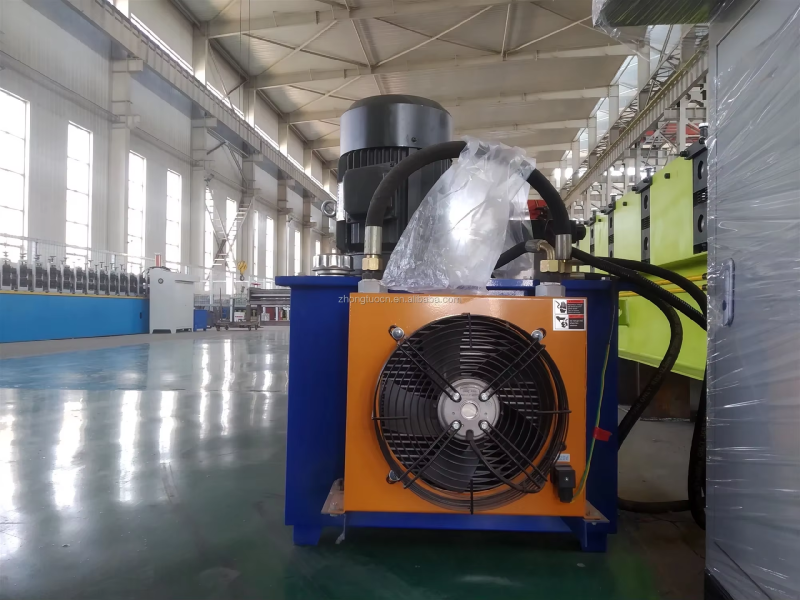

Hydraulic station motor:5.5KW.
Hydraulic oil:46# hydraulic oil.
With cooling fan for long service.
