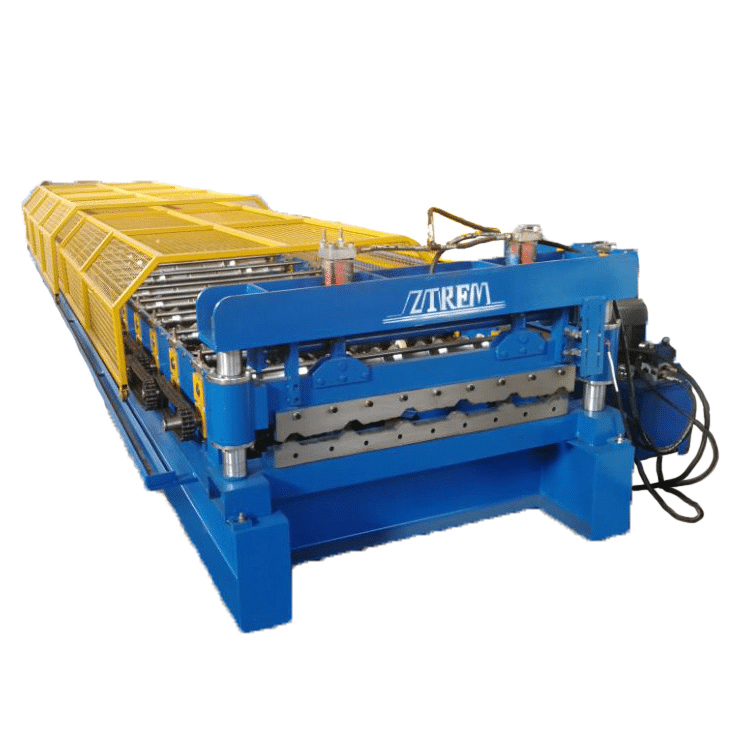

High QualityTrapezoidal roofing sheet machine.
Production Description :
This trapezoidal roofing sheet machine is specially designed for efficient production of high-quality color steel tiles. It features a compact and ingenious structure, with the main frame made of high-strength materials to ensure stability and durability even under long-term and high-intensity operation. The rollers and wheels work in perfect harmony, precisely shaping the trapezoidal profile of the color steel tiles, with each bend uniform and smooth, ensuring impeccable quality in the tile formation. The cutting device is extremely sharp, providing neat and smooth cuts that require no secondary processing. Moreover, the equipment is extremely easy to operate, allowing even novices to quickly get the hang of it. Coupled with an intelligent control system, it can flexibly adjust production parameters to meet the needs of different projects. Whether it's small-scale construction projects or large-scale industrial projects, it can handle them with ease, providing a solid guarantee for your building material production.
Technical features:
Highly automated advantages: The trapezoidal color steel sheet equipment demonstrates outstanding highly automated features during the production process. From the loading of raw materials, the rolling and shaping to the cutting and stacking of the finished products, all these steps can be automatically completed in a continuous and coherent manner through preset programs. No excessive manual intervention is required, which not only reduces the cumbersome manual operation process but also reduces the uncertainty caused by human operational differences, making the entire production process more coherent and standardized, and significantly enhancing the convenience of production.
Production efficiency advantages: This equipment, with its optimized mechanical structure and intelligent operation logic, can achieve a continuous and uninterrupted production mode. During the production process, the various links are closely connected, avoiding unnecessary downtime, thus being able to produce more trapezoidal color steel sheet products within a unit time, effectively improving the overall production efficiency.
Product quality stability advantages: The trapezoidal color steel sheet equipment adopts precise mechanical transmission and control systems, which can conduct production operations strictly according to the set parameters, ensuring that each piece of color steel sheet maintains a high degree of consistency in terms of size accuracy, shape regularity, and surface quality. It is not affected by factors such as human operational experience and condition, fundamentally ensuring the stability of product quality, and providing a reliable guarantee for subsequent use.
Product Attributes：
Formed Material | PPGI，GI，AI，GL | Thickness：0.3-0.6mm Width：1000mm/1250mm(As per profile drawing) |
Decoiler | Hydraulic automatic decoiler | Manual decoiler (will give you as free) |
Main body | Roller station | 18 rows(As your requirement) |
Diameter of shaft | 80mm solid shaft | |
Material of rollers | 45#steel ,hard chrome plated on the surface | |
Machine body frame | 350#H steel | |
Drive | Chain trransmission | |
Dimension（L*W*H） | 10500*1650*1200（customize） | |
Cutter | Automatic | cr12mov material ,no scratches,no deformation |
Power | Motor Power | 7.5KW |
Hydraulic system power | 5.5KW | |
Voltage | 380V 50HZ 3Phase | As your requirement |
Control system | Electric Box | Customized(famous brand) |
Language | English(Support multiple languages) | |
PLC | Automatic production of the whole machine .Can set batch, length,quantity,etc. | |
Forming speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material |
Product Details:

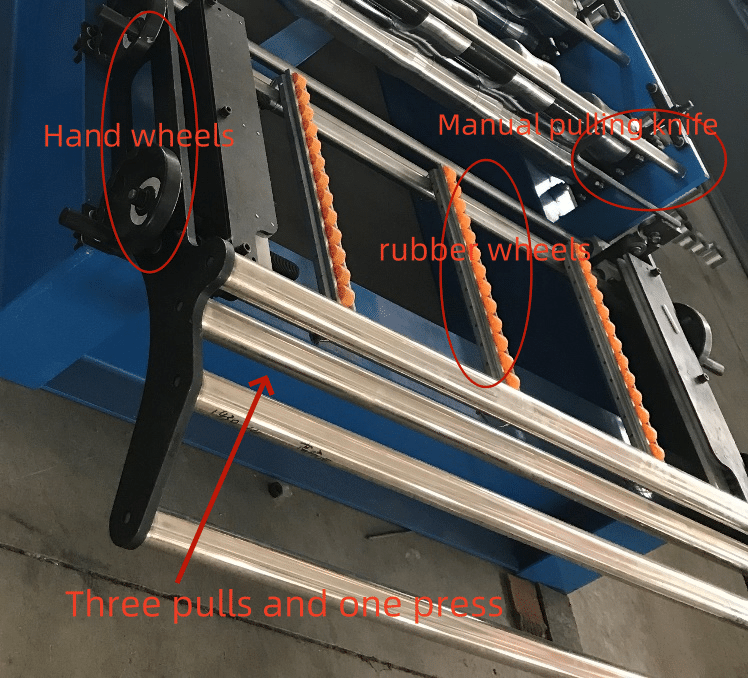

1. Feeding devices:
1).Three pulls and one press：With several support rollers，to feed the material more smoothly.
2).Rubber wheels:prevent the material surface from being damaged ,and feed the material more easily and quickly.
3).Hand wheels:to adjust the feeding size,more conveniently
4).Manual pulling knife:up layer and down layer with manual cutter to cut feed material more easily.

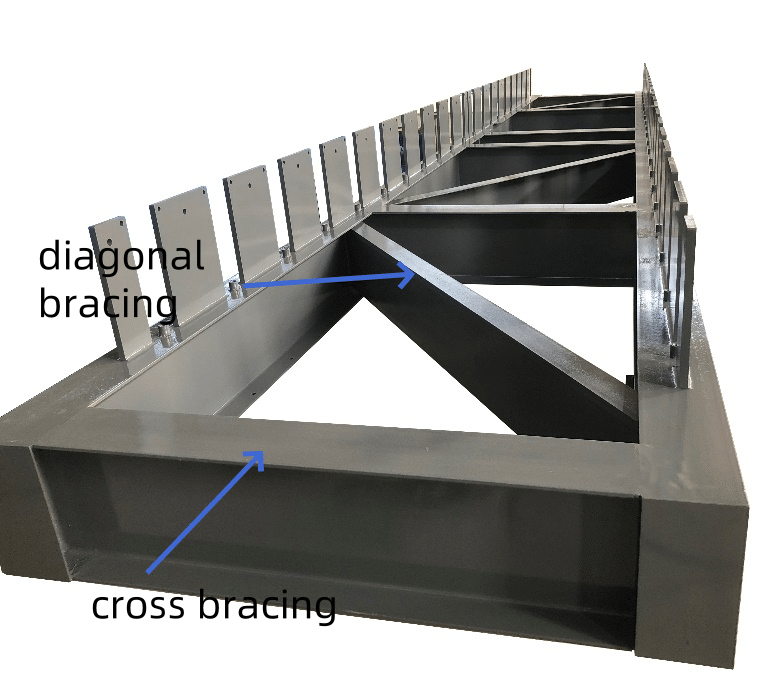

2.The basic frame with diagonal bracing and cross bracing, it will make our machine works more stable.

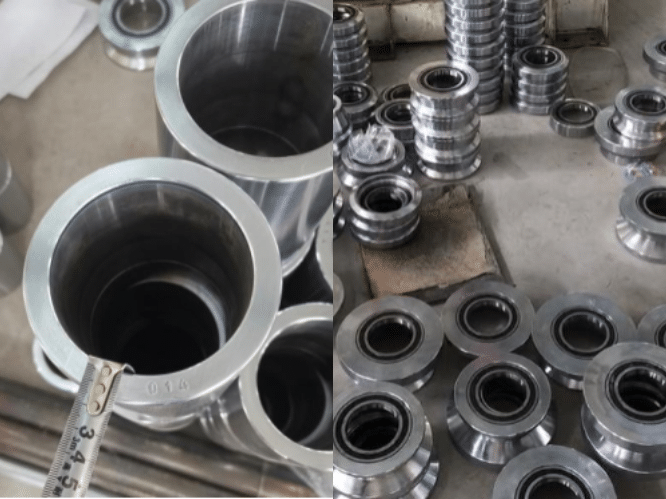

3.The spacers and rollers.
1).For all of our rollers, spacers and shafts, we all mark numbers on it, it’s very convenient for you to maintenance the machine in the future.
2).There is ball bearings inside the rollers, to make all the rollers run at same speed when machine is run.
3).Because the rollers inside with ball bearings, our rollers is bigger than others, so work speed is faster.
4). All rollers and spacers, we do 0.3mm thickness chrome coating, to increase hardness and anti-rust. Some factories maybe use 0.1-0.2mm chrome coating.

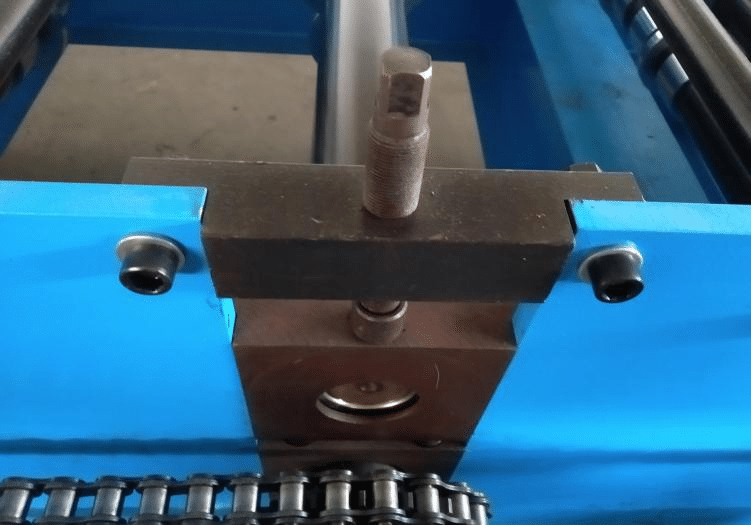

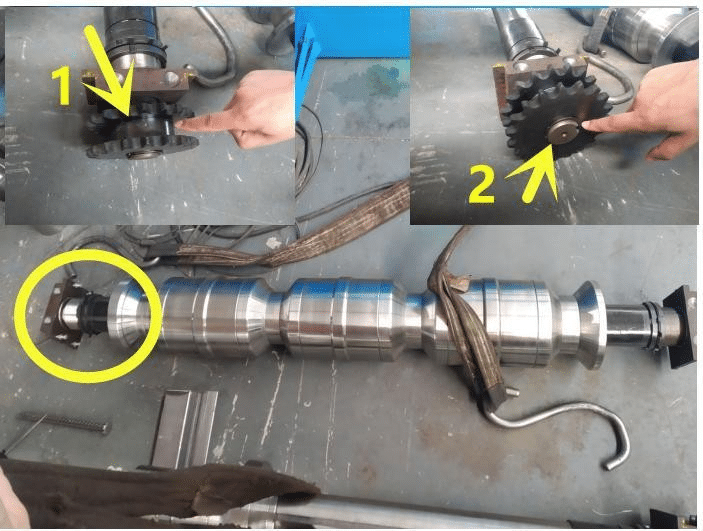

4.The shaft part: We make grooves to inset two nuts and cushion on the shaft. To avoid shafts loosing when machine works. Due to this design, shafts will be fixed more and more firm when it is working.

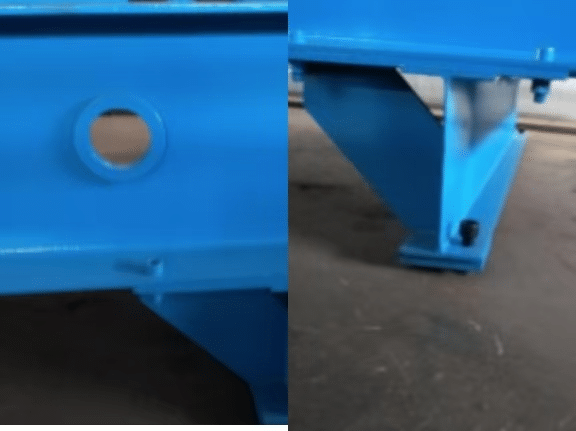

5.The machine middle structure add a hole for hoist,and the foot can be adjust in a range.
6. The nut added gasket to ensure when running the rollers can't move, finally ensure the sheet profile is well made but not off tracking.

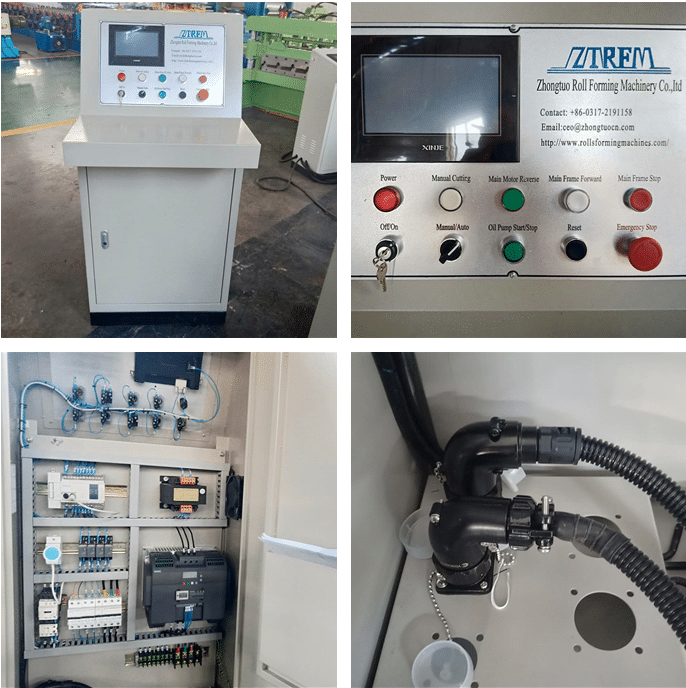

7.The PLC control bos buttons are Schneider brand.Our PLC control box material is very thick, the cost will higher than other factory, just for provide better quality machine for you!
Control station with aviation plug, more easy to install the machine.
