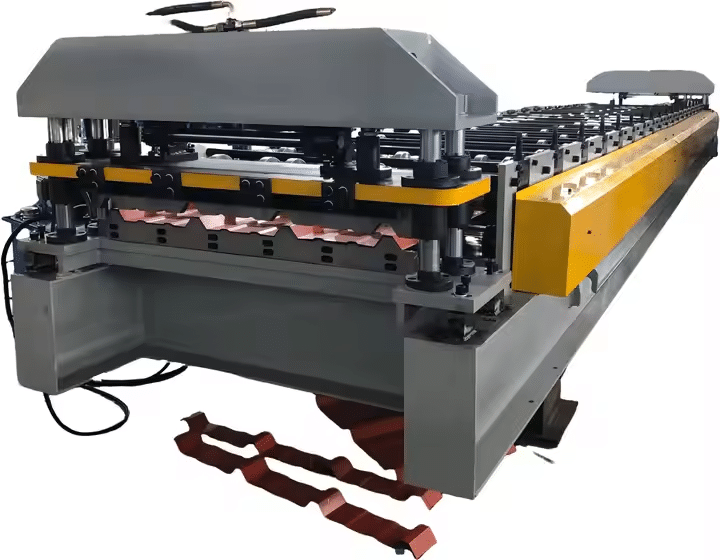

Mental Roof PBR R Panel Roll Forming Machine sells well in USA
Popular product:
Product Description:
The R-Panel/PBR Panel forming machine is a highly specialized cold roll forming equipment. Its core function is to continuously and high-speed cold bend coiled colored coated steel plates (color steel coils), galvanized steel plates, or other metal coils into architectural metal roof panels or wall panels with specific cross-sectional shapes (i.e., R-Panel/PBR profiles) through a series of precision forming roll sets.
Product Attributes:
| Formed Material | PPGI,PPGL | Material Thickness:0.3-0.8mm Width:customized |
| Decoiler | Hydraulic decoiler(optional) | Manual decoiler(will give you as free) |
| Main body | Roller station | 18 rows (As your requirement) |
| Diameter of shaft | 80mm solid shaft | |
| Material of rollers | High Grade 45# Forged Steel，hard chrom plated on the surface (Chrome Thickness:mm) | |
| Drive | gear and Double Chain transmission | |
| Cutter | Automatic | cr12movmaterial ,no scratches,no deforn |
| Power | Motor Power | 7.5KW |
| Hydraulic system power | 4.5KW | |
| Voltage | 380V 50Hz 3Phase | As your requirement |
| Control system | PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Forming Speed | 15-20m/min | The speed is adjustable |
Performance Characteristics:
1.Efficiency: High-speed continuous forming combined with automated processes significantly increases output per unit time.
2.Precision: Precision rolling rolls and high-precision fixed-length cutting systems ensure strict consistency in the cross-sectional dimensions and length tolerances of the plates.
3.Stability: The heavy-duty and robust structure, together with high-quality core components, guarantees long-term continuous and reliable operation of the equipment, with strong anti-deformation capability.
4.High automation: Integrated with a PLC intelligent control system, it realizes highly automated operation from parameter setting to production monitoring, reducing manual intervention.

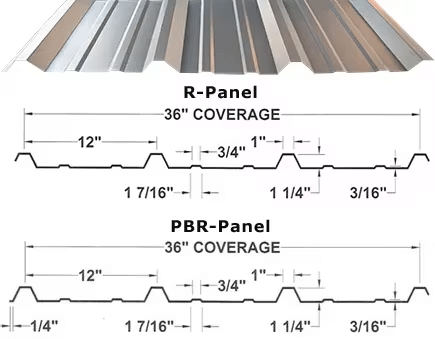

Pattern diagram:

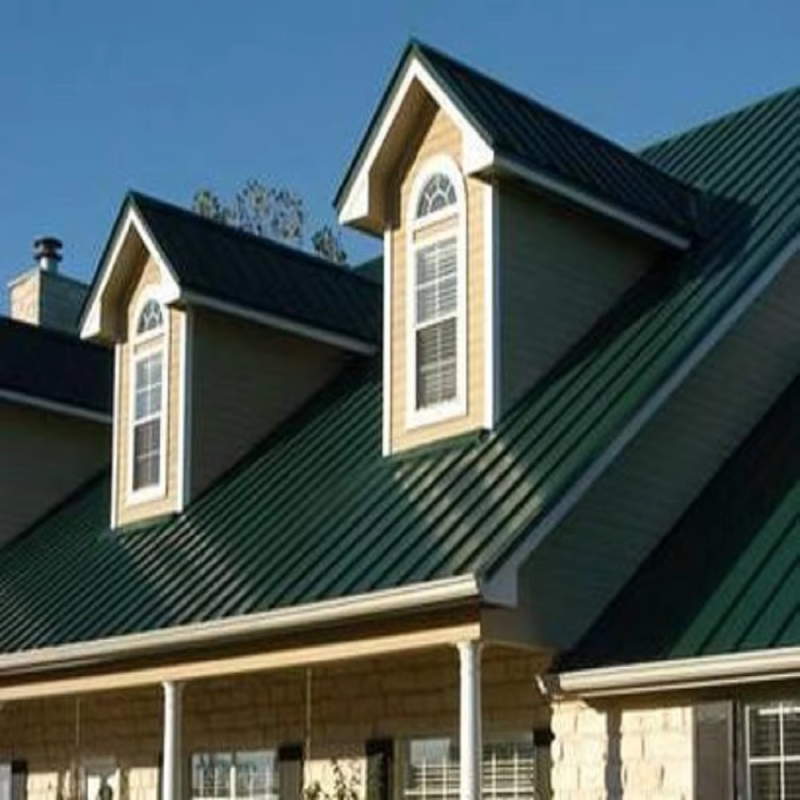

Finished Product image:

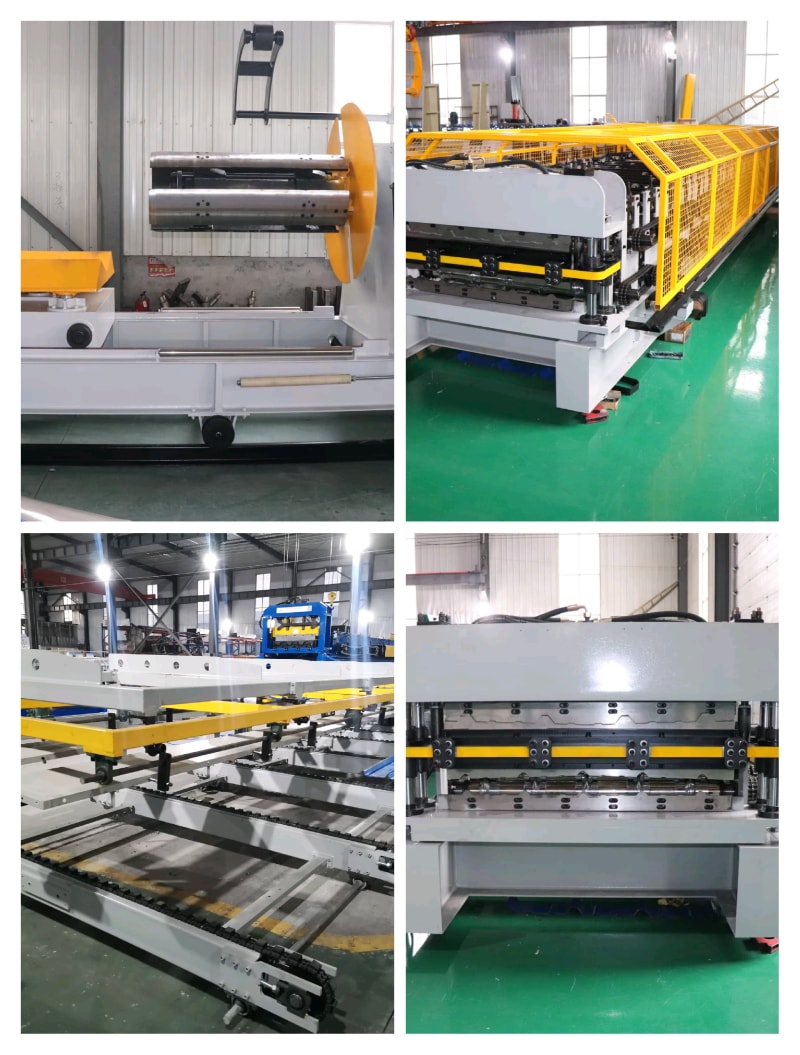

Products Display:
