Trapezoidal roofing sheet machine

Hot Selling Trapezoid Roll Forming Machine

Hot Selling Trapezoid Roll Forming Machine

Description:Trapezoid roll forming machine is mainly used for roof decoration, exterior wall decoration of civil and industrial plants, and strengthening the roof strength. When used on the roof, it can make the roof more beautiful and strengthen rigid waterproofing; when used on the exterior wall, it can make the entire plant more beautiful, prevent the exterior wall skin from peeling off, and provide cold protection and heat insulation.

Advantages: Light weight, good corrosion resistance, high strength, fireproof, beautiful appearance and recyclable. Generally, galvanized and galvalume materials are used to ensure that they do not fade for 10-15 years. Moreover, the installation is flexible and quick.

This is drawing for your reference:

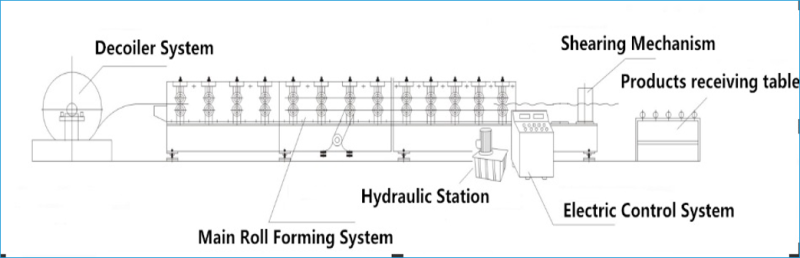

Work flow:

The production line is composed by the following elements:

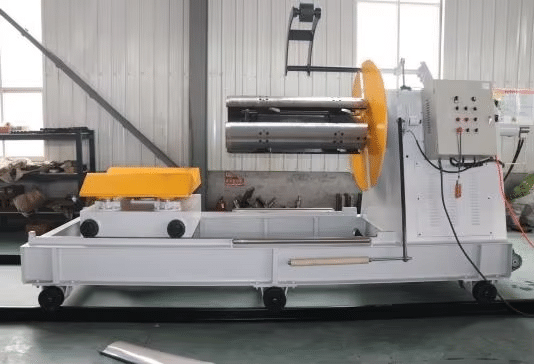

Ⅰ.5 Ton Hydraulic de-coiler：Work type: active type Structure: welding by the steel plates and profiled bar. Usage: To support the coils and doing uncoiling. Loading capacity:8 tons

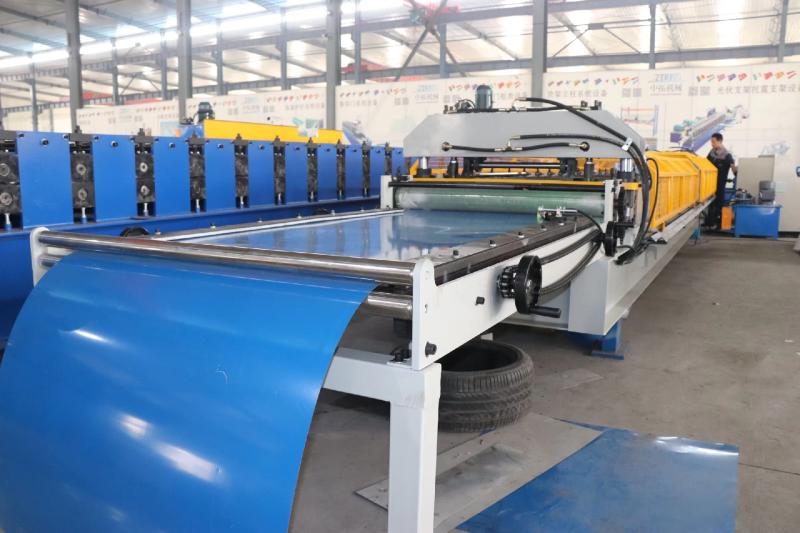

Ⅱ.Feeding devices:1.With several support rollers, to feed the material more smoothly 2.Hand wheels :to adjust the feeding size, more conveniently. 3.Manual pulling knife：up layer and down layer with manual cutter to cut feed material more easily.

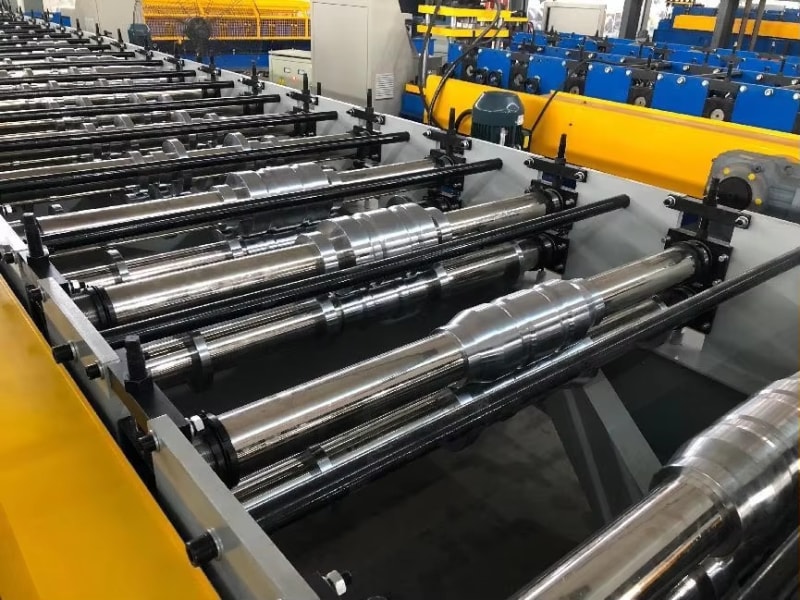

Ⅲ.Roll forming:

1.rollers thick chromed good hardness for long service time.

2. Each roller has number and with keynotes, it can fix on the shaft stablely.

3.gear and double chain,stable

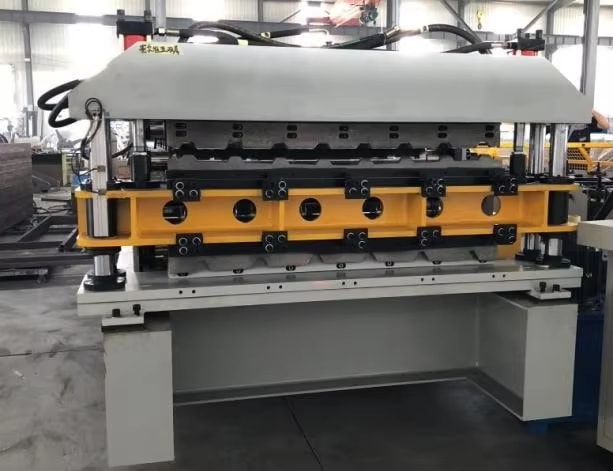

Ⅳ.Hydraulic Cutting:

Cast steel oil pipe ensures cleanliness,lubrication and oil injection ensure durability.

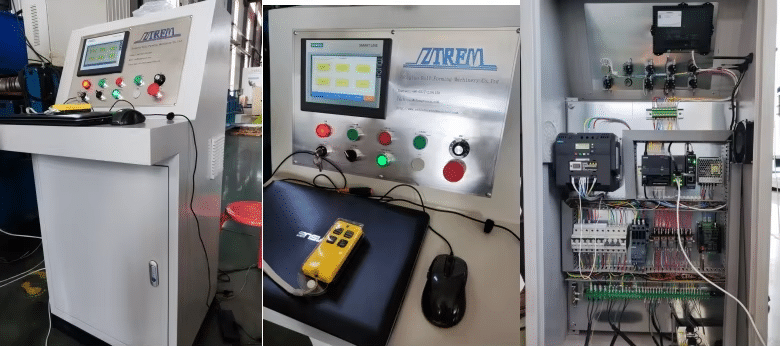

Ⅴ.PLC control system:

When you get the machine, just plug in, then can run the machine very easily, no need other installation.

Here are some parameter of Trapezoid Roll Forming Machine for your reference:

Roll forming machine:
